Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A223S1CWZG-M8SWITCH TOGGLE DPDT 6A 125V |
2,025 | 5.86 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A232K12KZQSWITCH TOGGLE SP3T 6A 125V |
2,024 | 5.86 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | On-On-On | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A232P32YAQSWITCH TOGGLE SP3T 6A 125V |
3,045 | 6.17 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle | SP3T | On-On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
5236MIWRADGK16TOGGLE SWITCH 5000 MINIATURE |
4,156 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
7411K12ZQESWITCH TOGGLE DP3T 5A 120V |
2,643 | 5.50 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
2-1520228-4SWITCH TOGGLE DPST 20A 125V |
3,749 | 3.89 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC/DC) | 125 V | 125 V | Standard Round | 16.66mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | - | - |
|
|
631NT91-7SWITCH TOGGLE SPDT 10A 125V |
1,815 | 5.78 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
32NT91-50SWITCH TOGGLE DPDT 10A 125V |
4,828 | 8.87 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | DPDT | On-On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
5646ADB2VX408TOGGLE SWITCH 5000 MINIATURE |
1,696 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|

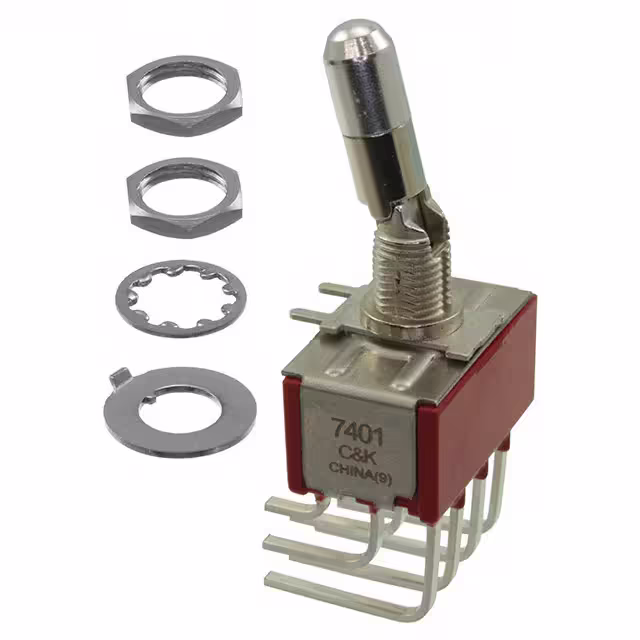

7401K2AV2QESWITCH TOGGLE 4PDT 5A 120V |
4,998 | 6.78 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A126K12KCG-M8SWITCH TOGGLE SPDT 6A 125V |
2,904 | 5.98 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223S2CXZGSWITCH TOGGLE DPDT 6A 125V |
2,523 | 5.98 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
5646ABK2VSWITCH TOGGLE DPDT 6A 125V |
2,904 | 5.26 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 14.75mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Front Panel Sealing | -40°C ~ 85°C |
|

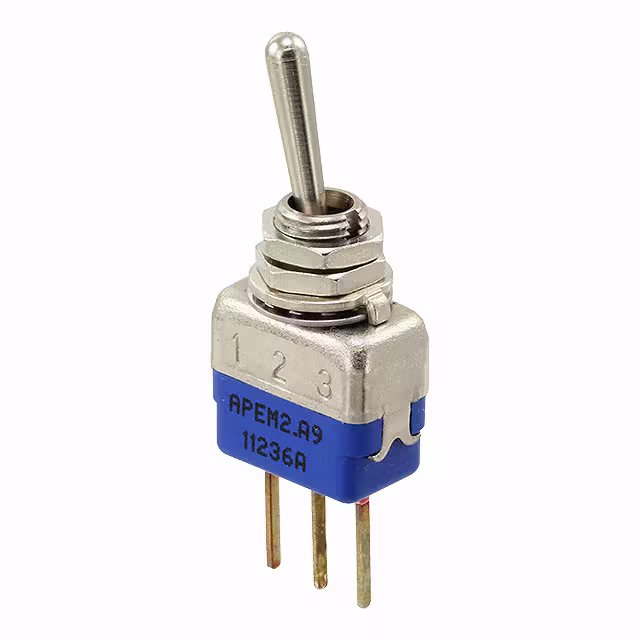

11236ASWITCH TOGGLE SPDT 4A 125V |
1,954 | 5.53 |
|
Datasheet |
11000 | Bulk | Active | Panel Mount | SPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
32NT92-1TOGGLE SWITCH |
4,056 | - |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
STB2E4-58SWITCH TOGGLE DPST-NO 16A 24V |
1,418 | 8.25 |
|
- |
ST | Bulk | Active | Panel Mount | DPST-NO | Off-Mom | 16A (DC) | - | 24 V | Standard Round | 14.25mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
1-1520237-1SWITCH TOGGLE DPST 16A 125V |
1,923 | 5.50 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | On-Off | 16A (AC) | 125 V | - | Standard Round | 16.28mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
55046-04SWITCH TOGGLE DPDT 15A 24V |
4,360 | 4.52 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (DC) | - | 24 V | Standard Round | 38.10mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
HM254-73/HDW ASSMSWITCH TOGGLE 3PDT 15A 125V |
3,035 | 5.68 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
31NT391-7-C02-NHTOGGLE SWITCH |
1,092 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
