Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A123K12KAV2GSWITCH TOGGLE SPDT 6A 125V |
1,146 | 6.13 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A123K12KCG-M8SWITCH TOGGLE SPDT 6A 125V |
2,455 | 5.46 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A123L21D9CQSWITCH TOGGLE SPDT 6A 125V |
3,839 | 5.46 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 13.97mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A221M1D9V30GSWITCH TOGGLE DPDT 6A 125V |
2,828 | 5.46 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223P31YAV2QSWITCH TOGGLE DPDT 6A 125V |
1,623 | 6.13 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A232P31D9AQSWITCH TOGGLE SP3T 6A 125V |
2,634 | 6.13 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SP3T | On-On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|

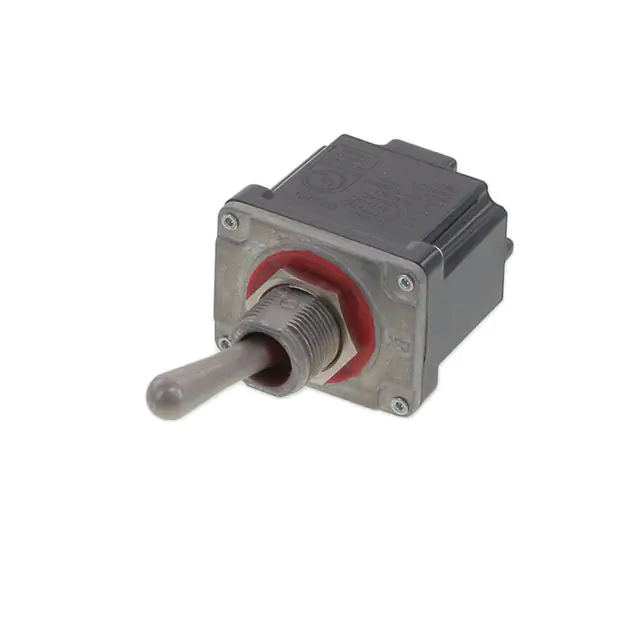

PT202SSQSWITCH TOGGLE DPST 15A 277V |
3,301 | 6.15 |
|
Datasheet |
PT | Tray | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
|
5239Y6ADKB3VX386TOGGLE SWITCH 5000 MINIATURE |
3,601 | - |
|
Datasheet |
5000 | Bulk | Active | Through Hole | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
31NT391-1-C02SWITCH TOGGLE SPDT 15A 125V |
3,106 | 5.58 |
|
- |
NT | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Flatted | 22.35mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
31NT391-8-C02-NHTOGGLE SWITCH |
3,724 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5642ADGK2TOGGLE SWITCH 5000 MINIATURE |
4,304 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5648ADGK4NTOGGLE SWITCH 5000 MINIATURE |
1,349 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
S822/C-AT401ASWITCH TOGGLE DPDT 30A 125V |
4,834 | - |
|
- |
S | Bulk | Obsolete | Panel Mount | DPDT | On-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
A232P33Y5CBSWITCH TOGGLE DPDT 0.5VA 28V |
3,123 | - |
|
- |
A | Bulk | Active | Panel Mount | DPDT | On-On-On | 0.5VA (AC/DC) | 28 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | - | - |
|
|
5637MCDBTOGGLE SWITCH 5000 MINIATURE |
4,111 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
STA2E1-R8SWITCH TOGGLE DPST 16A 24V |
2,190 | 8.13 |
|
- |
ST | Bulk | Active | Panel Mount | DPST | On-Off | 16A (DC) | - | 24 V | Paddle | 22.35mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STA251-R8SWITCH TOGGLE DPST 15A 125V |
1,616 | 8.13 |
|
- |
ST | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Paddle | 22.35mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
A223K12KZBSWITCH TOGGLE DPDT 0.5VA 28V |
4,513 | 5.94 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A233T1TWZQSWITCH TOGGLE SP3T 6A 125V |
4,714 | 5.94 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | Splash Proof | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A223M1DABSWITCH TOGGLE DPDT 0.5VA 28V |
1,033 | 6.17 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
