Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2NT1-7-NHSWITCH TOGGLE DPDT 10A 125V |
3,105 | - |
|
- |
NT | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
MN42B2B1W01-AT4181SWITCH TOGGLE |
1,422 | - |
|
- |
M | Bulk | Active | Panel Mount | 4PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
3637NFULSWITCH TOGGLE SPDT 6A 125V |
4,795 | 4.84 |
|
Datasheet |
3600NF | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
|
|
5636ADGKBTOGGLE SWITCH 5000 MINIATURE |
2,712 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5236WAB2VX1115ULCSATOGGLE SWITCH 5000 MINIATURE |
2,174 | - |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
MN22LL2G30SWITCH TOGGLE |
1,736 | - |
|
- |
M | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|

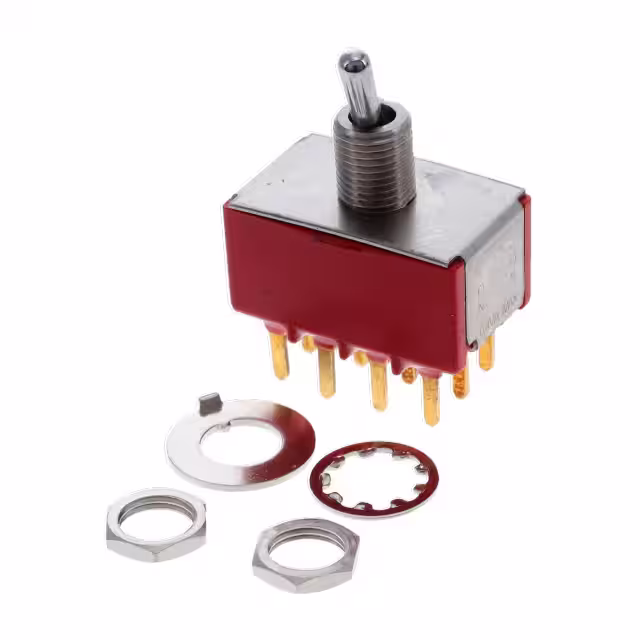

7401MDCBESWITCH TOGGLE 4PDT 0.4VA 20V |
1,659 | 4.76 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2MT1-1SWITCH TOGGLE DPDT 5A 28V |
3,045 | 7.13 |
|
Datasheet |
MT | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 5A (DC) | - | 28 V | Standard Round | 16.87mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 12.45mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
644H1RSWITCH TOGGLE SP3T 10A 250V |
1,159 | 3.91 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | Jumper needed to achieve triple throw | -20°C ~ 55°C |
|
|
7301K2CWZBESWITCH TOGGLE 3PDT 0.4VA 20V |
3,587 | 4.19 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7401SD9CBESWITCH TOGGLE 4PDT 0.4VA 20V |
1,459 | 4.14 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7401SYCBESWITCH TOGGLE 4PDT 0.4VA 20V |
3,535 | 4.14 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
641SNH/2TOGGLE SWITCH 600H HIGH POWER |
4,298 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
STD1E1-53/HDW ASSMSWITCH TOGGLE SPDT 16A 24V |
1,883 | 5.97 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | On-On | 16A (DC) | - | 24 V | Standard Round | 14.25mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
A121P32YZQSWITCH TOGGLE SPDT 6A 125V |
3,525 | 4.00 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A126S1Y9AV2GSWITCH TOGGLE SPDT 6A 125V |
2,975 | 4.68 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223M1D9AQSWITCH TOGGLE DPDT 6A 125V |
3,301 | 4.68 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223S1YWBSWITCH TOGGLE DPDT 0.5VA 28V |
2,579 | 4.00 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A227S1YCQSWITCH TOGGLE DPDT 6A 125V |
1,992 | 4.00 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A227T1TZQSWITCH TOGGLE DPDT 6A 125V |
1,223 | 4.24 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
