Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7201P1Y1ZQESWITCH TOGGLE DPDT 5A 120V |
4,816 | 3.47 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5246AB1VTOGGLE SWITCH 5000 MINIATURE |
4,920 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
MN25LL2W13BRACKET PC MOUNT MINIATURE TOGGL |
4,664 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5264TH1RABTOGGLE SWITCH 5000 MINIATURE |
3,563 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4P3T | On-On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5664TH2RCDBTOGGLE SWITCH 5000 MINIATURE |
2,822 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4P3T | Mom-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5664TH1RCDBTOGGLE SWITCH 5000 MINIATURE |
2,423 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4P3T | On-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5269CDBTOGGLE SWITCH 5000 MINIATURE |
2,651 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5264TH2RABTOGGLE SWITCH 5000 MINIATURE |
4,983 | - |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle | 4P3T | Mom-On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5246AB2VTOGGLE SWITCH 5000 MINIATURE |
3,966 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
M2032B2B1W01-AT401HBUSHING MOUNT MINIATURE TOGGLE |
2,644 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2032B2B1W01-AT401SBUSHING MOUNT MINIATURE TOGGLE |
1,304 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|

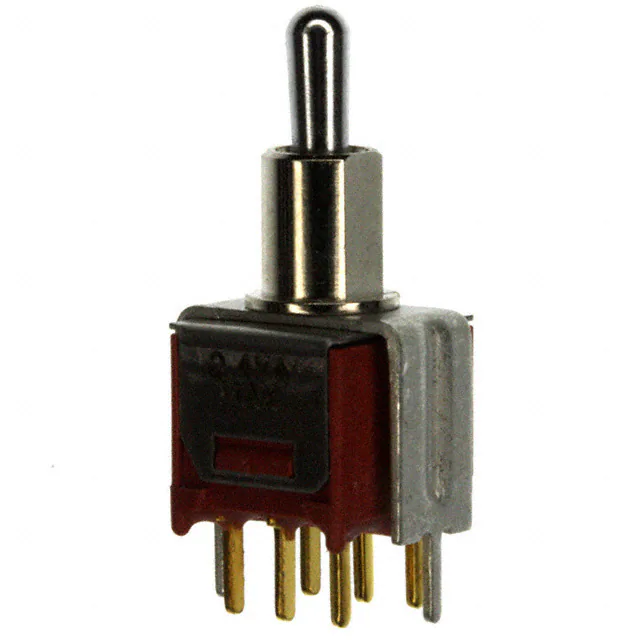

T211MH9V3BESWITCH TOGGLE SP3T 0.4VA 20V |
3,878 | 3.88 |
|
Datasheet |
T | Bulk | Obsolete | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
645NH/2SWITCH TOGGLE DPDT 10A 250V |
2,495 | 3.30 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | DPDT | On-Mom | 10A (AC) | 250 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
|
644NH/2SWITCH TOGGLE SP3T 10A 250V |
3,839 | 3.30 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | SP3T | On-On-On | 10A (AC) | 250 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Jumper needed to achieve triple throw | -20°C ~ 55°C |
|
|
LT-1561-612-012SWITCH TOGGLE SPDT 15A 125V |
2,712 | 3.57 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Amber/Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1561-613-012SWITCH TOGGLE SPDT 15A 125V |
1,042 | 3.57 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Green/Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1561-643-012SWITCH TOGGLE SPDT 15A 125V |
4,077 | 3.65 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Blue/Green | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5249AB3VTOGGLE SWITCH 5000 MINIATURE |
4,259 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
7213T2PZBESWITCH TOGGLE SP3T 0.4VA 20V |
4,063 | 3.59 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 15.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
A123M1D9AV2GSWITCH TOGGLE SPDT 6A 125V |
2,541 | 4.00 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
