Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN22LL4W03SWITCH TOGGLE |
3,311 | - |
|
- |
M | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
|
|
3546001N002TOGGLE SWITCH 3500 IP67 SEALED |
1,530 | - |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | On-On | 15A (DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
A232P12H3ZQSWITCH TOGGLE DPDT 6A 28V |
4,718 | - |
|
- |
A | Bulk | Active | Panel Mount | DPDT | On-On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 21.34mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | - | - |
|
|
2M1-3P3-TJ-BJ-VS51GESWITCH TOGGLE 3PDT 5A 125V |
1,999 | 3.50 |
|
- |
2M | Bulk | Active | Through Hole | 3PDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | - | - | Non-Illuminated | - | - | PC Pin | - | - | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7213P1Y4ZQESWITCH TOGGLE SP3T 5A 120V |
2,842 | 3.85 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
2GM91-78SWITCH TOGGLE DPDT 15A 125V |
3,212 | 3.61 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GM90-78SWITCH TOGGLE DPDT 15A 125V |
2,534 | 3.53 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GL90-78SWITCH TOGGLE DPDT 15A 125V |
2,036 | 3.61 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GL91-78SWITCH TOGGLE DPDT 15A 125V |
1,579 | 3.61 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
7401SY9CBESWITCH TOGGLE 4PDT 0.4VA 20V |
4,787 | 4.14 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1NT1-1-CSEALED OI SWITCH |
2,200 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2GM57-73SWITCH TOGGLE DPDT 15A 125V |
3,638 | 3.62 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | - | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5264TH1RCDBTOGGLE SWITCH 5000 MINIATURE |
2,590 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4P3T | On-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5264THCDBTOGGLE SWITCH 5000 MINIATURE |
1,035 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5264TH2RCDBTOGGLE SWITCH 5000 MINIATURE |
4,407 | - |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle | 4P3T | Mom-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5646AGTOGGLE SWITCH 5000 MINIATURE |
1,929 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|

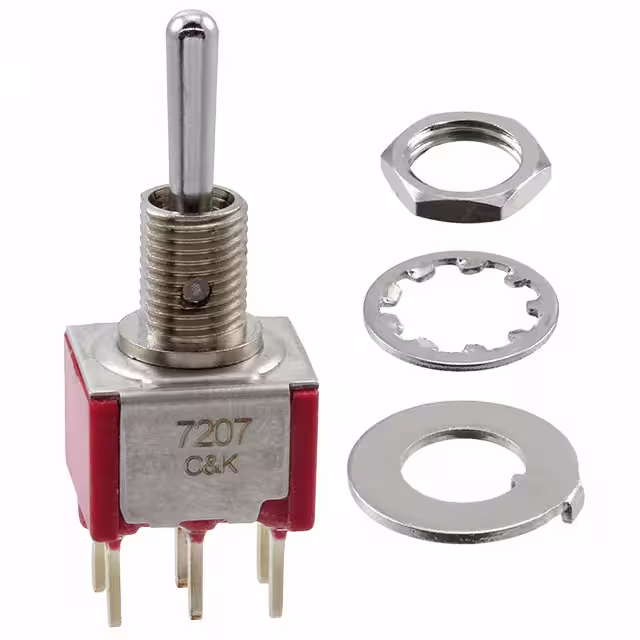

7207SPHCQESWITCH TOGGLE DPDT 5A 120V |
3,362 | 3.34 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
647NH/2SWITCH TOGGLE DPDT 10A 250V |
3,426 | 3.76 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 250 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
648NH/2SWITCH TOGGLE DPDT 10A 250V |
2,344 | 3.26 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 10A (AC) | 250 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
|
A121T11TXCQSWITCH TOGGLE SPDT 6A 125V |
4,441 | 3.32 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 11.89mm | Non-Illuminated | - | - | PC Pin | - | 15/32-32 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
