Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DK284-73/HDW ASSMSWITCH TOGGLE DPST 16A 125V |
2,999 | 3.30 |
|
- |
DK | Bulk | Active | Panel Mount | DPST | On-Off | 16A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
2GL04-73SWITCH TOGGLE DPDT 20A 250V |
4,372 | 3.30 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC) | 250 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GL724-73SWITCH TOGGLE DPDT 20A 125V |
3,861 | 3.30 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GL54-78/2 HEXSWITCH TOGGLE DPDT 15A 125V |
1,191 | 3.30 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GM54-78SWITCH TOGGLE DPDT 15A 125V |
1,372 | 3.30 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GM74-73SWITCH TOGGLE DPDT 17A 125V |
2,287 | 3.30 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-Off-On | 17A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GL54-78/HDW ASSMSWITCH TOGGLE DPDT 15A 125V |
2,319 | 3.30 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GL74-73SWITCH TOGGLE DPDT 17A 125V |
3,736 | 3.30 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-On | 17A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
DK284-73/POLYSWITCH TOGGLE DPST 16A 125V |
2,724 | 3.30 |
|
- |
DK | Bulk | Active | Panel Mount | DPST | On-Off | 16A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
2GM54-78/HDW ASSMSWITCH TOGGLE DPDT 15A 125V |
1,411 | 3.30 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GM0473SWITCH TOGGLE DPDT 20A 250V |
1,884 | 3.30 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC) | 250 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
6GC5B-NBL9SWITCH TOGGLE SPDT 15A 125V |
4,186 | 3.30 |
|
- |
G | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 15A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
MTA206SPCSWITCH TOGGLE DPDT 6A 125V |
2,280 | 3.71 |
|
Datasheet |
MTA Green | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
7209L1PH3AV2QESWITCH TOGGLE DPDT 5A 120V |
1,842 | - |
|
Datasheet |
7000 | Tray | Obsolete | Panel Mount, Right Angle, Vertical | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 15.75mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN24SS2G45ANGLE PC MOUNT MINIATURE TOGGLE |
1,372 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN24SS2G30ANGLE PC MOUNT MINIATURE TOGGLE |
4,335 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LT-1535-410-012SWITCH TOGGLE SPST-NO 15A 125V |
4,558 | 3.30 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Red | 12 VAC/DC | Wire Leads | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
M2013B2B1G01/U-AT401ABUSHING MOUNT MINIATURE TOGGLE |
1,077 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|

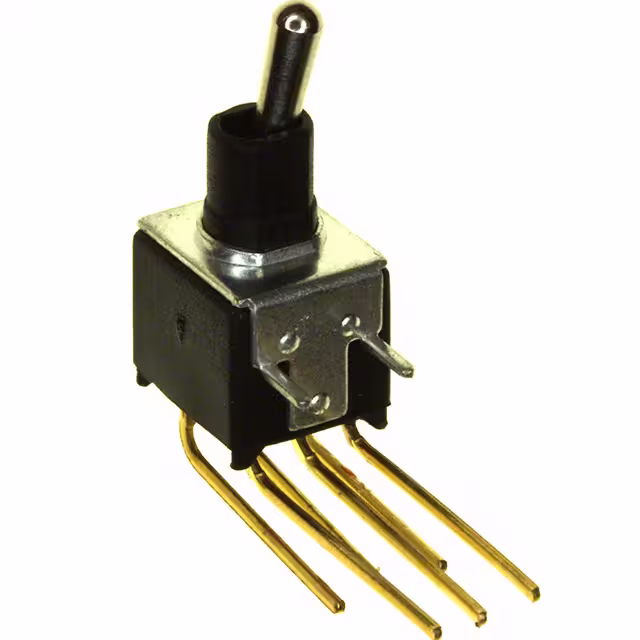

TL42W005000SWITCH TOGGLE DPDT 0.4VA 20V |
4,788 | 3.27 |
|
Datasheet |
TL | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5647ABKSWITCH TOGGLE DPDT 6A 125V |
1,263 | 3.12 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Front Panel Sealing | -40°C ~ 85°C |
