Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5636ADGTOGGLE SWITCH 5000 MINIATURE |
4,339 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|

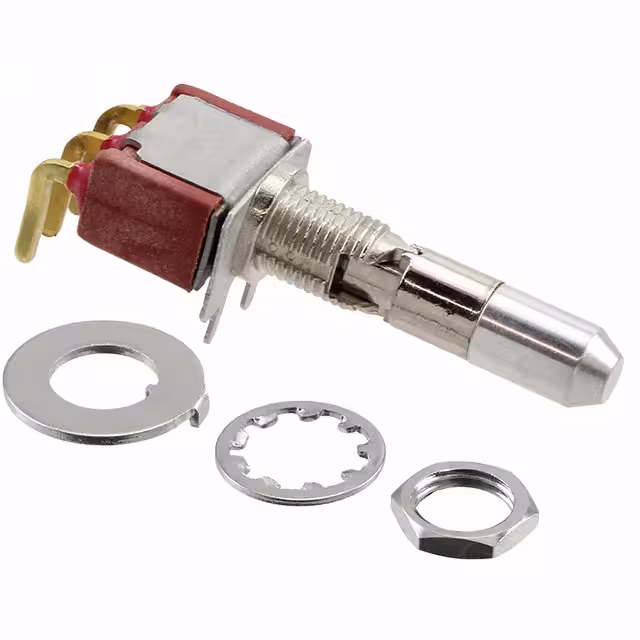

7103K12A2BESWITCH TOGGLE SPDT 0.4VA 20V |
2,531 | 3.14 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5639CDB3VTOGGLE SWITCH 5000 MINIATURE |
4,508 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
160H-A-62SWITCH TOGGLE SPST 10A 125V |
4,522 | 3.36 |
|
- |
110 | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC) | 125 V | - | Standard Round | 12.70mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|

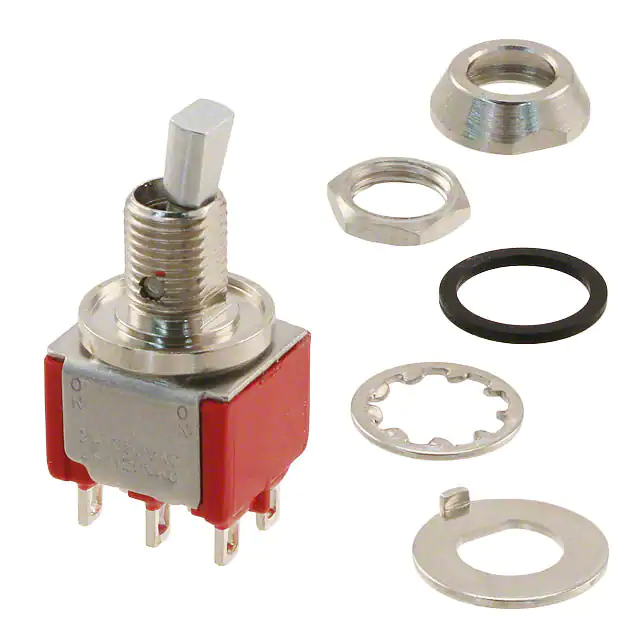

7201P4CWZQESWITCH TOGGLE DPDT 5A 120V |
4,086 | 3.21 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7401SD9V2BESWITCH TOGGLE 4PDT 0.4VA 20V |
1,866 | 3.69 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-3P4-T8-B0-VS61GESWITCH TOGGLE 3PDT 5A 125V |
4,070 | 3.22 |
|
- |
2M | Bulk | Active | - | 3PDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Anti-Rotation | 17.50mm | Non-Illuminated | - | - | - | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
LT-1541-701-012SWITCH TOGGLE SPDT 15A 125V |
1,756 | 3.36 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1541-713-012SWITCH TOGGLE SPDT 15A 125V |
3,568 | 3.29 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Green/Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1561-701-012SWITCH TOGGLE SPDT 15A 125V |
3,575 | 3.29 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1561-713-012SWITCH TOGGLE SPDT 15A 125V |
2,171 | 3.36 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Green/Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1561-711-012SWITCH TOGGLE SPDT 15A 125V |
3,131 | 3.36 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
7303P3D9AQESWITCH TOGGLE 3PDT 5A 120V |
4,143 | 3.21 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle | 3PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST4DP10DT2C1SWITCH TOGGLE DPDT 20A 125V |
2,323 | 3.59 |
|
Datasheet |
ST4 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 20A (AC/DC) | 125 V | 30 V | Flatted | 22.20mm | Non-Illuminated | - | - | Quick Connect - 0.187" (4.7mm) | Circular - 12.00mm Dia | 15/32-32 | IP68 - Dust Tight, Waterproof | - | -10°C ~ 55°C |
|
|
2GK05-78SWITCH TOGGLE DPST 20A 250V |
2,186 | 3.37 |
|
- |
G | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC) | 250 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
T103KABESWITCH TOGGLE SPDT 0.4VA 20V |
2,959 | 3.56 |
|
Datasheet |
T | Tray | Active | Panel Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 16.26mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
LT-1525-401-012SWITCH TOGGLE SPST-NC 15A 125V |
3,240 | 3.30 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST-NC | On-Mom | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Red | 12 VAC/DC | Wire Leads | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GL54-78SWITCH TOGGLE DPDT 15A 125V |
2,325 | 3.30 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GL54-73/728-15946SWITCH TOGGLE DPDT 15A 125V |
4,903 | 3.31 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
DK284-73/3HEXSWITCH TOGGLE DPST 16A 125V |
4,542 | 3.30 |
|
- |
DK | Bulk | Active | Panel Mount | DPST | On-Off | 16A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
