Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

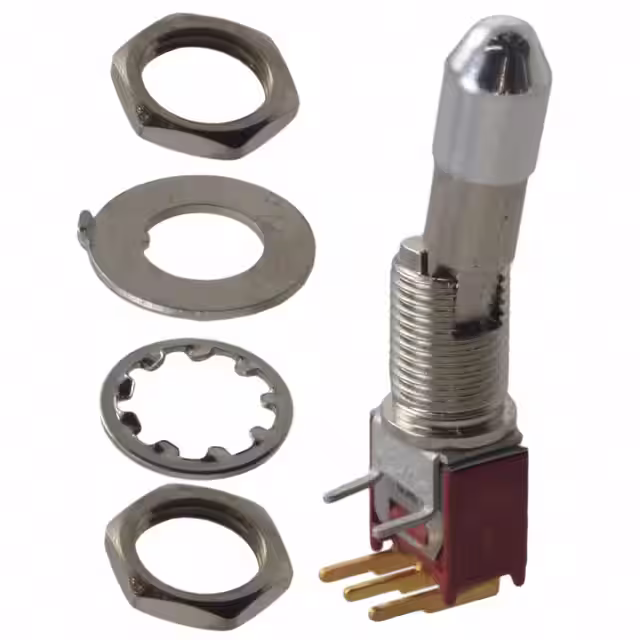

T101KABESWITCH TOGGLE SPDT 0.4VA 20V |
3,468 | 3.58 |
|
Datasheet |
T | Tray | Active | Panel Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 16.26mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5648AB9SWITCH TOGGLE DPDT 6A 125V |
3,372 | 2.60 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
7101P3YZBE22SWITCH TOGGLE SPDT 0.4VA 20V |
1,456 | 2.41 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
|
|
D22025HSWITCH TOGGLE DPDT 0.4VA 48V |
4,167 | 2.30 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|
|
M2044B2B3W03SWITCH TOGGLE DP3T 6A 125V |
3,466 | 2.86 |
|
- |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
5236MIWRADTOGGLE SWITCH 5000 MINIATURE |
3,832 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
6GA6S-73SWITCH TOGGLE SPST-NC 6A 125V |
3,759 | 2.63 |
|
- |
G | Bulk | Active | Panel Mount | SPST-NC | On-Mom | 6A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
34A3P11B1M7QTSWITCH TOGGLE 3PDT 5A 125V |
2,302 | 2.86 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle, Vertical | 3PDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
7207P3Y4ZGESWITCH TOGGLE DPDT 5A 120V |
3,232 | 2.95 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201SYCQISWITCH TOGGLE DPDT 5A 120V |
4,255 | 2.56 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Potted | -30°C ~ 85°C |
|
|
7201P4Y9ASESWITCH TOGGLE DPDT 5A 120V |
2,578 | 2.20 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

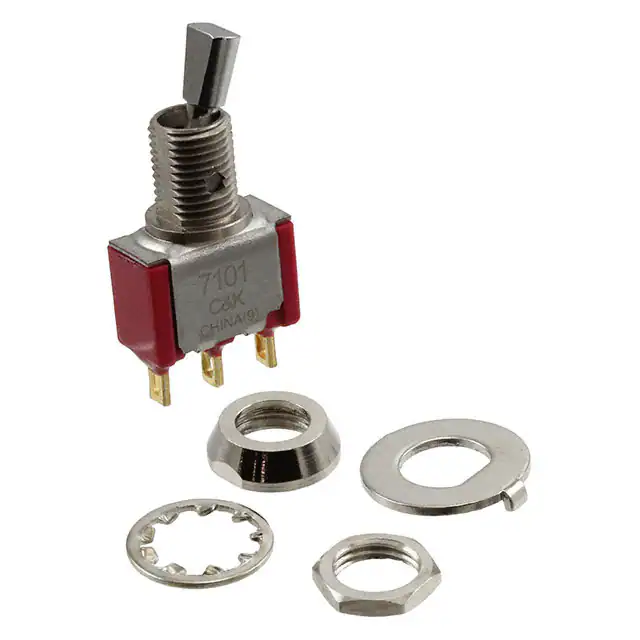

7101P4HZBESWITCH TOGGLE SPDT 0.4VA 20V |
2,066 | 2.48 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T102KZQESWITCH TOGGLE SPST 2A 120V |
3,127 | 2.86 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPST | On-Off | 2A (AC/DC) | 120 V | 28 V | Locking Lever | 16.26mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
LT-1510-115-125SWITCH TOGGLE SPST 15A 125V |
2,899 | 2.63 |
|
- |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Neon, Red | 125 VAC | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1511-120-125SWITCH TOGGLE SPST 15A 125V |
4,116 | 2.58 |
|
- |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Neon, Amber | 125 VAC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1511-410-125SWITCH TOGGLE SPST 15A 125V |
2,885 | 2.63 |
|
- |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1511-110-125SWITCH TOGGLE SPST 15A 125V |
1,077 | 2.58 |
|
- |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
637NHTOGGLE SWITCH 600H HIGH POWER |
3,728 | - |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
|
638NHTOGGLE SWITCH 600H HIGH POWER |
2,413 | - |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 15A (AC) | 125 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
|
7203P4D9AV2QESWITCH TOGGLE DPDT 5A 120V |
3,880 | 2.85 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
