Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7211P3D9V31QESWITCH TOGGLE SP3T 5A 120V |
3,596 | 2.99 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
2M1-4P1-T1-B1-M2WESWITCH TOGGLE 4PDT |
4,365 | 2.54 |
|
- |
2M | Bulk | Active | Panel Mount | 4PDT | On-On | - | - | - | Standard Round | 10.39mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5236WWAB9X445TOGGLE SWITCH 5000 MINIATURE |
2,038 | - |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|

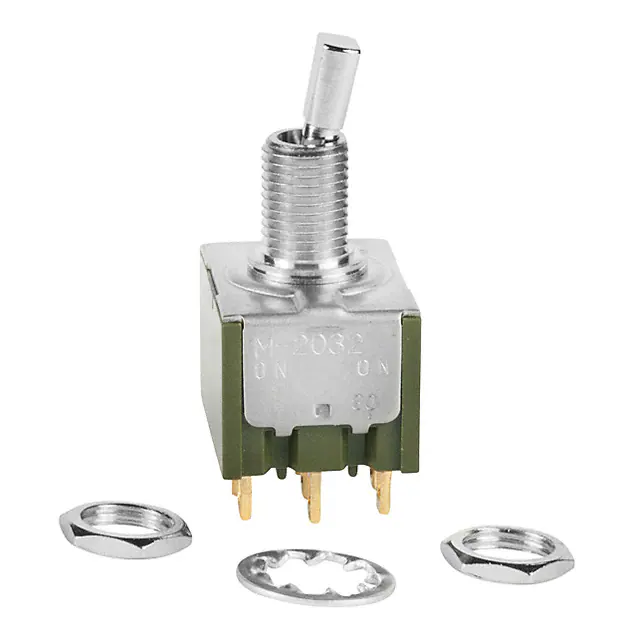

M2032E2D1G01SWITCH TOGGLE 3PDT 0.4VA 28V |
4,093 | 2.83 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MTG226PASWITCH TOGGLE SP3T 6A 125V |
1,353 | - |
|
Datasheet |
MTG Green | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 17.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.94mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -20°C ~ 80°C |
|
T201P3T9ABESWITCH TOGGLE DPDT 0.4VA 20V |
1,485 | 2.75 |
|
Datasheet |
T | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
S303/CULSWITCH TOGGLE SPDT 15A 125V |
2,368 | 2.27 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
7103K12CWAV2BE3SWITCH TOGGLE SPDT 0.4VA 20V |
2,383 | 2.15 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Red Anodized | -30°C ~ 85°C |
|
|
7101K2CRESWITCH TOGGLE SPDT 5A 120V |
3,814 | 2.50 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201TCWAV2BESWITCH TOGGLE DPDT 0.4VA 20V |
2,921 | 2.55 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
6GA5M-73SWITCH TOGGLE SPST-NC 15A 125V |
2,163 | 2.60 |
|
- |
G | Bulk | Active | Panel Mount | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
6GA5B-D-2B-B/HDW ASSMSWITCH TOGGLE SPST-NO 15A 125V |
1,055 | 2.60 |
|
- |
G | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | - | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
6GA5A-73SWITCH TOGGLE SPST-NO 15A 125V |
1,783 | 2.60 |
|
- |
G | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GK61-52SWITCH TOGGLE DPST 6A 125V |
4,752 | 2.60 |
|
- |
G | Bulk | Active | Panel Mount | DPST | On-Off | 6A (AC) | 125 V | - | Standard Round | 10.31mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5642CDKBTOGGLE SWITCH 5000 MINIATURE |
1,413 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5644TH2RCDBTOGGLE SWITCH 5000 MINIATURE |
3,809 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DP3T | Mom-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|

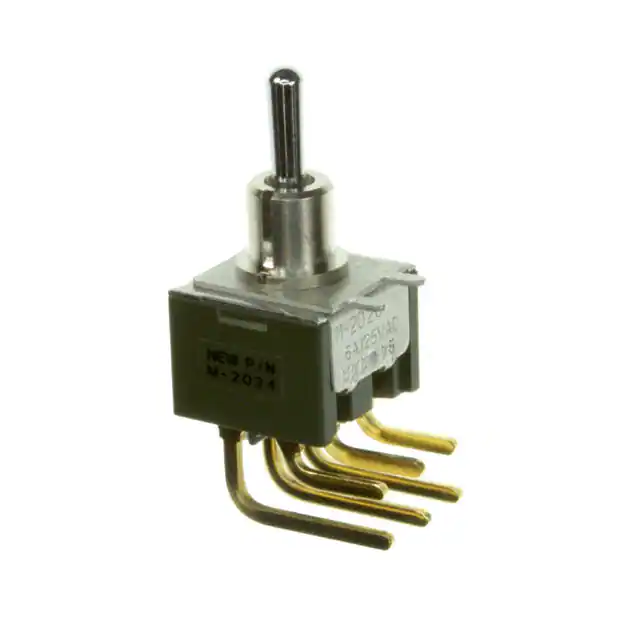

M2024S3A2A30SWITCH TOGGLE SP3T 6A 125V |
1,808 | 2.89 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 8.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
4446A22TOGGLE SWITCH 4400 6A 125V |
4,613 | - |
|
- |
4400 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC) | 125 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
|
M2022B2B1W03-VCSWITCH TOGGLE DPDT 6A 125V |
4,641 | 1.69 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | Red Cap | -30°C ~ 85°C |
|
E213MD9V91GESWITCH TOGGLE SP3T 7.5A 125V |
4,364 | 3.19 |
|
Datasheet |
E | Bulk | Active | Through Hole | SP3T | On-On-Mom | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
