Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7101MDAQESWITCH TOGGLE SPDT 5A 120V |
1,861 | 1.18 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5536ATOGGLE SWITCH 5000 MINIATURE |
2,045 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
7101SDZBESWITCH TOGGLE SPDT 0.4VA 20V |
3,642 | - |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
TL37W005000TOGGLE SWITCH SMT TL PCB MOUNT |
3,078 | - |
|
- |
TL | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|

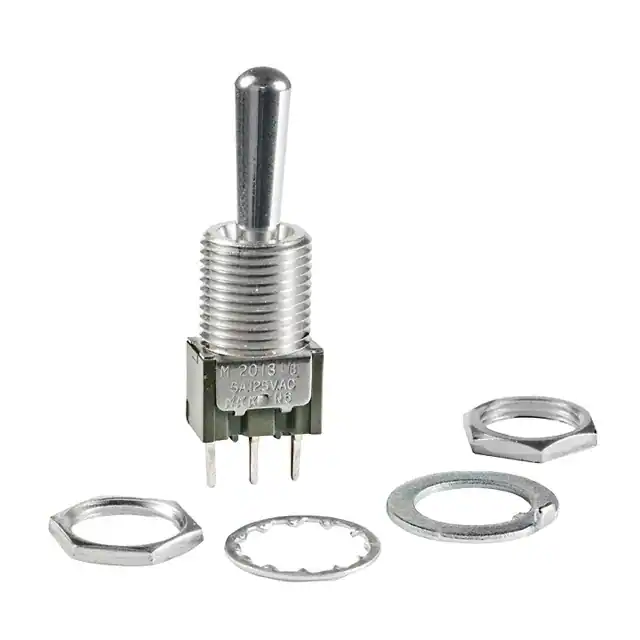

M2013B2B1W03SWITCH TOGGLE SPDT 6A 125V |
3,461 | 1.64 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN11SS1W01-CBSWITCH TOGGLE |
3,073 | - |
|
- |
M | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN11SS1W01-CASWITCH TOGGLE |
3,984 | - |
|
- |
M | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
M2011SS1W01/CUL-N983-BBSWITCH TOGGLE |
1,702 | - |
|
- |
M | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN12SS4W03SWITCH TOGGLE |
3,557 | - |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
|
|
MN11SS1W01-BBSWITCH TOGGLE |
3,679 | - |
|
- |
M | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN12SS4W01-BBSWITCH TOGGLE |
2,727 | - |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
|
|
MN12S2A2W40ANGLE PC MOUNT MINIATURE TOGGLE |
1,595 | - |
|
- |
M | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | - |
|

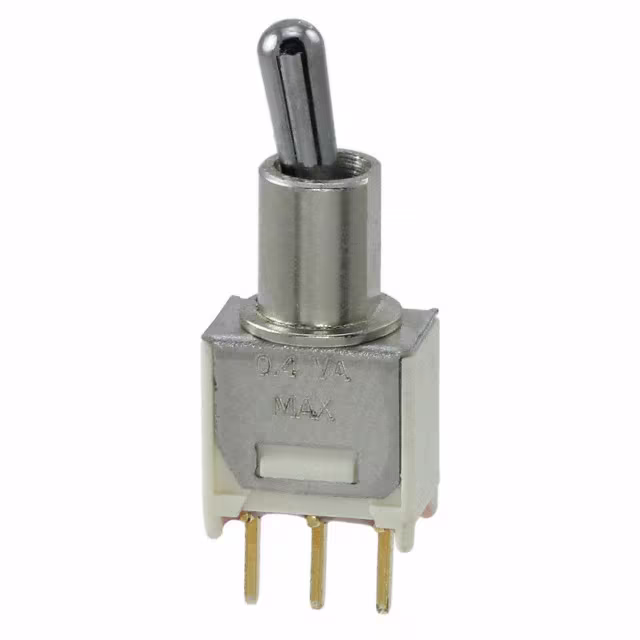

T108MH9CBESWITCH TOGGLE SPDT 0.4VA 20V |
2,798 | 1.90 |
|
Datasheet |
T | Tray | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2FA53-73/2 HEXSWITCH TOGGLE SPST 15A 125V |
4,202 | 1.50 |
|
- |
F | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
2GA50-D-2B-BSWITCH TOGGLE SPST 15A 125V |
3,618 | 1.50 |
|
- |
G | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | - | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2FA53-73/.187 TABSSWITCH TOGGLE SPST 15A 125V |
4,485 | 1.50 |
|
- |
F | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
2FA53-73/TABS/HDW ASSMSWITCH TOGGLE SPST 15A 125V |
2,569 | 1.50 |
|
- |
F | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
2GA51-73SWITCH TOGGLE SPST 15A 125V |
2,392 | 1.50 |
|
- |
G | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2FA53-73/HDW ASSMSWITCH TOGGLE SPST 15A 125V |
3,254 | 1.50 |
|
- |
F | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
2FA53-73/TABS/HDW BULKSWITCH TOGGLE SPST 15A 125V |
4,092 | 1.50 |
|
- |
F | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
