Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
34CMDP54B3M1RTSWITCH TOGGLE DPDT 0.4VA 20V |
2,279 | - |
|
Datasheet |
34C | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.97mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012ES2W03SWITCH TOGGLE SPDT 6A 125V |
2,633 | 1.02 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
8A2041-ZSWITCH TOGGLE DPDT 6A 125V |
3,900 | 0.82 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
7103SYCBESWITCH TOGGLE SPDT 0.4VA 20V |
3,665 | 1.45 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7107LYZBESWITCH TOGGLE SPDT 0.4VA 20V |
1,624 | 1.52 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 21.34mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7105SCWCQESWITCH TOGGLE SPDT 5A 120V |
4,128 | 1.78 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B22EPSWITCH TOGGLE DPDT 0.4VA 28V |
2,767 | 1.16 |
|
Datasheet |
B | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A15JH-JASWITCH TOGGLE SPDT 0.4VA 28V |
4,454 | 1.19 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
|
A11KP-AASWITCH TOGGLE SPST 0.4VA 28V |
4,966 | 1.15 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Actuator | -30°C ~ 85°C |
|
|
A11KP-ABSWITCH TOGGLE SPST 0.4VA 28V |
2,469 | 1.15 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | White Actuator | -30°C ~ 85°C |
|
|
A11KP-AFSWITCH TOGGLE SPST 0.4VA 28V |
4,450 | 1.15 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Green Actuator | -30°C ~ 85°C |
|
|
A11KP-AHSWITCH TOGGLE SPST 0.4VA 28V |
1,841 | 1.15 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Gray Actuator | -30°C ~ 85°C |
|
|
A11KP-BHSWITCH TOGGLE SPST 0.4VA 28V |
2,857 | 1.15 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Gray Actuator | -30°C ~ 85°C |
|
|
B25JPSWITCH TOGGLE DPDT 0.4VA 28V |
3,764 | 1.16 |
|
Datasheet |
B | Tray | Active | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

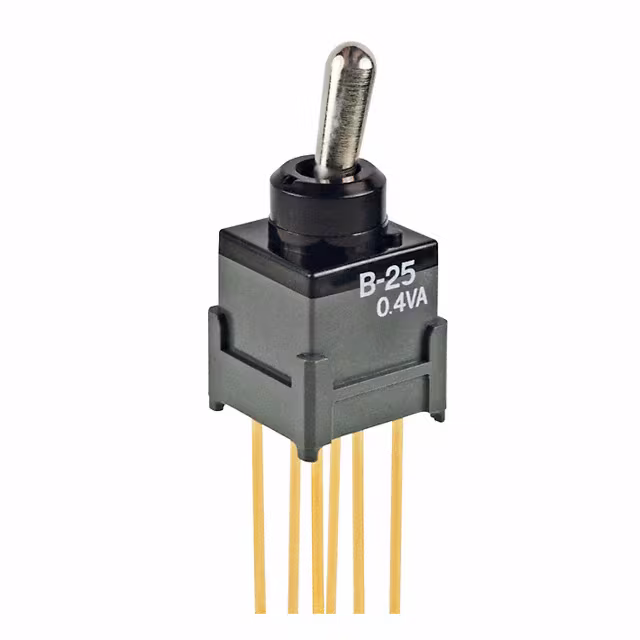

B25JWSWITCH TOGGLE DPDT 0.4VA 28V |
1,246 | 1.25 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A15HVSWITCH TOGGLE SPDT 0.4VA 28V |
1,940 | 1.28 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
B25AWSWITCH TOGGLE DPDT 0.4VA 28V |
4,963 | 1.25 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 8.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TL46P000200SWITCH TOGGLE DPDT 0.4VA 20V |
1,993 | 1.48 |
|
Datasheet |
TL | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ADP12B4M7GTSWITCH TOGGLE DPDT 5A 125V |
2,080 | 1.60 |
|
Datasheet |
34A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
5636CDBSWITCH TOGGLE SPDT 0.4VA 20V |
3,420 | 1.50 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
