Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2MS-WSP1-T2-B4-M6GESWITCH TOGGLE SPDT 5A 125V |
1,987 | 1.11 |
|
- |
2M | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 5.69mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T1-B3-M3QESWITCH TOGGLE DPDT 5A 125V |
1,565 | 1.11 |
|
- |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.39mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP32B1V2RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,863 | 1.21 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP13B3M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
2,620 | 1.21 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 15.75mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
34ASP16T1M3RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,513 | - |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flatted | 11.43mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
34BWSP41B4V3RTSWITCH TOGGLE SPDT 0.4VA 20V |
2,704 | 1.21 |
|
Datasheet |
34B | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.60mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2S1-MDP1-T2-B4-VS2QESWITCH TOGGLE DPDT 3A 125V |
3,981 | 1.08 |
|
- |
2S | Bulk | Active | Through Hole | DPDT | On-On | 3A (AC) | 125 V | 28 V | Standard Round | 5.99mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|

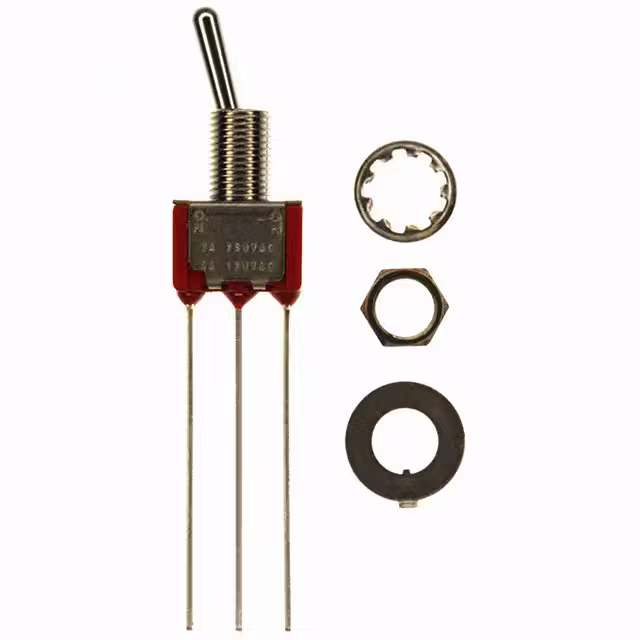

7101SYW5QESWITCH TOGGLE SPDT 5A 120V |
2,794 | 1.24 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T2-B3-M6QESWITCH TOGGLE DPDT 5A 125V |
1,026 | 1.11 |
|
- |
2M | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 5.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T1-B7-M7QESWITCH TOGGLE DPDT 5A 125V |
3,750 | 1.11 |
|
- |
2M | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.39mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ZL39S000100SWITCH TOGGLE SPDT 0.4VA 20V |
2,671 | 0.90 |
|
Datasheet |
ZL | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.90mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
AE211MD1CBSWITCH TOGGLE SP3T 0.4VA 20V |
1,108 | - |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -20°C ~ 85°C |
|
|
TL37WS84065SWITCH TOGGLE SPDT 0.4VA 20V |
4,525 | 1.12 |
|
Datasheet |
SMT TL | Bulk | Active | Surface Mount, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.50mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | High Temperature Plastic Cap | -40°C ~ 85°C |
|

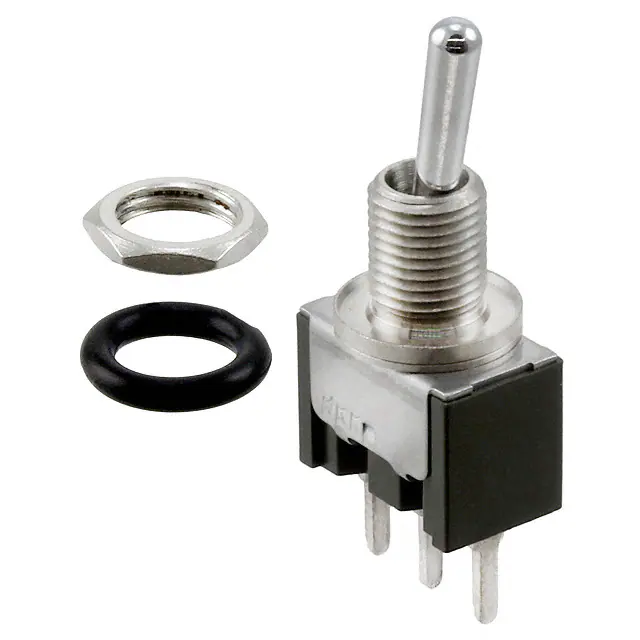

M2015SD3W03SWITCH TOGGLE SPDT 6A 125V |
2,304 | 1.23 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

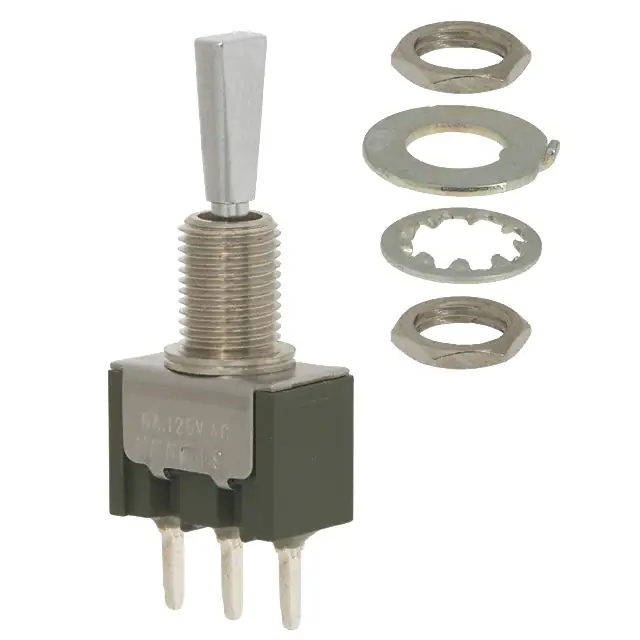

M2018ES1W03SWITCH TOGGLE SPDT 6A 125V |
4,943 | 1.23 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2015SD3W01SWITCH TOGGLE SPDT 6A 125V |
4,805 | 1.23 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SS1G01SWITCH TOGGLE SPDT 0.4VA 28V |
4,196 | 1.23 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

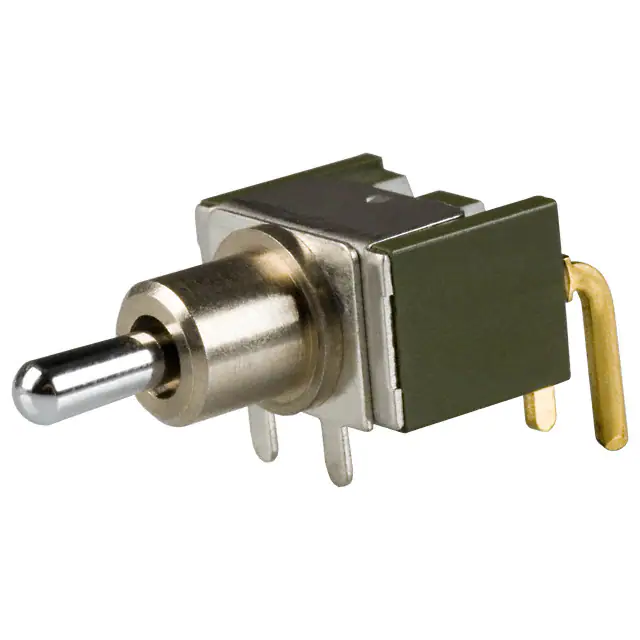

M2013S2A2G30SWITCH TOGGLE SPDT 0.4VA 28V |
1,568 | 1.21 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
8C1011-ZSWITCH TOGGLE SPDT 6A 125V |
2,249 | 0.71 |
|
Datasheet |
8C | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
1003P1T1B3M3QESWITCH TOGGLE 3PDT 5A 120V |
1,543 | 1.21 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
