Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2S1-MSP3-T1-B1-M6RESWITCH TOGGLE SPDT 0.4VA 20V |
2,132 | 1.09 |
|
- |
2S | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.50mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
2MS-WSP1-T1-B4-VS5PESWITCH TOGGLE SPDT 5A 125V |
3,546 | 1.09 |
|
- |
2M | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.69mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1003P1T2B2M2RESWITCH TOGGLE 3PDT 0.4VA 20V |
2,334 | 1.19 |
|
Datasheet |
100 | Bulk | Active | Through Hole | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP5-T6-B1-M2QESWITCH TOGGLE SPDT 5A 125V |
4,032 | 1.07 |
|
- |
2M | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Flatted | 12.10mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP4-T6-B5-M2PESWITCH TOGGLE SPDT 5A 125V |
4,160 | 1.07 |
|
- |
2M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Flatted | 12.10mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP4-T6-B1-M1QESWITCH TOGGLE SPDT 5A 125V |
3,704 | 1.07 |
|
- |
2M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Flatted | 12.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP4-T1-B9-M2QESWITCH TOGGLE SPDT 5A 125V |
1,041 | 1.07 |
|
- |
2M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.39mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP4-T6-B5-M1QESWITCH TOGGLE SPDT 5A 125V |
1,094 | 1.07 |
|
- |
2M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Flatted | 12.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP36T1M3RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,346 | 1.19 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flatted | 11.43mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
2-1571920-3SWITCH TOGGLE DPDT 6A 125V |
2,450 | - |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
1003P1T1B5M7REHSWITCH TOGGLE 3PDT 0.4VA 20V |
3,213 | 1.42 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1003P2T8B13M1REHSWITCH TOGGLE 3PDT 0.4VA 20V |
3,716 | 1.42 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 18.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP3-T1-B5-M7GESWITCH TOGGLE SPDT 5A 125V |
3,938 | 1.07 |
|
- |
2M | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.39mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP7T7B13M7QESWITCH TOGGLE DP3T 5A 120V |
3,546 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | SP3T | On-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.98mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
34ASP12B4V2RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,916 | 1.19 |
|
Datasheet |
34A | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
M2012SS1W02SWITCH TOGGLE SPDT 6A 125V |
1,851 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

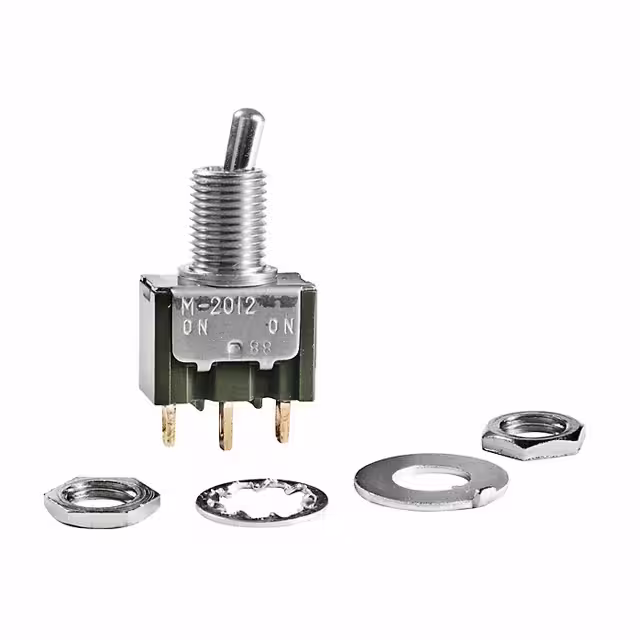

M2012S2S1G01SWITCH TOGGLE SPDT 0.4VA 28V |
4,943 | 1.19 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022SS2W13SWITCH TOGGLE DPDT 6A 125V |
4,968 | 1.19 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ZL36P0002SWITCH TOGGLE SPDT 0.4VA 20V |
1,011 | 0.86 |
|
Datasheet |
ZL | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.50mm | Non-Illuminated | - | - | PC Pin | Circular - 4.90mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP11B2V2RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,151 | 1.19 |
|
Datasheet |
34C | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
