Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2TL1-1SWITCH TOGGLE DPDT 15A 125V |
3,263 | 8.85 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
1TL1-5SWITCH TOGGLE SPDT 10A 125V |
3,224 | 7.74 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
11TW1-7SWITCH TOGGLE SPDT 5A 125V |
4,291 | 12.41 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
1520230-1SWITCH TOGGLE DPST 20A 250V |
2,668 | 17.77 |
|
Datasheet |
- | Bulk | Last Time Buy | Panel Mount | DPST | On-Off | 20A (AC) | 250 V | - | Standard Round | 20.65mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
12246ASWITCH TOGGLE DPDT 4A 125V |
3,465 | 11.83 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
4TL1-2DSWITCH TOGGLE 4PST 15A 125V |
4,321 | 21.51 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PST | On-Off | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

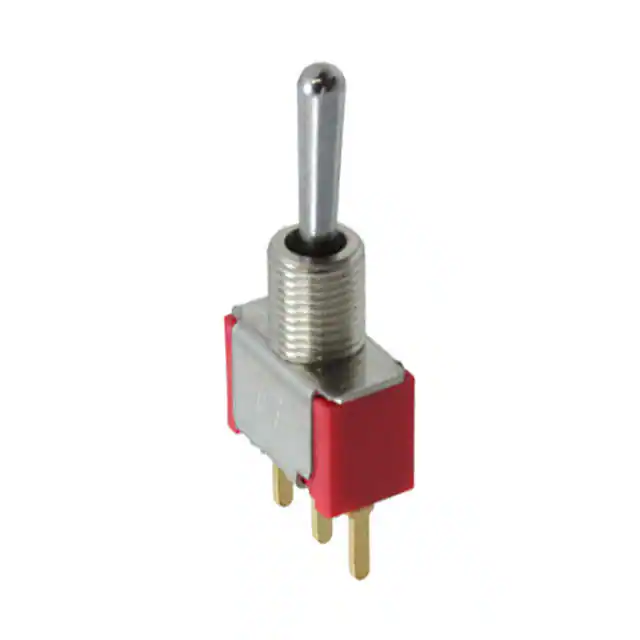

100SP3T1B3M2RESWITCH TOGGLE SPDT 0.4VA 20V |
2,335 | 0.76 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1T1B1M3QEHSWITCH TOGGLE SPDT 5A 120V |
2,212 | 0.59 |
|
Datasheet |
100 | Tray | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1T2B5M1QEHSWITCH TOGGLE SPDT 5A 120V |
1,096 | 0.65 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200RSP1T1B1M2RSWITCH TOGGLE SPDT 0.4VA 48V |
1,847 | 0.97 |
|
Datasheet |
200R | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
100AWSP1T2B4M2QESWITCH TOGGLE SPDT 5A 120V |
1,634 | 0.53 |
|
Datasheet |
100A | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

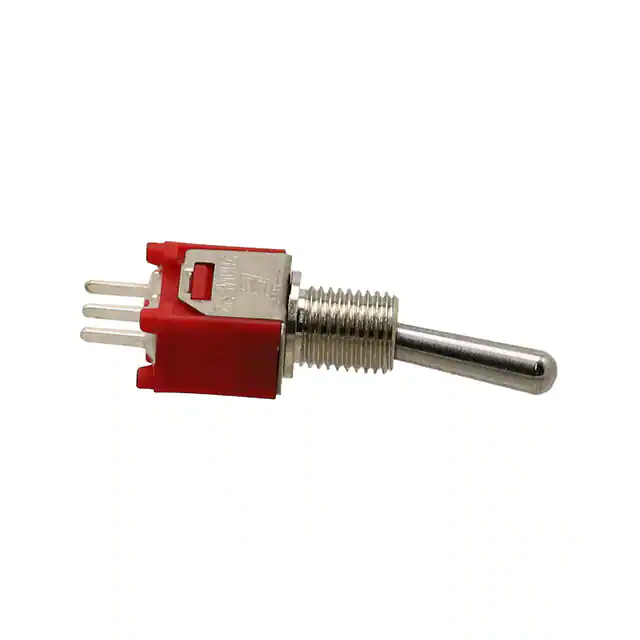

200MSP2T1B1M2QESWITCH TOGGLE SPDT 3A 120V |
1,611 | 0.72 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
BST13T1AVRSWITCH TOGGLE SPDT 3A 120V |
4,944 | 0.72 |
|
Datasheet |
BST | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

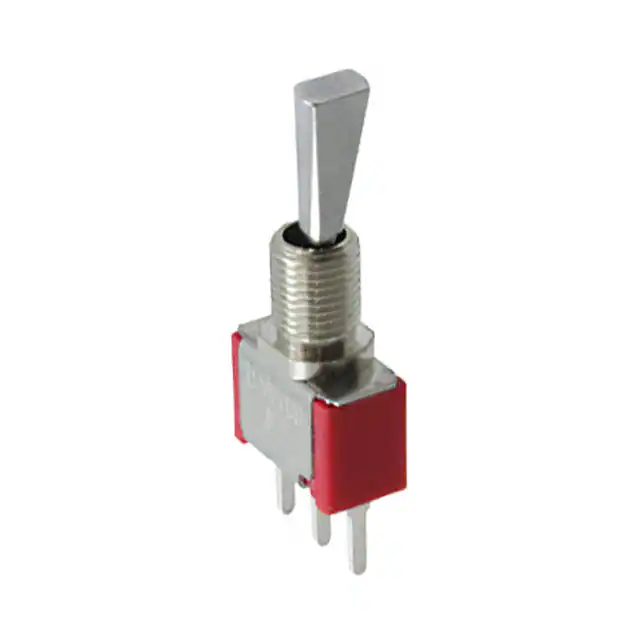

100SP2T6B11M2QESWITCH TOGGLE SPDT 5A 120V |
2,182 | 0.78 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

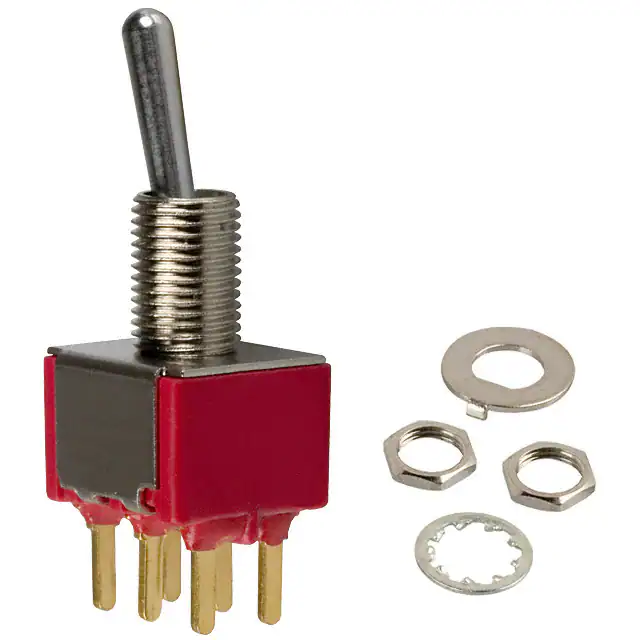

100DP1T1B1M2REHSWITCH TOGGLE DPDT 0.4VA 20V |
3,079 | 0.82 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP5T2B5M1QEHSWITCH TOGGLE SPDT 5A 120V |
3,847 | 0.83 |
|
Datasheet |
100 | Tray | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

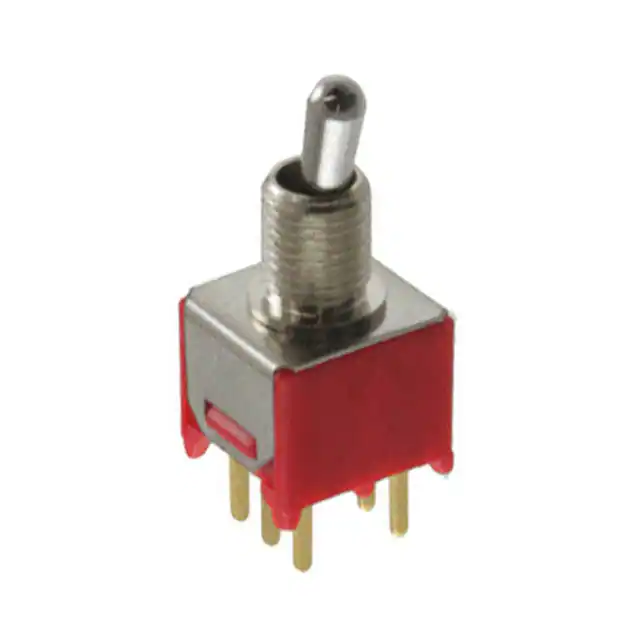

200MDP1T2B1M2RESWITCH TOGGLE DPDT 0.4VA 20V |
1,000 | 0.85 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

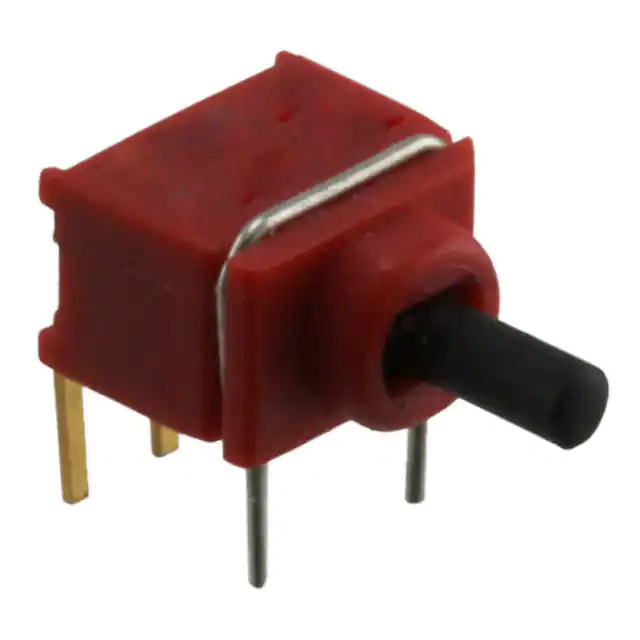

200USP3T1A1M6RESWITCH TOGGLE SPDT 0.4VA 20V |
4,461 | 0.86 |
|
Datasheet |
200U | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

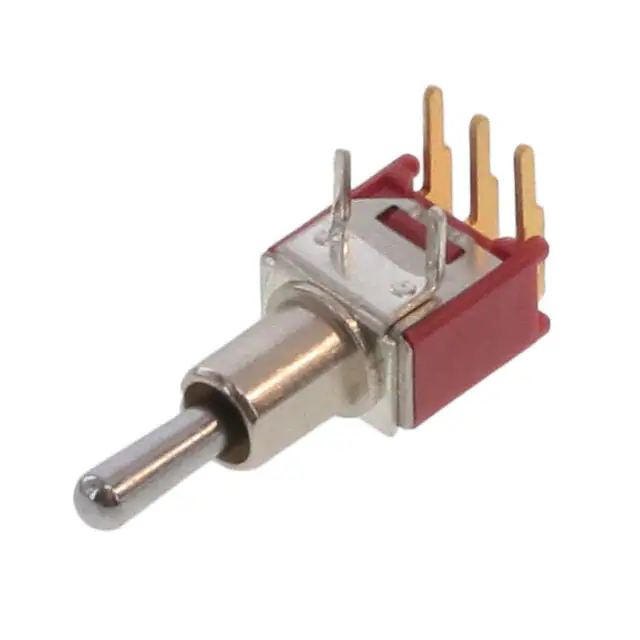

200MSP1T3B2M6RESWITCH TOGGLE SPDT 0.4VA 20V |
2,306 | 0.94 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.37mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200BWMSP1T2A1SM6RESWITCH TOGGLE SPDT 0.4VA 20V |
1,146 | 0.93 |
|
Datasheet |
200B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
