Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

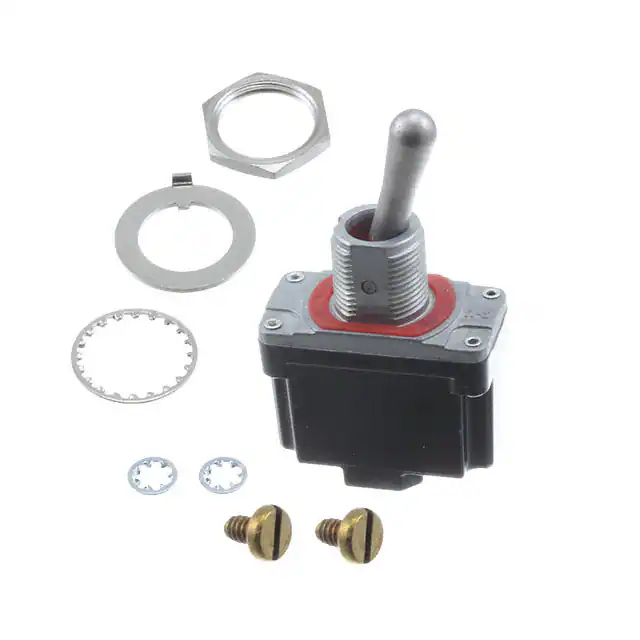

PT102SSQSWITCH TOGGLE SPST 15A 277V |
3,758 | 3.77 |
|
Datasheet |
PT | Tray | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
5639AB3VSWITCH TOGGLE SPDT 6A 125V |
4,455 | 3.64 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 15.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
12TW1-3SWITCH TOGGLE DPDT 5A 125V |
2,000 | 10.87 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
1TL1-2DSWITCH TOGGLE SPST 15A 125V |
3,637 | 12.85 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
2TL1-2DSWITCH TOGGLE DPST 15A 125V |
1,836 | 13.83 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
2TL1-3DSWITCH TOGGLE DPDT 15A 125V |
3,187 | 13.83 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
2TL1-50KSWITCH TOGGLE DPDT 10A 125V |
4,021 | 18.02 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-On-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
4TL1-3DSWITCH TOGGLE 4PDT 15A 125V |
1,548 | 20.46 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
12TW1-3DSWITCH TOGGLE DPDT 5A 125V |
2,676 | 26.72 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC) | 125 V | - | Locking Lever | 29.46mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
12TW1-10ASWITCH TOGGLE SP3T 5A 125V |
3,737 | 33.79 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC) | 125 V | - | Locking Lever | 29.46mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Jumper needed to achieve triple throw | -65°C ~ 71°C |
|
122462VX778SWITCH TOGGLE DPDT 4A 125V |
1,658 | 28.63 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
SW-T3-2B-A-A3-S1SWITCH TOGGLE SPDT 3A 125V |
4,077 | 0.20 |
|
Datasheet |
SW | Bag | Active | Panel Mount | SPDT | On-On | 3A (AC) | 125 V | - | Standard Round | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 5.00mm Dia | M5 x 0.5 | - | - | -25°C ~ 85°C |
|
SW-T2-4E-B-A2-MA2SWITCH TOGGLE DPDT 6A 125V |
2,414 | 0.26 |
|
Datasheet |
SW | Bag | Active | Panel Mount | DPDT | On-Off-On | 6A (AC) | 125 V | - | Standard Round | 11.00mm | Non-Illuminated | - | - | PC Pin | Circular - 6.00mm Dia | M6 x 0.75 | - | - | -25°C ~ 85°C |
|
SW-T2-4E-A-A2-MA2SWITCH TOGGLE DPDT 6A 125V |
2,840 | 0.26 |
|
Datasheet |
SW | Bag | Active | Panel Mount | DPDT | On-Off-On | 6A (AC) | 125 V | - | Standard Round | 11.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.00mm Dia | M6 x 0.75 | - | - | -25°C ~ 85°C |
|
SW-T1-2E-B-K1SWITCH TOGGLE SPDT 15A 125V |
4,923 | 0.70 |
|
Datasheet |
SW | Bag | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -25°C ~ 85°C |
|
100SP3T2B9M1REHSWITCH TOGGLE SPDT 0.4VA 20V |
1,957 | 0.59 |
|
Datasheet |
100 | Tray | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MSP1T2B2M6RESWITCH TOGGLE SPDT 0.4VA 20V |
4,265 | 0.81 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

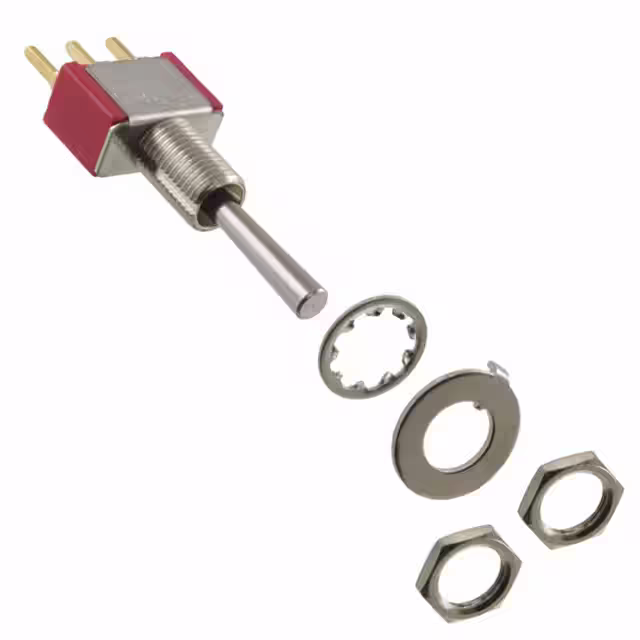

100SP4T3B1M2REHSWITCH TOGGLE SPDT 0.4VA 20V |
1,278 | 0.55 |
|
Datasheet |
100 | Tray | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.97mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

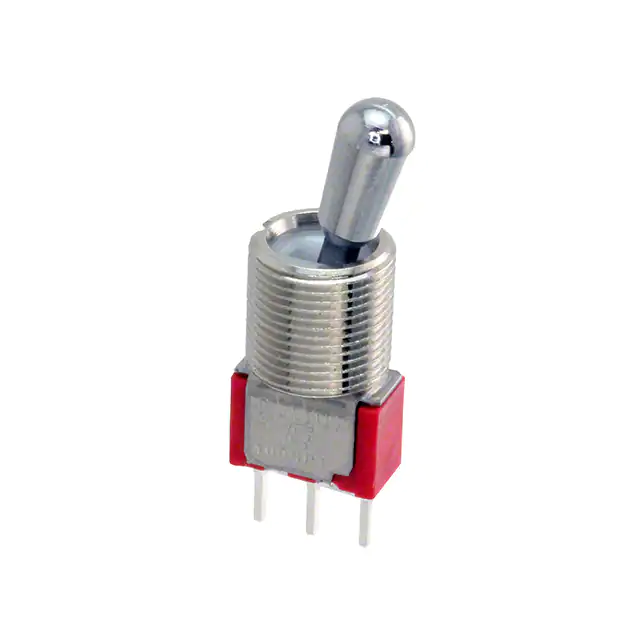

100SP1T7B13M2QESWITCH TOGGLE SPDT 5A 120V |
2,455 | 0.83 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200AWMSP1T1A1M2RESWITCH TOGGLE SPDT 0.4VA 20V |
2,481 | 0.85 |
|
Datasheet |
200A | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
