Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2023WBG01SWITCH TOGGLE DPDT 0.4VA 28V |
2,508 | 4.16 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 20.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Waterproof Boot | -30°C ~ 85°C |
|
M2112LCFG03SWITCH TOGGLE SPDT 0.4VA 28V |
4,974 | 4.34 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|

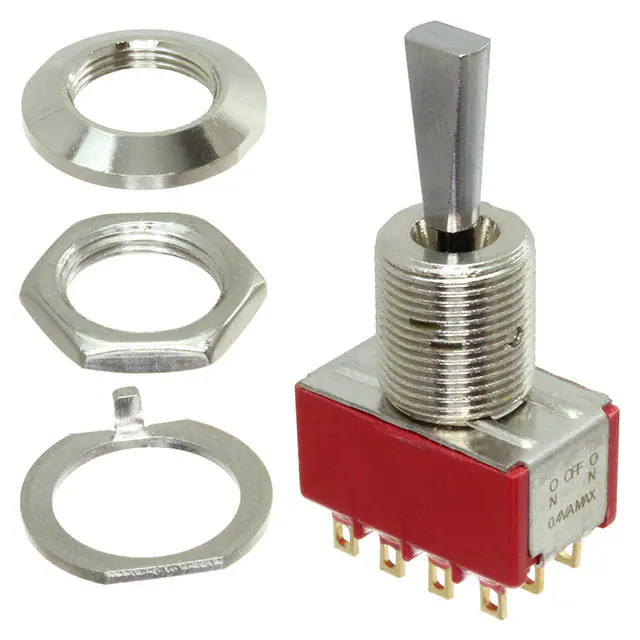

7403T2PZBESWITCH TOGGLE 4PDT 0.4VA 20V |
3,457 | 6.70 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 15.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7413SPY1ZQESWITCH TOGGLE DP3T 5A 120V |
3,265 | 6.09 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | On-On-Mom | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
PT202SQQSWITCH TOGGLE DPST 15A 277V |
3,942 | 6.98 |
|
Datasheet |
PT | Tray | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
|
3-1571926-0SWITCH TOGGLE 4PDT 6A 125V |
4,347 | 2.88 |
|
- |
MTG Green | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.94mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
31NT391-6-B08SWITCH TOGGLE SPST-NO 10A 125V |
1,810 | 6.09 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Flatted | 22.35mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Yellow Actuator | -40°C ~ 71°C |
|

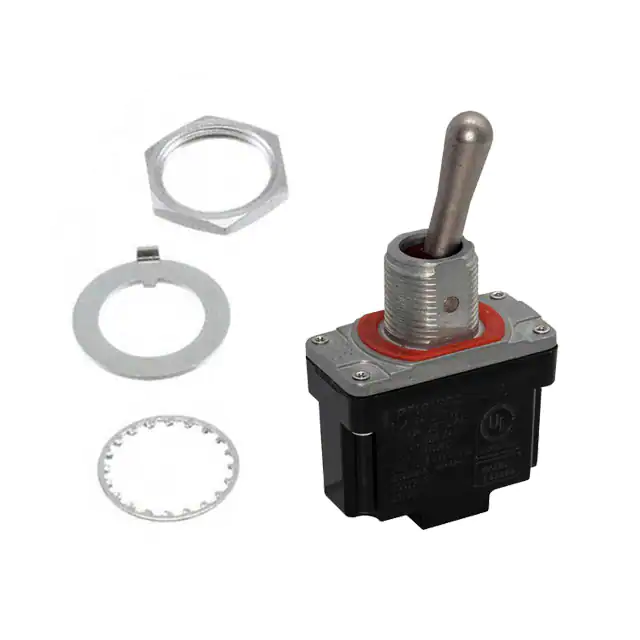

PT202SZQSWITCH TOGGLE DPST 15A 277V |
4,447 | 7.81 |
|
Datasheet |
PT | Tray | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
|
S822/328-AT401HSWITCH TOGGLE DPDT 30A 125V |
3,012 | - |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S822/328-AT401ASWITCH TOGGLE DPDT 30A 125V |
4,632 | - |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
M83731/16-261SWITCH TOGGLE DPDT 5A 115V |
1,123 | - |
|
Datasheet |
M83731 | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-Mom | 5A (AC/DC) | 115 V | 28 V | Standard Round | 6.90mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|
|
S823/328-AT401HSWITCH TOGGLE DPDT 30A 125V |
2,719 | - |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S823/328-AT401ASWITCH TOGGLE DPDT 30A 125V |
1,225 | - |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
2TL11-3SWITCH TOGGLE DPDT 15A 125V |
100 | 14.25 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
S822/328-AT401SSWITCH TOGGLE DPDT 30A 125V |
4,972 | - |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
2NT91-8SWITCH TOGGLE DPDT 10A 125V |
4,184 | 6.35 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | DPDT | On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
S823/328-AT401SSWITCH TOGGLE DPDT 30A 125V |
1,003 | - |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
61NT1-2SWITCH TOGGLE SPST 15A 125V |
3,466 | 6.61 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|

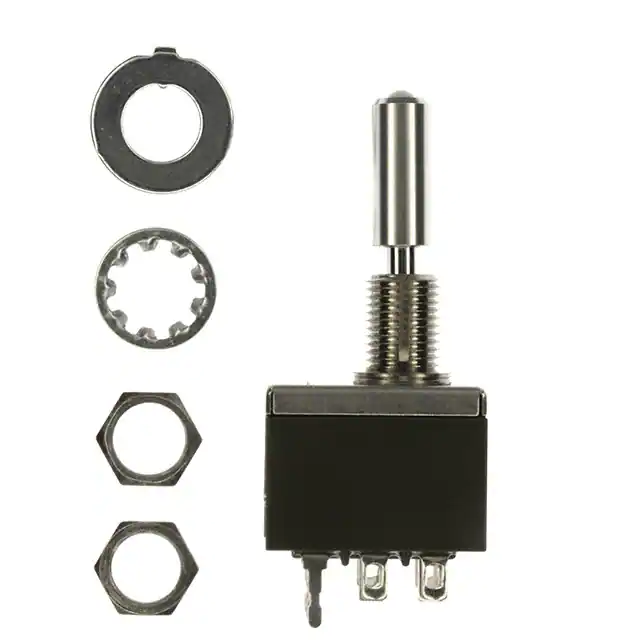

M2123TCFW01SWITCH TOGGLE DPDT 6A 125V |
1,319 | 4.75 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|

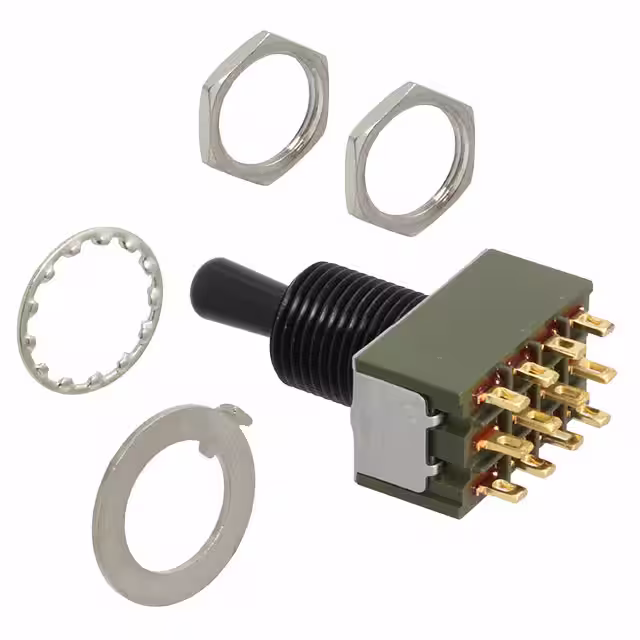

M2046BB1A01/3SWITCH TOGGLE DP3T 6A 125V |
4,433 | 6.57 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
