Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL22SNAG016G-AT401PFULLY ILLUMINATED TOGGLE |
1,753 | - |
|
- |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 11.00mm | Illuminated | LED, Blue | 3.3 VDC | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP65 - Dust Tight, Water Resistant | - | -10°C ~ 55°C |
|

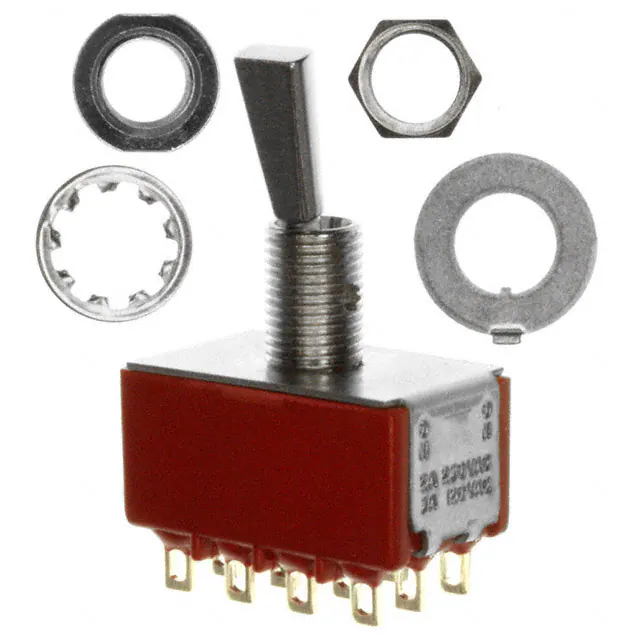

7408P3YZQESWITCH TOGGLE 4PDT 5A 120V |
3,355 | 6.17 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

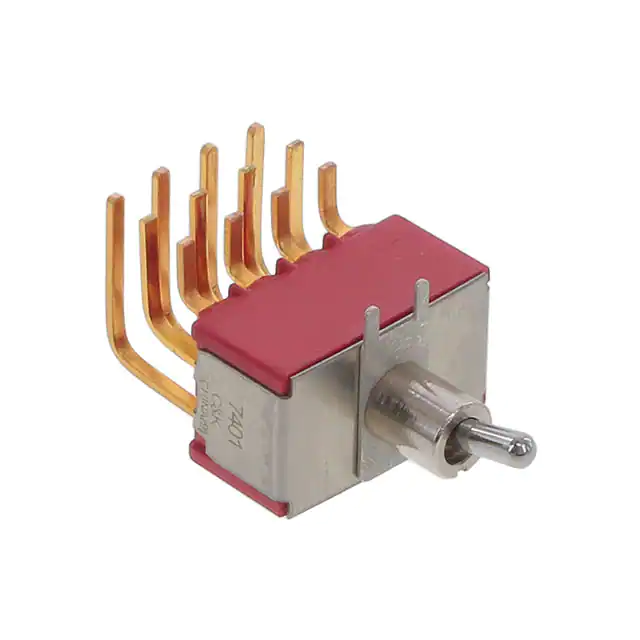

7401MD9AV2BESWITCH TOGGLE 4PDT 0.4VA 20V |
2,232 | 4.56 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
S822D/CSWITCH TOGGLE DPDT 30A 30V |
3,413 | 7.01 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | DPDT | On-On | 30A (DC) | - | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
5659AB3VSWITCH TOGGLE 3PDT 6A 125V |
1,419 | 7.14 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 15.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
32NT91-8SWITCH TOGGLE DPDT 10A 125V |
3,858 | 5.52 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | DPDT | On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
PT205SSQSWITCH TOGGLE DPDT 10A 277V |
4,889 | 6.35 |
|
Datasheet |
PT | Tray | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
|
M2112TCFW03SWITCH TOGGLE SPDT 6A 125V |
2,033 | 4.06 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
PT205SQQSWITCH TOGGLE DPDT 10A 277V |
3,320 | 6.48 |
|
Datasheet |
PT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|

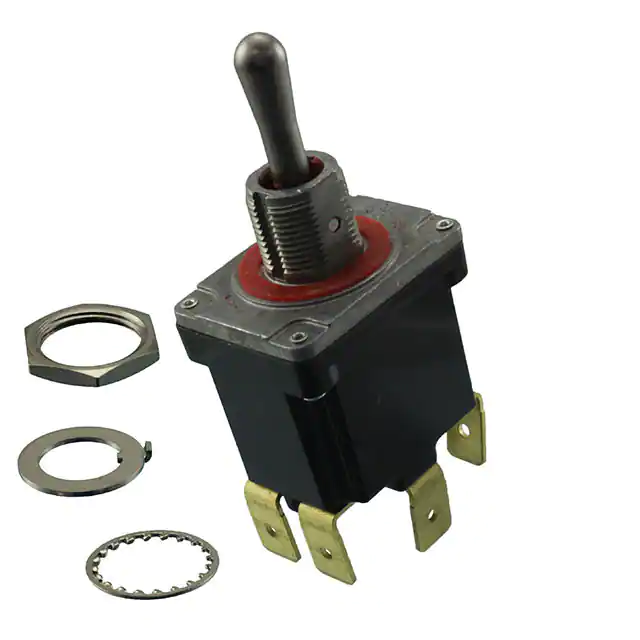

PT203SQQSWITCH TOGGLE DPDT 15A 277V |
4,724 | 6.48 |
|
Datasheet |
PT | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
PT201SQQSWITCH TOGGLE DPDT 15A 277V |
3,324 | 7.06 |
|
Datasheet |
PT | Tray | Active | Panel Mount | DPDT | On-On | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
|
7411T1CWV8QESWITCH TOGGLE DP3T 5A 120V |
1,591 | 6.35 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
PT208SZQSWITCH TOGGLE DPDT 10A 277V |
3,295 | 6.49 |
|
Datasheet |
PT | Tray | Active | Panel Mount | DPDT | On-Mom | 10A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|

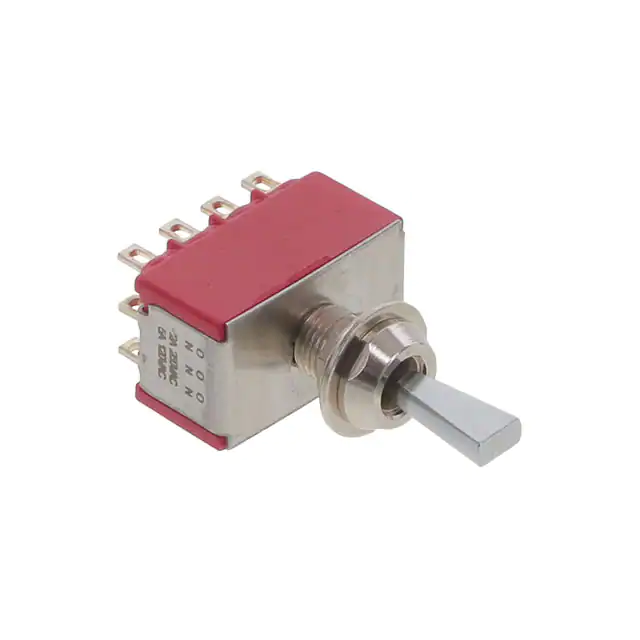

7415P3YZQESWITCH TOGGLE DP3T 5A 120V |
2,946 | 5.89 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2024BB1UW01-AT402SMINIATURE TOGGLE/MULTI-FUNCTION |
2,568 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2122TCFW02SWITCH TOGGLE DPDT 6A 125V |
3,978 | - |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
3641NFSWITCH TOGGLE DPST 6A 125V |
4,958 | 5.74 |
|
Datasheet |
3600NF | Bulk | Active | Panel Mount | DPST | On-Off | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
|
|
S822/328SWITCH TOGGLE DPDT 30A 125V |
4,856 | 5.96 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | Low Temperature Lubricant | -30°C ~ 70°C |
|
|
4NT1-5SWITCH TOGGLE 4PDT 10A 125V |
1,882 | 7.24 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | 4PDT | On-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|

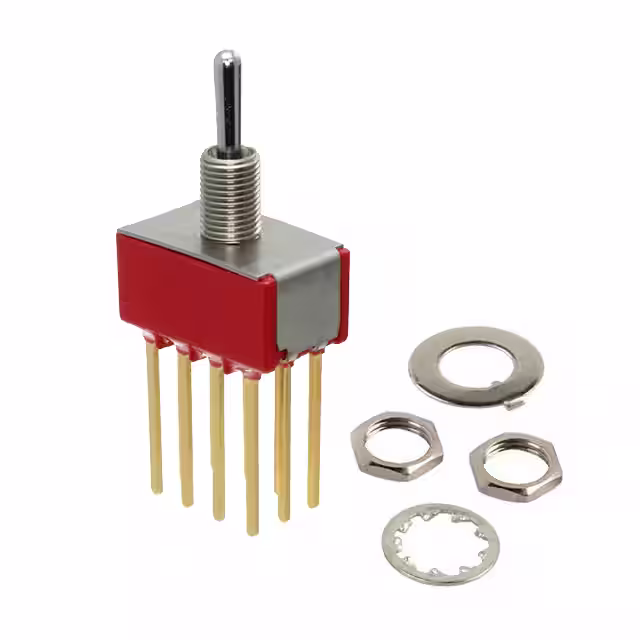

7415SYWGESWITCH TOGGLE DP3T 5A 120V |
3,795 | 6.19 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
