Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

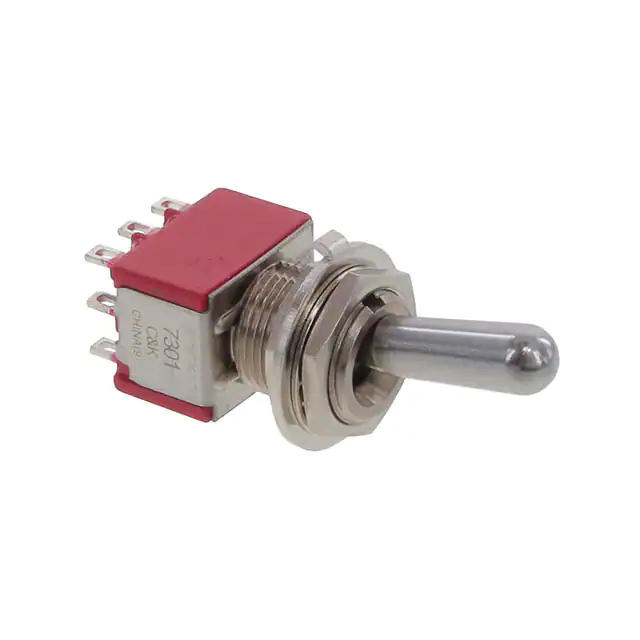

7301TZQESWITCH TOGGLE 3PDT 5A 120V |
1,096 | 3.95 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2113TCFW02/MMINIATURE TOGGLE/ILLUMINATED/QUI |
2,041 | - |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
1NT1-4SWITCH TOGGLE SPST-NC 10A 125V |
2,356 | 3.93 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPST-NC | On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
2TL1-61SWITCH TOGGLE DPST-NO 10A 125V |
4,634 | 8.99 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
M2112TEFW01SWITCH TOGGLE SPDT 6A 125V |
1,780 | 3.95 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green/Yellow | 2.1 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2022B2B1A01-AT4181BUSHING MOUNT MINIATURE TOGGLE |
2,976 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
AML23EBA2BA04SWITCH TOGGLE SPDT 100MA 125V |
4,416 | 4.88 |
|
Datasheet |
AML23 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 100mA (AC/DC) | 125 V | 125 V | Paddle | - | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | - | - |
|
|
M2042B2B1W03-AT401SBUSHING MOUNT MINIATURE TOGGLE |
3,084 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2042B2B1W03-AT401HBUSHING MOUNT MINIATURE TOGGLE |
3,406 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
7201P3D9V3BESWITCH TOGGLE DPDT 0.4VA 20V |
2,016 | 2.62 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7401SD9V2QESWITCH TOGGLE 4PDT 5A 120V |
3,829 | 4.46 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2026B2B1G01-AT401ABUSHING MOUNT MINIATURE TOGGLE |
3,855 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2042B2B1W03-AT4181BUSHING MOUNT MINIATURE TOGGLE |
2,777 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
M2113LCFW01SWITCH TOGGLE SPDT 6A 125V |
2,025 | 4.04 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
S333F/U-AT401HSWITCH TOGGLE DPDT 20A 125V |
4,099 | - |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S333F/U-AT401ASWITCH TOGGLE DPDT 20A 125V |
4,007 | - |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S333F-AT401ASWITCH TOGGLE DPDT 20A 125V |
2,740 | - |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S333F-AT401HSWITCH TOGGLE DPDT 20A 125V |
4,677 | - |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
1NT91-3SWITCH TOGGLE SPDT 15A 125V |
2,168 | 4.03 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|

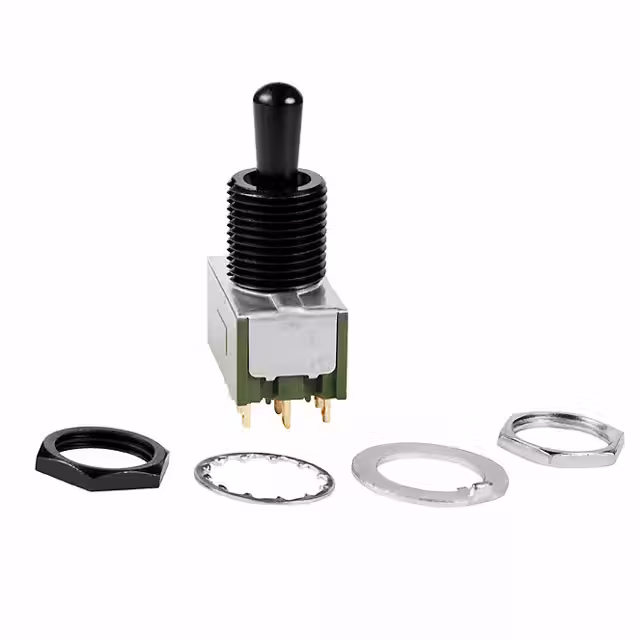

M2045ES1W01SWITCH TOGGLE 4PDT 6A 125V |
2,609 | 2.94 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
