Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S41RSWITCH TOGGLE 4PST 20A 125V |
2,958 | 3.78 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

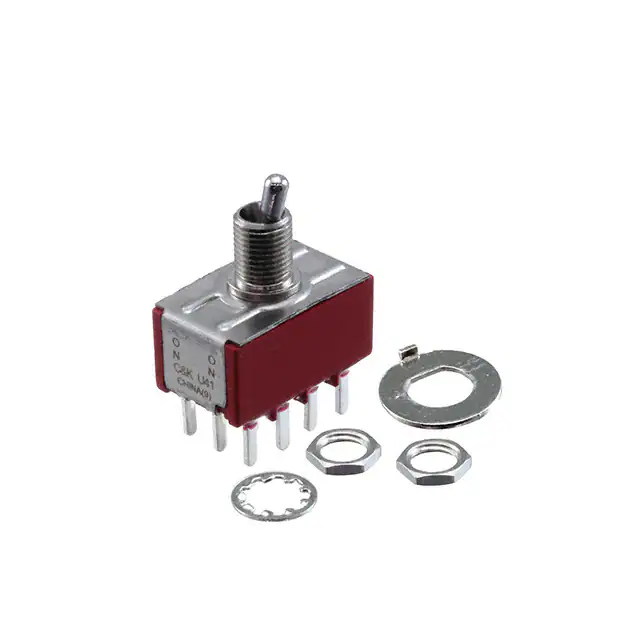

U41MHZ3QESWITCH TOGGLE 4PDT 5A 120V |
2,376 | 4.88 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
SW236AD8X696ULSWITCH TOGGLE SPDT 4A 30V |
2,294 | - |
|
Datasheet |
S | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 4A (DC) | - | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Insulated Lever | -20°C ~ 85°C |
|
|
55646AKVDE+U272SWITCH TOGGLE DPDT 6A 125V |
1,597 | 3.13 |
|
Datasheet |
55000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC) | 125 V | - | Standard Round with Cap | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | - |
|
|
MTE106ESWITCH TOGGLE SPDT 6A 125V |
4,101 | 2.88 |
|
Datasheet |
MTE Green | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
M2042BB1W01-AT402SSWITCH TOGGLE 4PDT 6A 125V |
2,718 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2022B2B1A01-AT401ABUSHING MOUNT MINIATURE TOGGLE |
3,295 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
7207L2D9AV2BESWITCH TOGGLE DPDT 0.4VA 20V |
4,287 | 2.59 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 15.75mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1MT1-2SWITCH TOGGLE SPST 5A 28V |
4,281 | 5.36 |
|
Datasheet |
MT | Bulk | Obsolete | Panel Mount | SPST | On-Off | 5A (DC) | - | 28 V | Standard Round | 16.87mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 12.45mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
2MT2-3SWITCH TOGGLE DPDT 100MA 28V |
4,243 | 8.57 |
|
Datasheet |
MT | Bulk | Obsolete | Panel Mount | DPDT | On-On | 100mA (DC) | - | 28 V | Standard Round | 16.87mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 12.45mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
M2112TFW01/CULSWITCH TOGGLE SPDT 6A 125V |
1,486 | 2.89 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green | 2.2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
M2112TEW01SWITCH TOGGLE SPDT 6A 125V |
3,544 | 2.89 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Yellow | 2.1 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
7201K9AV2QESWITCH TOGGLE DPDT 5A 120V |
3,876 | 2.42 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2042B2B1W03-AT401ABUSHING MOUNT MINIATURE TOGGLE |
3,672 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
5658ABSWITCH TOGGLE 3PDT 6A 125V |
4,593 | 2.99 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
M2022B2B1A01-AT401HBUSHING MOUNT MINIATURE TOGGLE |
4,655 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2022B2B1A01-AT401SBUSHING MOUNT MINIATURE TOGGLE |
4,388 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2033SS1G06SWITCH TOGGLE 3PDT 0.4VA 28V |
3,750 | 2.85 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

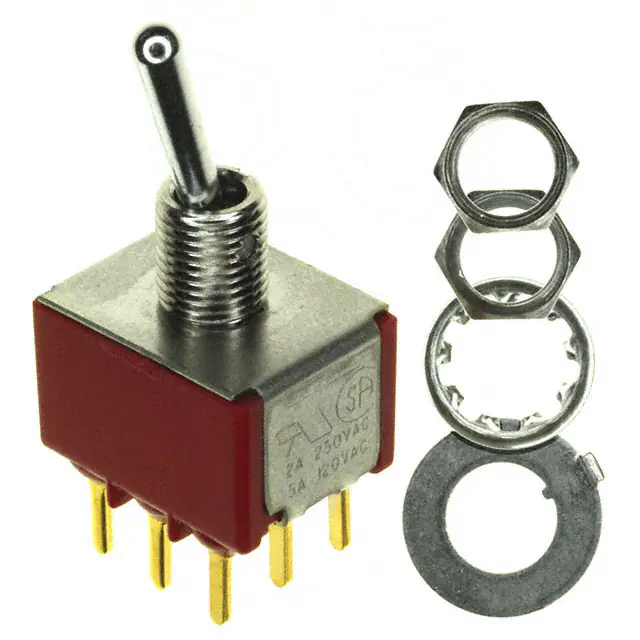

U31SPDCGESWITCH TOGGLE 3PDT 5A 120V |
3,189 | 4.34 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 12.45mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2113TEW01SWITCH TOGGLE SPDT 6A 125V |
2,121 | 2.96 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Yellow | 2.1 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
