Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2EDF5215FXUMA12EDF5215FXUMA1 Infineon Technologies |
3,417 | - |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | 100V/ns | 46ns, 47ns | 5.5ns | 7.5ns, 6ns | 5A, 5A | 5A, 9A | - | - | 7.6V ~ 17V, 7.6V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8 | - |
|
|
2EDF5215GXTMA12EDF5215GXTMA1 Infineon Technologies |
2,011 | - |
|
Datasheet |
EiceDRIVER™ | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | 100V/ns | 46ns, 47ns | 5.5ns | 7.5ns, 6ns | 5A, 5A | 5A, 9A | - | - | 7.6V ~ 17V, 7.6V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | PG-VDSON-8-5 | - |
|

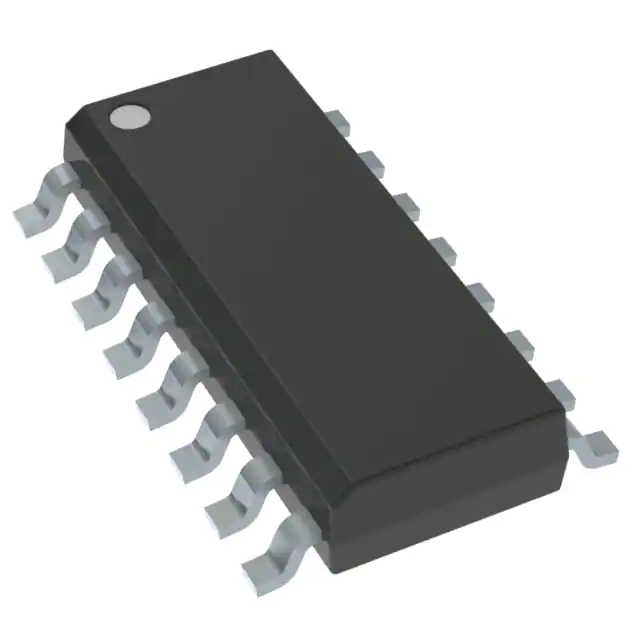

1EDF5673FXUMA1DGT ISO 1.5KV 1CH GT DVR DSO16 Infineon Technologies |
1,097 | 2.41 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Last Time Buy | Magnetic Coupling | 1 | 1500VDC | 150V/ns | 44ns, 44ns | 18ns (Typ) | 6.5ns, 4.5ns | 4A, 8A | - | - | - | 3.13V ~ 3.47V | - | - | -40°C ~ 85°C | Surface Mount | PG-DSO-16-11 | CQC, CSA, UL, VDE |
|
|
2EDR6259XXUMA1DRIVER IC PG-DSO-14 Infineon Technologies |
3,324 | 3.51 |
|
- |
- | - | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1ED020I12FTXUMA1DGT ISO 4.5KV 1CH GT DVR DSO16 Infineon Technologies |
3,670 | 0.80 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 4500Vrms | - | - | - | 30ns, 20ns | 2A, 2A | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-16-15 | - |
|
1ED020I12BTXUMA1DGT ISO 4.5KV 1CH GT DVR DSO16 Infineon Technologies |
4,388 | 0.80 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 4500Vrms | - | - | - | 30ns, 20ns | 2A, 2A | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-16-15 | - |
|
|
1EDI2004ASXUMA1DGTL ISO 4.5KV 1CH GT DVR DSO36 Infineon Technologies |
4,373 | 6.06 |
|
Datasheet |
EiceDRIVER™ SIL | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 4500Vrms | 50kV/µs | 255ns, 255ns | 40ns | 120ns, 150ns | 2A, 2A | 2A | - | - | 13.5V ~ 18V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | PG-DSO-36 | UL, VDE |
|
1EDI20I12SVXUMA1DIGITAL ISO 5KV 1CH GATE DVR Infineon Technologies |
1,675 | 4.58 |
|
Datasheet |
EiceDRIVER™ | - | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 5000Vrms | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C (TJ) | Surface Mount | - | - |
|

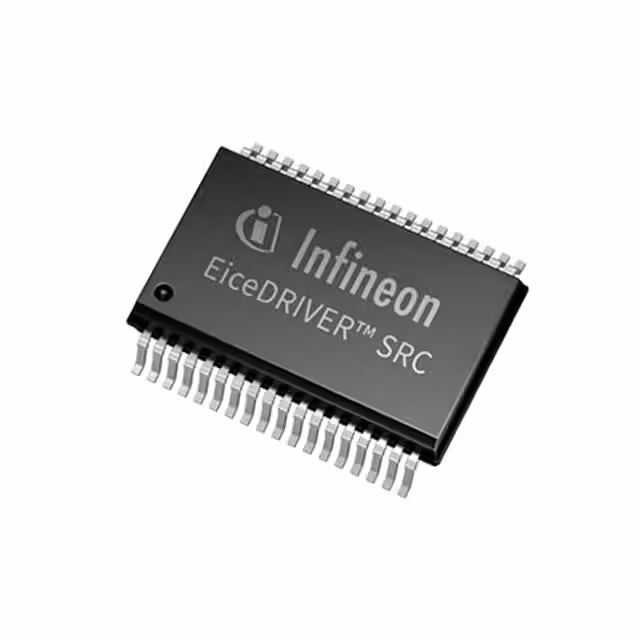

1EDU20I12SVXUMA1DIGITAL ISO 5KV 1CH GATE DVR Infineon Technologies |
4,845 | 7.29 |
|
Datasheet |
EiceDRIVER™ | - | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 5000Vrms | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C (TJ) | Surface Mount | - | - |
|
1EDI2001ASXUMA2DGT ISO 3.75KV 1CH GT DVR DSO36 Infineon Technologies |
4,013 | 0.80 |
|
Datasheet |
EiceDRIVER™ | 36-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 3750Vrms | - | - | - | 30ns, 60ns | 1A, 1A | - | - | - | 13V ~ 18V | Automotive | AEC-Q100 | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-36-63 | - |
