Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1EDI3035ASXUMA11EDI3035ASXUMA1 Infineon Technologies |
850 | - |
|
Datasheet |
EiceDRIVER™ | 20-BFSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 150kV/µs | 90ns, 90ns | - | 35ns, 45ns (Max) | 20A, 20A | 20A | - | - | 3V ~ 5.5V, 13.5V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | PG-DSO-20-91 | IEC/EN/DIN, UL, VDE |
|
1ED020I12FXUMA2DGT ISO 4.5KV 1CH GT DVR DSO16 Infineon Technologies |
1,000 | 3.38 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Not For New Designs | Magnetic Coupling | 1 | 4500Vrms | - | - | - | 60ns, 60ns | 2A, 2A | - | - | - | 13V ~ 20V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-16-15 | - |
|
|
1EDI3051ASXUMA1ISOLATED_HVGD Infineon Technologies |
480 | - |
|
Datasheet |
- | 36-BFSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 8000Vpk | 150kV/µs | 120ns, 120ns | 20ns | 35ns, 45ns (Max) | 20A, 20A | 20A | - | - | 4.55V ~ 5.5V, 14V ~ 21.5V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | PG-DSO-36-85 | IEC/EN/DIN, UL |
|
1EDI10I12MFXUMA1DIGITAL ISO 1CH GATE DVR DSO8-51 Infineon Technologies |
3,360 | 0.72 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | - | - | - | - | 9ns, 6ns | - | - | - | - | 13V ~ 18V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-51 | - |
|
|
1EDI05I12AFXUMA1DIGITAL ISO 1CH GATE DVR DSO8-51 Infineon Technologies |
1,634 | 1.55 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | - | - | - | - | 10ns, 9ns | - | - | - | - | 13V ~ 35V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-51 | - |
|

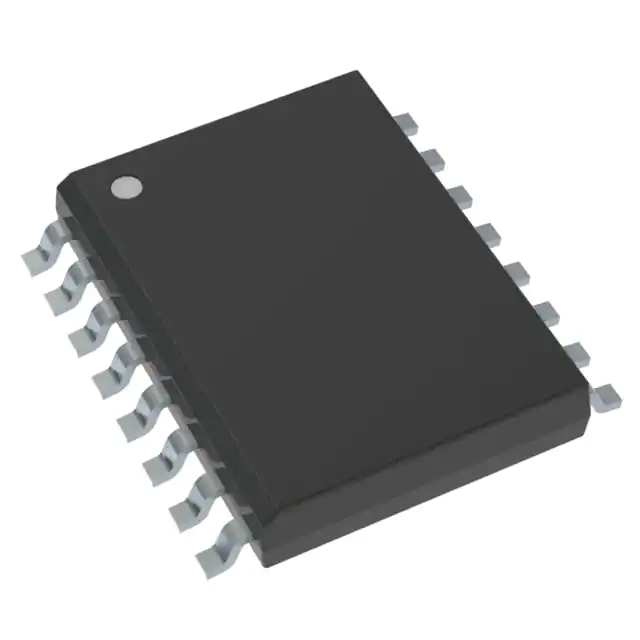

1EDS5663HXUMA1DGT ISO 5.7KV 1CH GT DVR DSO16 Infineon Technologies |
4,548 | 2.86 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Last Time Buy | Magnetic Coupling | 1 | 5700Vrms | 150V/ns | 44ns, 44ns | 18ns (Typ) | 6.5ns, 4.5ns | 4A, 8A | - | - | - | 3.13V ~ 3.47V | - | - | -40°C ~ 85°C | Surface Mount | PG-DSO-16-30 | CQC, CSA, UL, VDE |
|
|
1EDI05I12AHXUMA1DIGITAL ISO 1CH GATE DVR DSO8-59 Infineon Technologies |
3,991 | 1.03 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | - | - | - | - | 10ns, 9ns | - | - | - | - | 13V ~ 35V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-59 | - |
|
|
1EDI10I12MHXUMA1DIGITAL ISO 1CH GATE DVR DSO8-59 Infineon Technologies |
1,312 | 1.08 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | - | - | - | - | 10ns, 9ns | - | - | - | - | 13V ~ 18V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-59 | - |
|
|
1EDC05I12AHXUMA1DGT ISO 2.5KV 1CH GT DVR DSO8-59 Infineon Technologies |
1,586 | 1.10 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 2500Vrms | - | - | - | 10ns, 9ns | - | - | - | - | 3.1V ~ 17V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-59 | - |
|
|
1EDC10I12MHXUMA1DGT ISO 2.5KV 1CH GT DVR DSO8-59 Infineon Technologies |
2,995 | 2.50 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 2500Vrms | - | - | - | 10ns, 9ns | - | - | - | - | 3.1V ~ 17V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-59 | - |
