Industrial, DIN Rail Power Supplies
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Input Type | Number of Outputs | AC Voltage - Input | DC Voltage - Input (Min) | DC Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

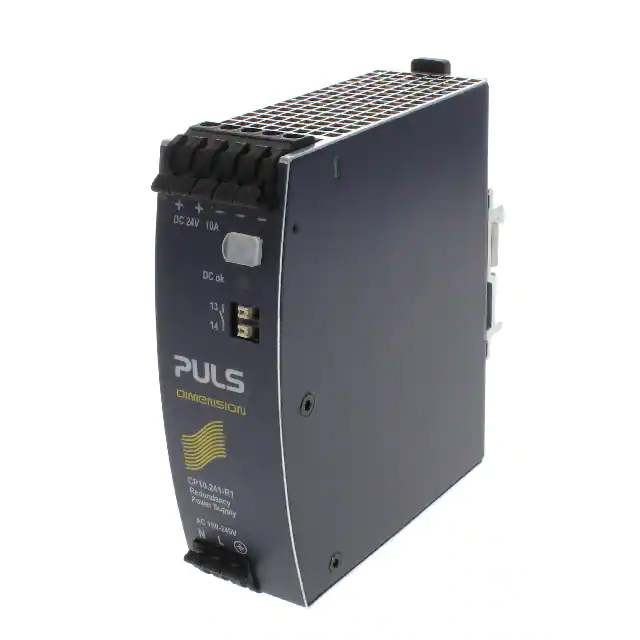

CP10.241-R1AC/DC DIN RAIL SUPPLY 24V 240W PULS, LP |
2,254 | 78.30 |
|
Datasheet |
DIMENSION CP (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | Hazardous Locations, Industrial, ITE (Commercial), Laboratory | 94.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CE, cULus, EAC | 60950-1; 61010-1; 62368-1; ATEX; 508 |
|
CS10.481AC/DC DIN RAIL SUPPLY 48V 240W PULS, LP |
1,989 | 79.20 |
|
Datasheet |
DIMENSION C (240W) | Box | Active | AC | 1 | 100 ~ 120 VAC, 200 ~ 240 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 3 kV | ITE (Commercial) | 91.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|

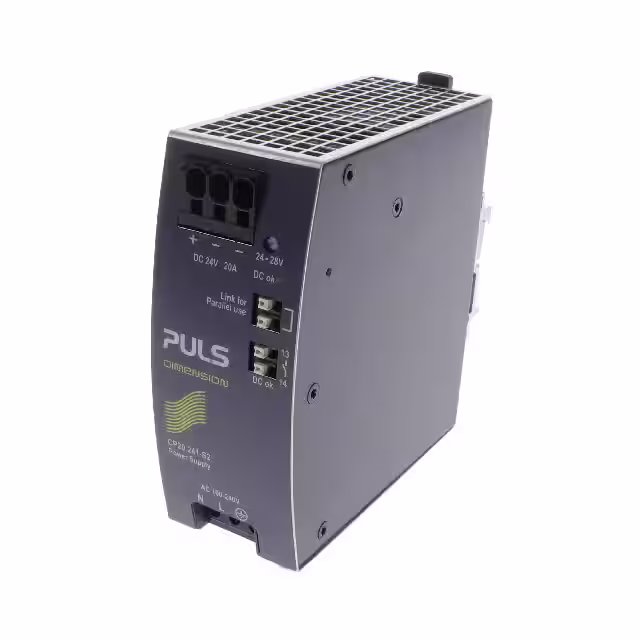

CP20.241-S2AC/DC DIN RAIL SUPPLY 24V 480W PULS, LP |
4,484 | 92.70 |
|
Datasheet |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 20A | 480W | 500 V | Industrial, ITE (Commercial) | 94.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201 |
|
QS10.301AC/DC DIN RAIL SUPPLY 30V 240W PULS, LP |
1,155 | 100.80 |
|
Datasheet |
DIMENSION Q (240W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 30V | - | - | - | - | - | 8A | 240W | 500 V | ITE (Commercial) | 93.5% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CP20.241-C1AC/DC DIN RAIL SUPPLY 24V 480W PULS, LP |
4,473 | 102.60 |
|
Datasheet |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 95.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201 |
|

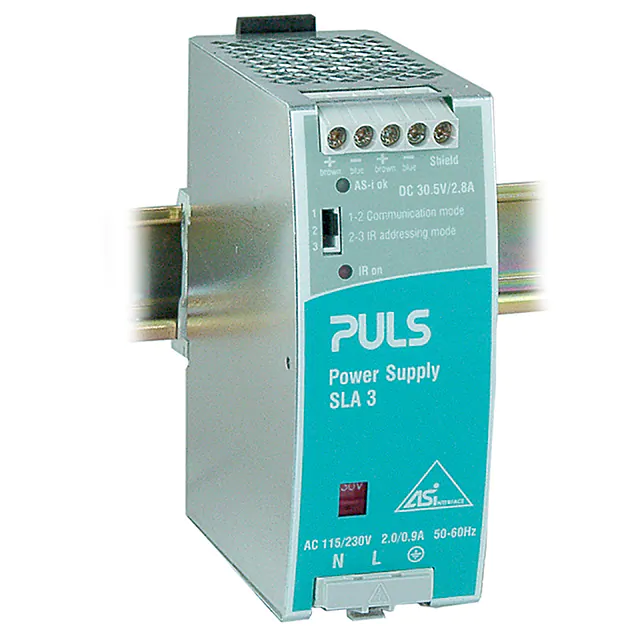

SLA3.100AC/DC DIN RAIL SUPPLY 30.6V 87W PULS, LP |
1,601 | 108.00 |
|
Datasheet |
SilverLine, AS-Interface® | Box | Active | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 30.6V | - | - | - | - | - | 2.8A | 87W | - | ITE (Commercial) | 90.5% | -25°C ~ 70°C (With Derating) | IP20 | ATEX, CSA, EAC, IEC, IECEx, NEC, UL | Class I Div 2; Class 2; 508; 60950-1 |
|
CPS20.121AC/DC DIN RAIL SUPPLY 12V 360W PULS, LP |
2,789 | 112.50 |
|
Datasheet |
DIMENSION C (405W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 30A | 360W | 3 kV | Hazardous Locations, ITE (Commercial) | 92.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CPS20.481AC/DC DIN RAIL SUPPLY 48V 480W PULS, LP |
4,473 | 112.50 |
|
Datasheet |
DIMENSION C (480W) | Box | Active | AC | 1 | 100 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Hazardous Locations, ITE (Commercial) | 93.9% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CPS20.361AC/DC DIN RAIL SUPPLY 36V 480W PULS, LP |
2,806 | 112.50 |
|
Datasheet |
DIMENSION C (480W) | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 36V | - | - | - | - | - | 13.3A | 480W | 3 kV | Hazardous Locations, ITE (Commercial) | 94.3% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CPS20.241-D1DC/DC DIN RAIL SUPPLY 24V 480W PULS, LP |
1,400 | 114.30 |
|
Datasheet |
DIMENSION C (480W) | Bulk | Active | DC | 1 | - | 88V | 360V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 93.4% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | ATEX, CSA, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
