Industrial, DIN Rail Power Supplies
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Input Type | Number of Outputs | AC Voltage - Input | DC Voltage - Input (Min) | DC Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

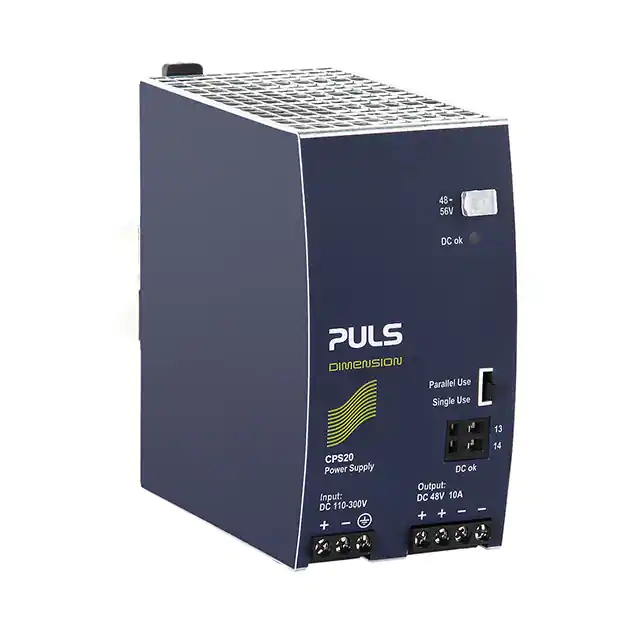

CPS20.481-D1DC/DC DIN RAIL SUPPLY 48V 480W PULS, LP |
3,450 | 123.30 |
|
Datasheet |
DIMENSION C (480W) | Bulk | Active | DC | 1 | - | 88V | 360V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial) | 92.8% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | ATEX, CSA, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
QS20.481AC/DC DIN RAIL SUPPLY 48V 480W PULS, LP |
1,200 | 126.90 |
|
Datasheet |
DIMENSION Q (480W) | Box | Active | AC or DC | 1 | 85 ~ 276 VAC | 88V | 187V | 48V | - | - | - | - | - | 10A | 480W | 500 V | Hazardous Locations, ITE (Commercial) | 94.3% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
QT20.481AC/DC DIN RAIL SUPPLY 48V 480W PULS, LP |
1,618 | 133.20 |
|
Datasheet |
DIMENSION Q (480W) | Box | Active | AC | 1 | 323 ~ 552 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 10A | 480W | 500 V | ITE (Commercial) | 95.4% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
XT40.242AC/DC DIN RAIL SUPPLY 24V 960W PULS, LP |
2,572 | 135.00 |
|
Datasheet |
DIMENSION X (960W) | Box | Active | AC | 1 | 360 ~ 552 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 500 V | Industrial, ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | IP20, PFC | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
|
XT40.482AC/DC DIN RAIL SUPPLY 48V 960W PULS, LP |
2,174 | 135.00 |
|
Datasheet |
DIMENSION X (960W) | Box | Active | AC | 1 | 360 ~ 552 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 20A | 960W | 3 kV | ITE (Commercial) | 96% | -25°C ~ 70°C (With Derating) | IP20 | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
QS20.361AC/DC DIN RAIL SUPPLY 36V 480W PULS, LP |
4,695 | 150.30 |
|
Datasheet |
DIMENSION Q (480W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 36V | - | - | - | - | - | 13.3A | 480W | 500 V | Hazardous Locations, ITE (Commercial) | 94% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
|
XT40.722AC/DC DIN RAIL SUPPLY 72V 960W PULS, LP |
2,849 | 155.70 |
|
Datasheet |
DIMENSION X (960W) | Box | Active | AC | 1 | 360 ~ 552 VAC (3 Phase) | - | - | 72V | - | - | - | - | - | 13A | 960W | 3 kV | ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | IP20 | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
|
QT20.361AC/DC DIN RAIL SUPPLY 36V 480W PULS, LP |
2,115 | 162.00 |
|
Datasheet |
DIMENSION Q (480W) | Box | Active | AC | 1 | 323 ~ 552 VAC (3 Phase) | - | - | 36V | - | - | - | - | - | 13.3A | 480W | 500 V | ITE (Commercial) | 94.6% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
QT40.242AC/DC DIN RAIL SUPPLY 24V 960W PULS, LP |
4,410 | 171.00 |
|
Datasheet |
DIMENSION Q (960W) | Box | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 500 V | ITE (Commercial) | 95.2% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
QS40.244AC/DC DIN RAIL SUPPLY 24V 960W PULS, LP |
1,795 | 171.00 |
|
Datasheet |
DIMENSION Q (960W) | Box | Active | AC | 1 | 170 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | 500 V | ITE (Commercial) | 94.6% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, DNV GL, EAC, IEC, SEMI, UL | F47; 508; 60950-1; 61010-2-201 |
