Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCP0704-1R8-RFIXED IND 1.8UH 8.5A 11 MOHM SMD |
234 | 0.51 |
|
Datasheet |
HCP0704 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.8 µH | ±25% | 8.5 A | 13A | Shielded | 11mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.165" (4.20mm) |
|

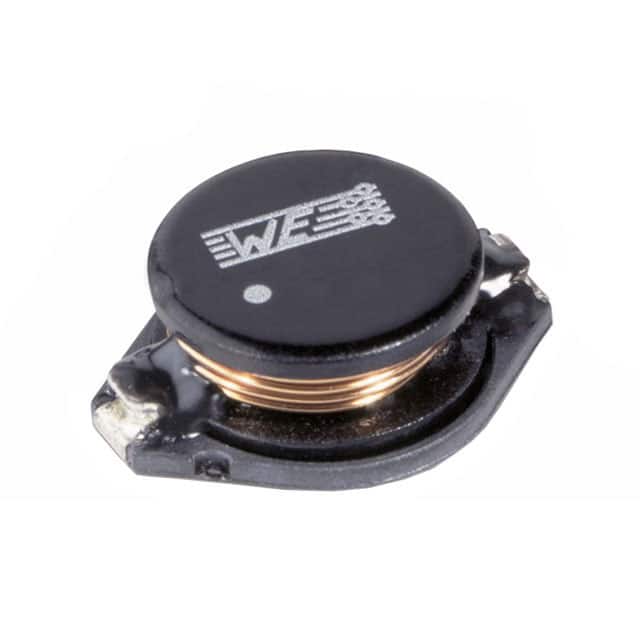

74455215FIXED IND 150UH 250MA 2 OHM SMD |
180 | 0.51 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 250 mA | 270mA | Unshielded | 2Ohm Max | - | 6MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.114" (2.90mm) |
|
CL0904-2-50TR-RFIXED IND 50NH 80A 0.00035OHM SM |
5,339 | 0.49 |
|
Datasheet |
CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | - | 0.35mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 2 Phase | Surface Mount | - | 0.787" L x 0.354" W (20.00mm x 9.00mm) | 0.157" (4.00mm) |
|
1025R-52KFIXED IND 22UH 144MA 3.3 OHM TH |
1,500 | 0.39 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Iron | 22 µH | ±10% | 144 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
744373680056FIXED IND 560NH 19A 0.0018OHM SM |
786 | 0.51 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 560 nH | ±20% | 19 A | 60.9A | Shielded | 1.8mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
1025R-54KFIXED IND 27UH 140MA 3.5 OHM TH |
498 | 0.37 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Iron | 27 µH | ±10% | 140 mA | - | Unshielded | 3.5Ohm Max | 50 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
744373680039FIXED IND 390NH 20.5A 0.0013OHM |
475 | 0.48 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 390 nH | ±20% | 20.5 A | 77.5A | Shielded | 1.3mOhm Max | - | 101MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
744373680045FIXED IND 450NH 20A 0.0015OHM SM |
454 | 0.48 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 450 nH | ±20% | 20 A | 64.5A | Shielded | 1.5mOhm Max | - | 82MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
HCM1A0805-150-RFIXED IND 15UH 2.5A 71 MOHM SMD |
348 | 0.52 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 2.5 A | 6A | Shielded | 71mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.315" W (8.10mm x 8.00mm) | 0.213" (5.40mm) |
|
|
744373680036FIXED IND 360NH 21A 0.0012OHM SM |
297 | 0.51 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 360 nH | ±20% | 21 A | 79.4A | Shielded | 1.2mOhm Max | - | 104MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
PA0515.321NLTFIXED IND 325NH 35A 0.63MOHM SMD |
2,454 | 0.54 |
|
Datasheet |
PA0515NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 325 nH | ±20% | 35 A | 43A | Shielded | 0.63mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.354" (9.00mm) |
|
PA0515.471NLTFIXED IND 470NH 23A 0.63MOHM SMD |
2,000 | 0.54 |
|
Datasheet |
PA0515NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 23 A | 30A | Shielded | 0.63mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.354" (9.00mm) |
|

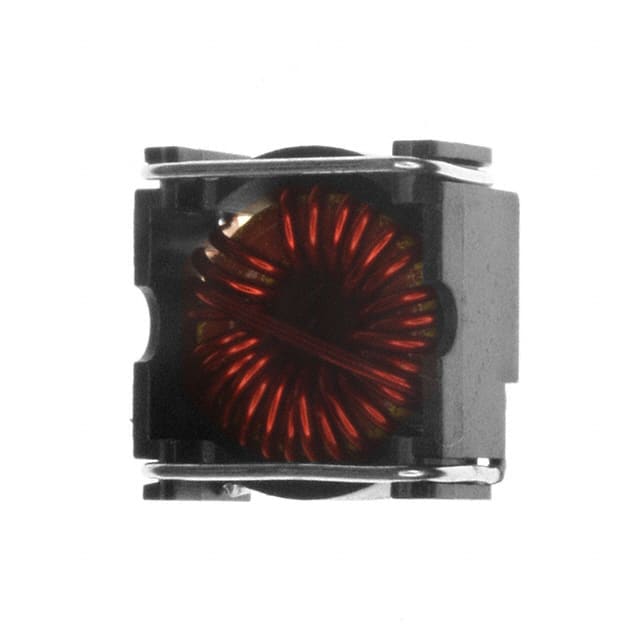

P0845SNLFIXED IND 10.2UH 4.3A 50MOHM SMD |
1,350 | 0.53 |
|
Datasheet |
LCI-44 | Nonstandard | Tube | Active | Toroidal | - | 10.2 µH | ±20% | 4.3 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|

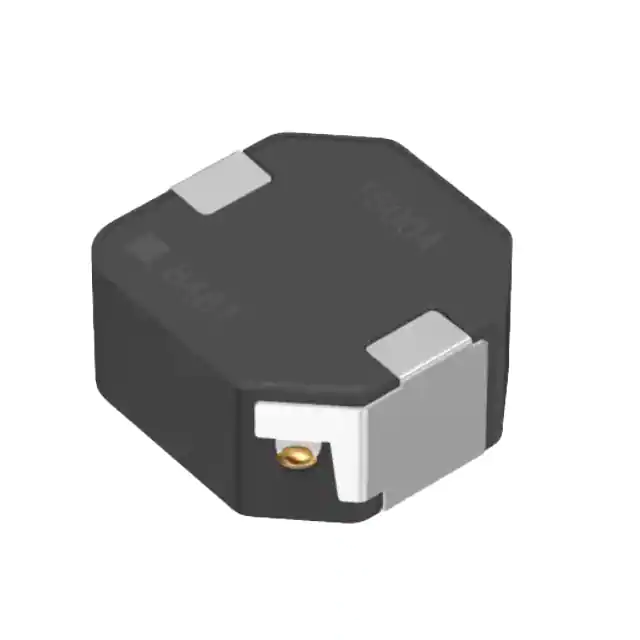

SPM12565CT-R22MINDUCTORS FOR POWER CIRCUITS, WO |
1,000 | 0.29 |
|
Datasheet |
SPM-CT | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 220 nH | ±20% | 29.1 A | 87.8A | Shielded | 1.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
.jpg)
|
FP2-S200-RFIXED IND 200NH 37A 0.28MOHM SMD |
858 | 0.38 |
|
Datasheet |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±15% | 37 A | 19A | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.197" (5.00mm) |
|
HCP0704-R60-RFIXED IND 600NH 14A 4.5 MOHM SMD |
1,704 | 0.52 |
|
Datasheet |
HCP0704 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 600 nH | ±25% | 14 A | 21A | Shielded | 4.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
8230-90-RCFIXED IND 820UH 40MA 65 OHM TH |
1,455 | 0.55 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 40 mA | - | Unshielded | 65Ohm Max | 30 @ 790kHz | 3.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
VLBU1007090T-R10LFIXED IND 100NH 70A 0.18MOHM SMD |
547 | 0.54 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 70 A | 120A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.354" (9.00mm) |
|
8230-62-RCFIXED IND 56UH 145MA 5.7 OHM TH |
349 | 0.55 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 145 mA | - | Unshielded | 5.7Ohm Max | 45 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-76-RCFIXED IND 220UH 73MA 21 OHM TH |
210 | 0.55 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 73 mA | - | Unshielded | 21Ohm Max | 30 @ 790kHz | 9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
