Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP3B-4R7-RFIXED IND 4.7UH 6.5A 11.4MOHM SM |
1,046 | 0.51 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 6.5 A | 7.7A | Unshielded | 11.4mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|
2000-100-H-RCFIXED IND 10UH 6.6A 15 MOHM TH |
341 | 0.52 |
|
Datasheet |
2000 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 10 µH | ±15% | 6.6 A | - | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia (17.27mm) | 0.410" (10.41mm) |
|
|
2000-5R6-V-RCFIXED IND 5.6UH 9.7A 6.9 MOHM TH |
315 | 0.52 |
|
Datasheet |
2000 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 5.6 µH | ±20% | 9.7 A | - | Unshielded | 6.9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - |
|
FP1107R1-R30-RFIXED IND 300NH 55A 0.29MOHM SMD |
120 | 0.42 |
|
Datasheet |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±10% | 55 A | 35A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.295" (7.50mm) |
|
MPXV1D1250L2R2FIXED IND 2.2UH 21A 4.8MOHM SMD |
500 | 0.55 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 21 A | 28.5A | Shielded | 4.8mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPXV1D1250L4R7FIXED IND 4.7UH 14.4A 10.1 MOHM |
500 | 0.55 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 14.4 A | 17.5A | Shielded | 10.1mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPXV1D1250L6R8FIXED IND 6.8UH 11.6A 15.5 MOHM |
492 | 0.55 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 11.6 A | 14A | Shielded | 15.5mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
MPX1D1250L6R8FIXED IND 6.8UH 11.6A 15.5 MOHM |
490 | 0.52 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 11.6 A | 14A | Shielded | 15.5mOhm Max | - | 10MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
SRP1265WA-2R2MIND,13.6X12.6X6.2MM,2.2UH20%,23A |
477 | 0.35 |
|
Datasheet |
SRP1265WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 23 A | 26A | Shielded | 4.2mOhm Max | 20 @ 100kHz | 25MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.535" L x 0.496" W (13.60mm x 12.60mm) | 0.256" (6.50mm) |
|
|
MPXV1D1250L330FIXED IND 33UH 5.4A 72 MOHM SMD |
415 | 0.55 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 5.4 A | 7.5A | Shielded | 72mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
74437321056FIXED IND 5.6UH 1.7A 0.208OHM SM |
3,974 | 0.48 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±20% | 1.7 A | 3.65A | Shielded | 208mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4012 | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.047" (1.20mm) |
|
|
74437321082FIXED IND 8.2UH 1.3A 0.376OHM SM |
3,151 | 0.51 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 8.2 µH | ±20% | 1.3 A | 2.85A | Shielded | 376mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4012 | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.047" (1.20mm) |
|

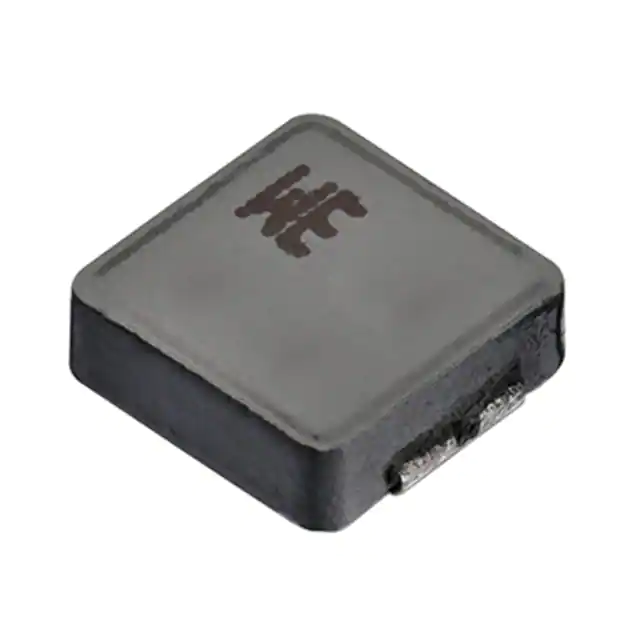

74437334056FIXED IND 5.6UH 2.1A 0.122OHM SM |
2,933 | 0.48 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±20% | 2.1 A | 7A | Shielded | 122mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
744373340033FIXED IND 330NH 9A 0.0073OHM SMD |
2,721 | 0.48 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 330 nH | ±20% | 9 A | 29.3A | Shielded | 7.3mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
CDMT40D30HF-6R8NCFIXED IND 6.8UH 2.7A 62 MOHM SMD |
1,581 | 0.54 |
|
Datasheet |
CDMT40D30 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±30% | 2.7 A | 3.4A | Shielded | 62mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.163" L x 0.163" W (4.15mm x 4.15mm) | 0.122" (3.10mm) |
|

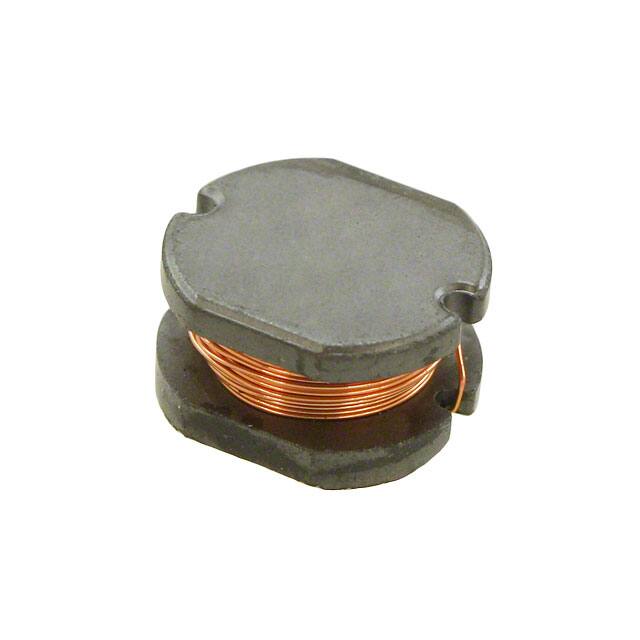

76877630FIXED IND 1MH 380MA 2.6 OHM SMD |
1,237 | 0.51 |
|
Datasheet |
WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 380 mA | 380mA | Unshielded | 2.6Ohm Max | - | 1.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
RLF7045T-4R7N2R5-DFIXED IND 4.7UH 2.5A 36 MOHM SMD |
972 | 0.53 |
|
Datasheet |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.5 A | 3.3A | Shielded | 36mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.189" (4.80mm) |
|
|
744373210047FIXED IND 470NH 5.9A 0.02OHM SMD |
735 | 0.51 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±20% | 5.9 A | 12.5A | Shielded | 20mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4012 | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.047" (1.20mm) |
|
|
74437321015FIXED IND 1.5UH 3A 0.0633OHM SMD |
465 | 0.51 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.5 µH | ±20% | 3 A | 5.1A | Shielded | 63.3mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4012 | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.047" (1.20mm) |
|
|
MPX1D1264LR22FIXED IND 220NH 53A 0.9 MOHM SMD |
328 | 0.54 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 53 A | 100A | Shielded | 0.9mOhm Max | - | 90MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
