Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

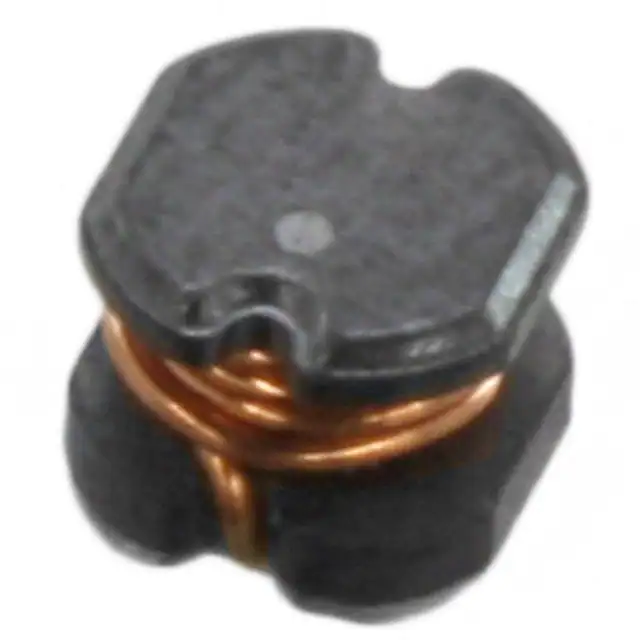

744773014FIXED IND 1.4UH 3.4A 56 MOHM SMD |
1,239 | 0.34 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.4 µH | ±20% | 3.4 A | 5.04A | Unshielded | 56mOhm Max | - | 103MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
784773133FIXED IND 33UH 860MA 540MOHM SMD |
1,175 | 0.34 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 860 mA | 900mA | Unshielded | 540mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
PF0601.473NLFIXED IND 47UH 500MA 515MOHM SMD |
595 | 0.35 |
|
Datasheet |
PF0601NL | Nonstandard | Tray | Active | Wirewound | - | 47 µH | ±20% | 500 mA | 500mA | Shielded | 515mOhm Max | - | 14MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
|
78477310FIXED IND 10UH 1.45A 182MOHM SMD |
580 | 0.34 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.45 A | 1.74A | Unshielded | 182mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
UP5-221-RFIXED IND 220UH 1.2A 380MOHM SMD |
478 | 0.54 |
|
Datasheet |
UNI-PAC™ 5 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 1.2 A | 2.4A | Unshielded | 380mOhm Max | - | 3.7MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|

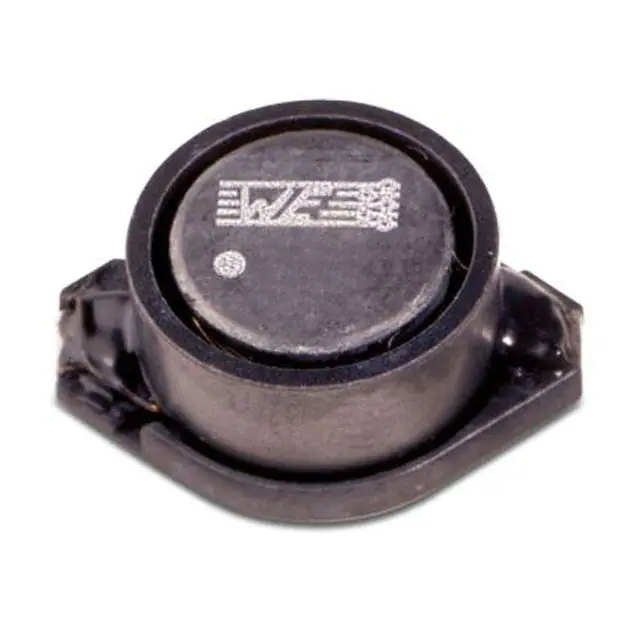

74451247FIXED IND 470UH 190MA 1.8OHM SMD |
1,490 | 0.36 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 470 µH | ±20% | 190 mA | 20mA | Shielded | 1.8Ohm Max | - | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
SBC7-101-192FIXED IND 100UH 1.9A 120 MOHM TH |
1,221 | 0.37 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.9 A | 3.6A | Unshielded | 120mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
RL875S-271K-RCFIXED IND 270UH 450MA 860MOHM TH |
999 | 0.35 |
|
Datasheet |
RL875S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 450 mA | - | Shielded | 860mOhm Max | 40 @ 796kHz | 4MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
SBC7-331-941FIXED IND 330UH 940MA 450MOHM TH |
970 | 0.35 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 940 mA | 2A | Unshielded | 450mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.551" (14.00mm) |
|
|
RL875S-680K-RCFIXED IND 68UH 890MA 210 MOHM TH |
718 | 0.35 |
|
Datasheet |
RL875S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 890 mA | - | Shielded | 210mOhm Max | 28 @ 2.52MHz | 10.5MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
RL875S-101K-RCFIXED IND 100UH 740MA 320MOHM TH |
480 | 0.37 |
|
Datasheet |
RL875S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 740 mA | - | Shielded | 320mOhm Max | 35 @ 796kHz | 6.5MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
SBC7-220-432FIXED IND 22UH 4.3A 30 MOHM TH |
478 | 0.37 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.3 A | 7.8A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
|
RL875S-221K-RCFIXED IND 220UH 500MA 760MOHM TH |
320 | 0.37 |
|
Datasheet |
RL875S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 500 mA | - | Shielded | 760mOhm Max | 60 @ 796kHz | 5.5MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
RL875S-682K-RCFIXED IND 6.8MH 89MA 23 OHM TH |
168 | 0.35 |
|
Datasheet |
RL875S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 89 mA | - | Shielded | 23Ohm Max | 95 @ 252kHz | 500kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
SBC7-680-222FIXED IND 68UH 2.2A 90 MOHM TH |
166 | 0.35 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 2.2 A | 4.5A | Unshielded | 90mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
784787068WE-PD2SA SMT SHIELDED POWER INDU |
1,683 | 0.36 |
|
Datasheet |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±25% | 3 A | 3A | Shielded | 33mOhm Max | - | 30MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
784787151WE-PD2SA SMT SHIELDED POWER INDU |
1,495 | 0.36 |
|
Datasheet |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±25% | 710 mA | 700mA | Shielded | 719mOhm Max | - | 4MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
784787820WE-PD2SA SMT SHIELDED POWER INDU |
1,475 | 0.36 |
|
Datasheet |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±25% | 1.04 A | 900mA | Shielded | 328mOhm Max | - | 6MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
784787082WE-PD2SA SMT SHIELDED POWER INDU |
1,000 | 0.36 |
|
Datasheet |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±25% | 2.7 A | 2.8A | Shielded | 39mOhm Max | - | 28MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
784787027WE-PD2SA SMT SHIELDED POWER INDU |
998 | 0.36 |
|
Datasheet |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.7 µH | ±25% | 4.35 A | 4.5A | Shielded | 17mOhm Max | - | 60MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
