Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV1D1040L330FIXED IND 33UH 3.7A 119.7MOHM SM |
1,005 | 0.36 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 3.7 A | 5A | Shielded | 119.7mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
SPM4030T-1R5M-HZFIXED IND 1.5UH 3.6A 25.63 MOHM |
603 | 0.37 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3.6 A | 3.6A | Shielded | 25.63mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
P1167.273NLTFIXED IND 27UH 1.2A 130 MOHM SMD |
463 | 0.36 |
|
Datasheet |
P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±20% | 1.2 A | 1.2A | Shielded | 130mOhm Max | - | 15MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
|
MPXV1D1040L220FIXED IND 22UH 4.7A 76.1MOHM SMD |
457 | 0.36 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 4.7 A | 7A | Shielded | 76.1mOhm Max | - | 7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPXV1D1040L150FIXED IND 15UH 5.7A 51.2MOHM SMD |
284 | 0.36 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 5.7 A | 8.5A | Shielded | 51.2mOhm Max | - | 8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
P1166.104NLTFIXED IND 100UH 560MA 580MOHM SM |
243 | 0.36 |
|
Datasheet |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 560 mA | 560mA | Shielded | 580mOhm Max | - | 7.5MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
MPIA2512V2-3R3-RFIXED IND 3.3UH 1.8A 135MOHM SMD |
190 | 0.36 |
|
Datasheet |
MPIA25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 1.8 A | 2.8A | Shielded | 135mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
SBCP-14HY152BFIXED IND 1.5MH 470MA 1.52OHM TH |
114 | 0.51 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 470 mA | 800mA | Unshielded | 1.52Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
PM127SH-150M-RCFIXED IND 15UH 5.2A 28.5MOHM SMD |
134 | 0.37 |
|
Datasheet |
PM127SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.2 A | 5A | Shielded | 28.5mOhm Max | 26 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

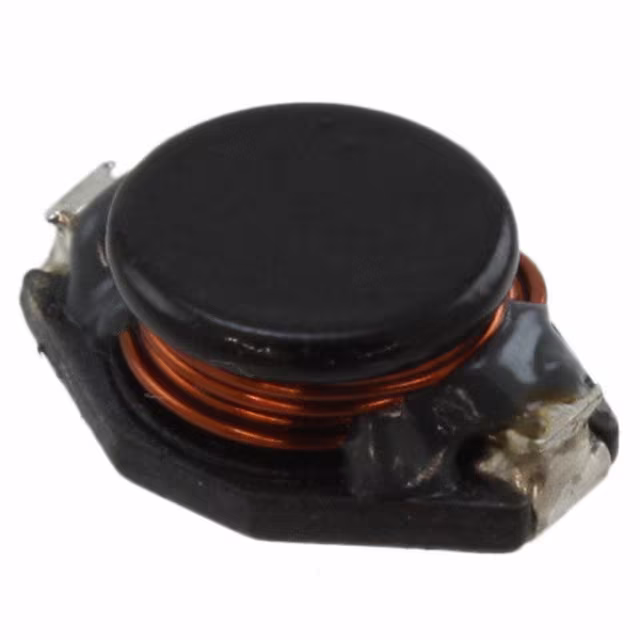

UP2UC-220-RFIXED IND 22UH 2.7A 85 MOHM SMD |
1,862 | 0.32 |
|
Datasheet |
UNI-PAC™ 2UC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2.7 A | 2.6A | Unshielded | 85mOhm Max | - | 19MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.21mm) |
|
MPEV1D1040L4R7FIXED IND 4.7UH 10.3A 15.9 MOHM |
1,252 | 0.36 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 10.3 A | 14A | Shielded | 15.9mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPEV1D1040L3R3FIXED IND 3.3UH 11.4A 12.8 MOHM |
987 | 0.36 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 11.4 A | 15A | Shielded | 12.8mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPEV1D1040L150FIXED IND 15UH 5.7A 51.2MOHM SMD |
985 | 0.36 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 5.7 A | 8.5A | Shielded | 51.2mOhm Max | - | 8MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
MPX1D1250L4R7FIXED IND 4.7UH 14.4A 10.1 MOHM |
480 | 0.52 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 14.4 A | 17.5A | Shielded | 10.1mOhm Max | - | 13MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPEV1D1040L1R0FIXED IND 1UH 21.1A 3.8MOHM SMD |
465 | 0.36 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 21.1 A | 29A | Shielded | 3.8mOhm Max | - | 35MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
#B953AS-180M=P3FIXED IND 18UH 3.2A 40 MOHM SMD |
281 | 0.35 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 3.2 A | 4.1A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
|
|
MPIA2512V2-1R5-RFIXED IND 1.5UH 2.3A 77MOHM SMD |
11,897 | 0.44 |
|
Datasheet |
MPIA25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.5 µH | ±20% | 2.3 A | 3.2A | Shielded | 77mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
MPI4020V2-R33-RFIXED IND 330NH 9.5A 9 OHM SMD |
8,828 | 0.26 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 9.5 A | 12A | Shielded | 9Ohm Max | - | 113MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|
PM5022S-220M-RCFIXED IND 22UH 3A 53 MOHM SMD |
4,904 | 0.32 |
|
Datasheet |
PM5022S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3 A | 6.2A | Shielded | 53mOhm | 51 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.280" (7.10mm) |
|

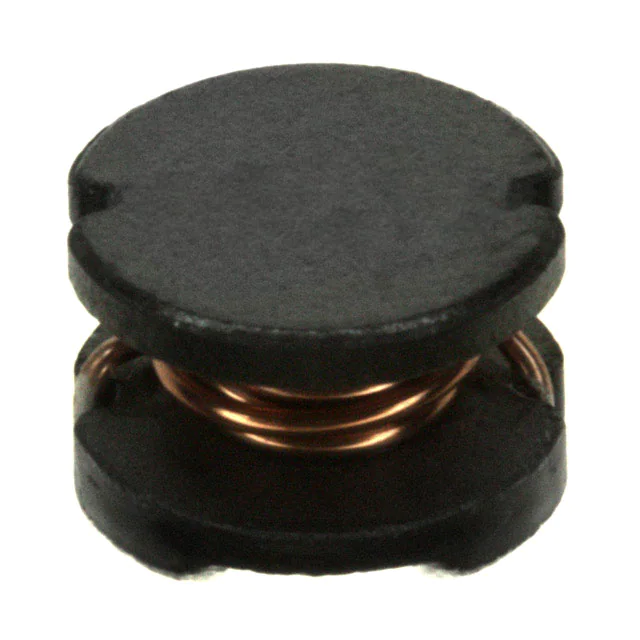

7847730FIXED IND 1UH 4A 49 MOHM SMD |
4,272 | 0.34 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 4 A | 5.72A | Unshielded | 49mOhm Max | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
