Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5725-RCFIXED IND 8MH 1A 3.34 OHM TH |
210 | 2.31 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 8 mH | ±15% | 1 A | - | Unshielded | 3.34Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | - |
|
|
5723-RCFIXED IND 1.8MH 2.5A 550 MOHM TH |
188 | 2.31 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 1.8 mH | ±15% | 2.5 A | - | Unshielded | 550mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | - |
|
HC3-2R2-RFIXED IND 2.2UH 55.5A 0.7MOHM SM |
2,137 | 2.33 |
|
Datasheet |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 55.5 A | 60A | Unshielded | 0.7mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
|
MPXV1D2213L330FIXED IND 33UH 17.5A 16 MOHM SMD |
251 | 2.57 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 17.5 A | 20.5A | Shielded | 16mOhm Max | - | 2.9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
IHXL1500VZEBR68M51FIXED IND 680NH 235A 0.13MOHM TH |
103 | 6.47 |
|
Datasheet |
IHXL-1500VZ-51 | Nonstandard | Bulk | Active | - | - | 680 nH | ±20% | 235 A | - | Shielded | 0.13mOhm Max | - | - | - | -55°C ~ 155°C | 500 kHz | - | Through Hole | - | 1.500" L x 1.500" W (38.10mm x 38.10mm) | 0.872" (22.15mm) |
|
ER1537-08KRFIXED IND 680NH 1.1A 150 MOHM TH |
3,351 | 3.03 |
|
Datasheet |
Military, MIL-PRF-39010/06, ER1537 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 680 nH | ±10% | 1.1 A | - | Unshielded | 150mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
85081-F0FIXED IND 10.7UH 280 MOHM SMD |
1,496 | 15.25 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Thick Film | Ceramic, Ferrite | 10.7 µH | ±20% | - | 950mA | Shielded | 280mOhm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.400" L x 0.400" W (10.16mm x 10.16mm) | - |
|
CH-12FIXED IND 15MH 12A 100 MOHM CHAS |
2,748 | 20.39 |
|
Datasheet |
- | Nonstandard | Box | Active | - | - | 15 mH | - | 12 A | - | Unshielded | 100mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.252" L x 4.000" W (133.40mm x 101.60mm) | 4.437" (112.70mm) |
|
MLG1005S12NHT000FIXED IND 12NH 400MA 400MOHM SMD |
22,026 | 0.03 |
|
Datasheet |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 12 nH | ±3% | 400 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 2.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MLF2012E5R6JT000FIXED IND 5.6UH 15MA 600MOHM SMD |
11,310 | 0.04 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 5.6 µH | ±5% | 15 mA | - | Shielded | 600mOhm Max | 50 @ 4MHz | 45MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLG1005S6N8HT000FIXED IND 6.8NH 600MA 250MOHM SM |
10,123 | 0.03 |
|
Datasheet |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 6.8 nH | ±3% | 600 mA | - | Unshielded | 250mOhm Max | 8 @ 100MHz | 3.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
 TDK.jpg)
|

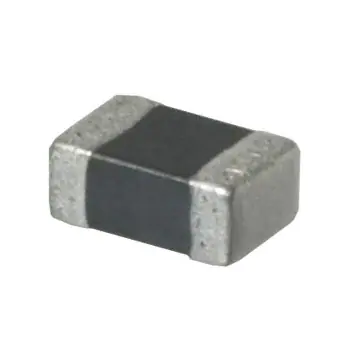

MLF2012E5R6JTD25FIXED IND 5.6UH 15MA 600MOHM SMD |
7,591 | 0.06 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 5.6 µH | ±5% | 15 mA | - | Shielded | 600mOhm Max | 50 @ 4MHz | 45MHz | AEC-Q200 | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012A1R5JT000FIXED IND 1.5UH 80MA 400MOHM SMD |
7,243 | 0.04 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±5% | 80 mA | - | Shielded | 400mOhm Max | 45 @ 10MHz | 100MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
MLF2012DR33JT000FIXED IND 330NH 250MA 400MOHM SM |
6,860 | 0.04 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 330 nH | ±5% | 250 mA | - | Shielded | 400mOhm Max | 20 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
MLG1005S56NHT000FIXED IND 56NH 200MA 1.3 OHM SMD |
6,554 | 0.03 |
|
Datasheet |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 56 nH | ±3% | 200 mA | - | Unshielded | 1.3Ohm Max | 8 @ 100MHz | 1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLF2012A3R9JT000FIXED IND 3.9UH 30MA 650MOHM SMD |
6,472 | 0.04 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.9 µH | ±5% | 30 mA | - | Shielded | 650mOhm Max | 45 @ 10MHz | 55MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012DR47JT000FIXED IND 470NH 200MA 500MOHM SM |
5,975 | 0.04 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±5% | 200 mA | - | Shielded | 500mOhm Max | 25 @ 25MHz | 160MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012E8R2JT000FIXED IND 8.2UH 15MA 700MOHM SMD |
5,034 | 0.04 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 8.2 µH | ±5% | 15 mA | - | Shielded | 700mOhm Max | 50 @ 4MHz | 35MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012E100MT000FIXED IND 10UH 15MA 800 MOHM SMD |
3,889 | 0.03 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±20% | 15 mA | - | Shielded | 800mOhm Max | 50 @ 2MHz | 30MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
MLF2012D68NMT000FIXED IND 68NH 300MA 150MOHM SMD |
3,667 | 0.03 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 68 nH | ±20% | 300 mA | - | Shielded | 150mOhm Max | 15 @ 50MHz | 500MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
