Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1120-102K-RCFIXED IND 1MH 1A 818 MOHM TH |
246 | 1.86 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 1 A | - | Unshielded | 818mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-221K-RCFIXED IND 220UH 2.8A 150 MOHM TH |
219 | 1.86 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 2.8 A | - | Unshielded | 150mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-222K-RCFIXED IND 2.2MH 800MA 1.54OHM TH |
161 | 1.86 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 800 mA | - | Unshielded | 1.54Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|

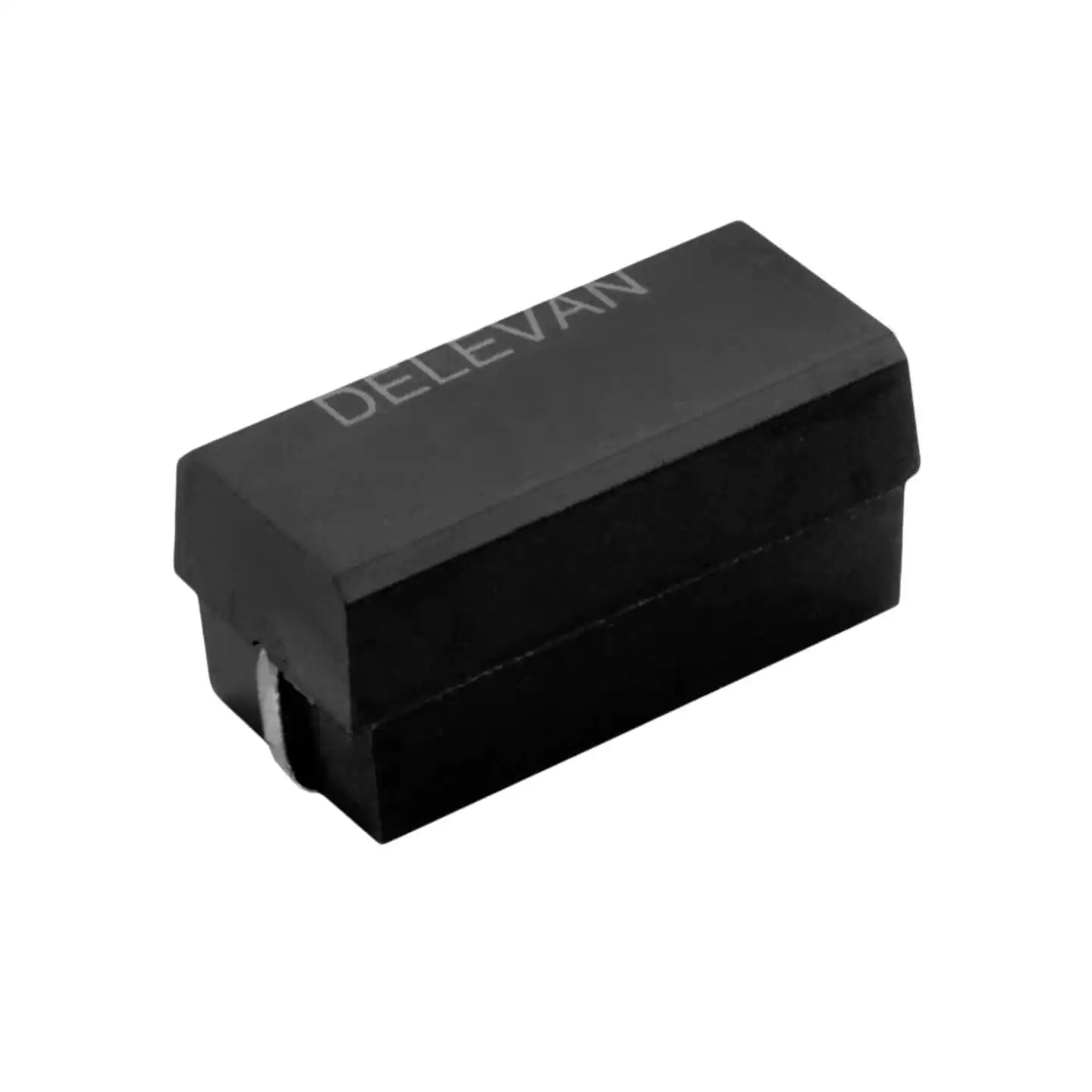

5500R-126KFIXED IND 12MH 330MA 9.34OHM SMD |
868 | 1.63 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 mH | ±10% | 330 mA | 160mA | Unshielded | 9.34Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
SH150C-3.00-110FIXED IND 110UH 3A 90 MOHM TH |
384 | 1.79 |
|
Datasheet |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 110 µH | ±20% | 3 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
B82559A9103A024FIXED IND 10UH 32.1A 1.85MOHM SM |
223 | 2.15 |
|
Datasheet |
ERU24 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 32.1 A | 31.1A | Shielded | 1.85mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.972" L x 0.898" W (24.70mm x 22.80mm) | 0.854" (21.70mm) |
|

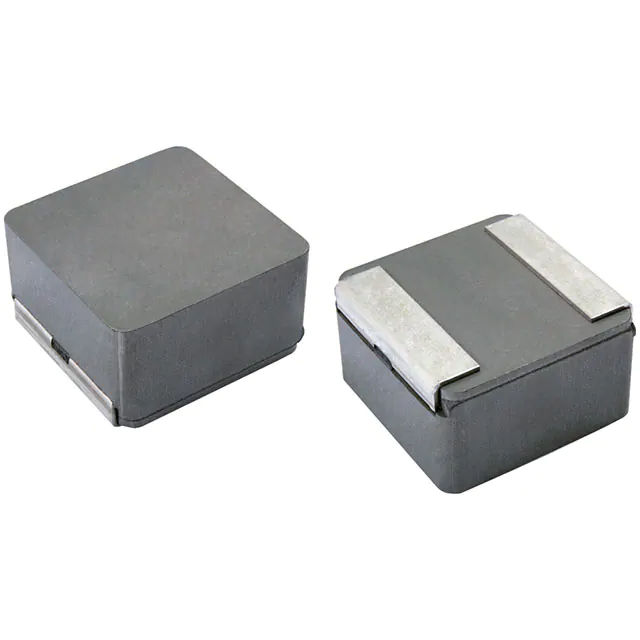

IHLP8787MZER820M5AFIXED IND 82UH 10.2A 34.2MOHM SM |
227 | 2.08 |
|
Datasheet |
IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 82 µH | ±20% | 10.2 A | 9A | Shielded | 34.2mOhm Max | - | 2.07MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
1110-221K-RCFIXED IND 220UH 1.6A 240 MOHM TH |
354 | 2.01 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.6 A | - | Unshielded | 240mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-561K-RCFIXED IND 560UH 800MA 696MOHM TH |
298 | 2.01 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 800 mA | - | Unshielded | 696mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-331K-RCFIXED IND 330UH 1.3A 336 MOHM TH |
168 | 2.01 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.3 A | - | Unshielded | 336mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-220K-RCFIXED IND 22UH 5.5A 20 MOHM TH |
431 | 2.01 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 5.5 A | - | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-150K-RCFIXED IND 15UH 7.2A 15 MOHM TH |
317 | 2.01 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 7.2 A | - | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
1538M02FIXED IND 10UH 9A 17 MOHM TH |
141 | 2.17 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 10 µH | ±10% | 9 A | - | Unshielded | 17mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.630" Dia x 1.120" L (16.00mm x 28.45mm) | - |
|
IHLP8787MZER2R2M51FIXED IND 2.2UH 58A 1.25MOHM SMD |
579 | 2.01 |
|
Datasheet |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 58 A | 48A | Shielded | 1.25mOhm Max | - | 17.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
DC780R-184KFIXED IND 180UH 4A 110 MOHM TH |
384 | 1.92 |
|
Datasheet |
DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 4 A | 8.1A | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
|
IHLP8787MZER4R7M51FIXED IND 4.7UH 47A 1.84MOHM SMD |
468 | 2.01 |
|
Datasheet |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 47 A | 37A | Shielded | 1.84mOhm Max | - | 10.2MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
IHLP8787MZER3R3M51FIXED IND 3.3UH 49A 1.77MOHM SMD |
333 | 2.01 |
|
Datasheet |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 49 A | 41A | Shielded | 1.77mOhm Max | - | 12.8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHTH1125KZEB330M5AFIXED IND 33UH 15.9A 11.3MOHM TH |
249 | 2.02 |
|
Datasheet |
IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 33 µH | ±20% | 15.9 A | 18A | Shielded | 11.3mOhm Max | - | 4.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
|
|
IHTH1125KZEB1R0M5AFIXED IND 1UH 90A 0.5 MOHM TH |
115 | 2.02 |
|
Datasheet |
IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 1 µH | ±20% | 90 A | 65A | Shielded | 0.5mOhm Max | - | 29.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
|
1130-221K-RCFIXED IND 220UH 5.5A 80 MOHM TH |
191 | 2.07 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 5.5 A | - | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
