Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7843340470FIXED IND 4.7UH 5A 28.9MOHM SMD |
510 | 0.54 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5 A | 9.6A | Shielded | 28.9mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 8090 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
744373360047FIXED IND 470NH 9.2A 0.0074OHM |
440 | 0.54 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±20% | 9.2 A | 21.5A | Shielded | 7.4mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
VLBU10060120T-R10L-1FIXED IND 100NH 83A 0.12MOHM SMD |
300 | 0.59 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 83 A | 133A | Unshielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
7687714681FIXED IND 680UH 550MA 2.25OHM SM |
267 | 0.55 |
|
Datasheet |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 550 mA | 610mA | Shielded | 2.25Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.236" (6.00mm) |
|
|
7687714222FIXED IND 2.2MH 260MA 6.5OHM SMD |
230 | 0.55 |
|
Datasheet |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 mH | ±20% | 260 mA | 370mA | Shielded | 6.5Ohm Max | - | 1.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.236" (6.00mm) |
|
1210R-221KFIXED IND 220NH 805MA 320MOHM SM |
7,087 | 0.50 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±10% | 805 mA | - | Unshielded | 320mOhm Max | 30 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210R-470KFIXED IND 47NH 636MA 300MOHM SMD |
4,522 | 0.50 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Phenolic | 47 nH | ±10% | 636 mA | - | Unshielded | 300mOhm Max | 30 @ 50MHz | 800MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210R-821KFIXED IND 820NH 556MA 670MOHM SM |
1,521 | 0.50 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 820 nH | ±10% | 556 mA | - | Unshielded | 670mOhm Max | 30 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
PE-53819SNLTFIXED IND 173UH 540MA 600MOHM SM |
978 | 0.54 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 173 µH | ±20% | 540 mA | - | Shielded | 600mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
1210R-101KFIXED IND 100NH 1.018A 200 MOHM |
882 | 0.50 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 100 nH | ±10% | 1.018 A | - | Unshielded | 200mOhm Max | 30 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|

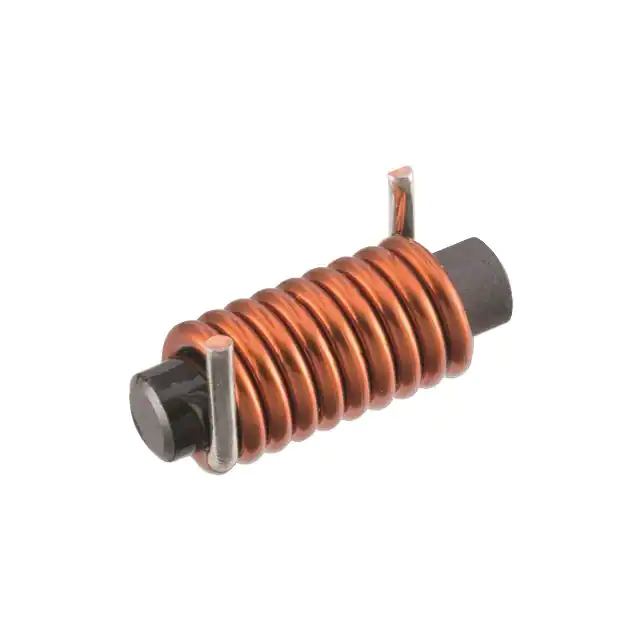

7847111020WE-RCIT ROD CORE INDUCTOR THT 2. |
602 | 0.55 |
|
Datasheet |
WE-RCIT | Radial, Horizontal Cylinder (Open) | Bulk | Active | Wirewound | - | 2 µH | ±25% | 7 A | 18A | Unshielded | 6.5mOhm | - | 180MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.232" Dia x 0.539" L (5.90mm x 13.70mm) | - |
|
|
1210R-100KFIXED IND 10NH 966MA 130MOHM SMD |
408 | 0.50 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Phenolic | 10 nH | ±10% | 966 mA | - | Unshielded | 130mOhm Max | 30 @ 50MHz | 2GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
UP2B-4R7-RFIXED IND 4.7UH 5.5A 16.5MOHM SM |
347 | 0.50 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5.5 A | 4.2A | Unshielded | 16.5mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
B82464P4154M000FIXED IND 150UH 850MA 320MOHM SM |
289 | 0.59 |
|
Datasheet |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 850 mA | 900mA | Shielded | 320mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
PE-53810SNLFIXED IND 176UH 300MA 1.4OHM SMD |
774 | 0.52 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 176 µH | ±20% | 300 mA | - | Shielded | 1.4Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|

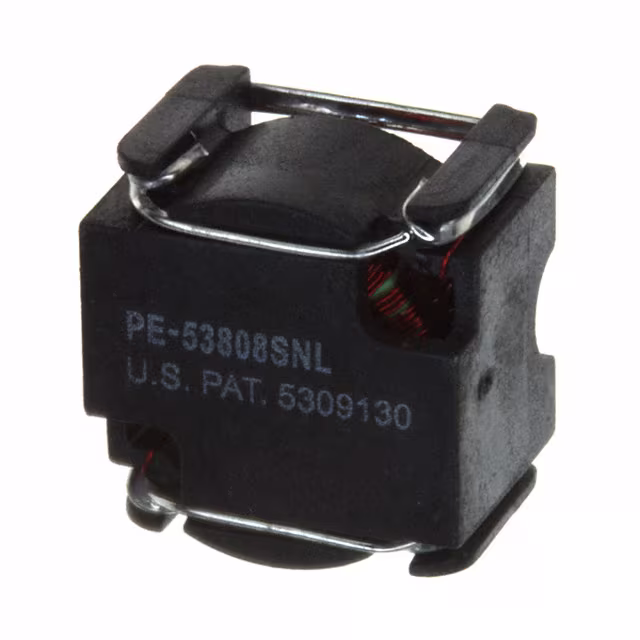

PE-53808SNLFIXED IND 374UH 200MA 2.7OHM SMD |
544 | 0.53 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 374 µH | ±20% | 200 mA | - | Shielded | 2.7Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
74455247FIXED IND 470UH 160MA 6.8OHM SMD |
1,620 | 0.55 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 160 mA | 150mA | Unshielded | 6.8Ohm Max | - | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
.jpg)
|
AIRD-06-182KFIXED IND 1.8MH 800MA 1.39OHM TH |
819 | 0.83 |
|
Datasheet |
AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 800 mA | 2.2A | Unshielded | 1.39Ohm Max | 15 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
IHLP6767GZERR47M5AFIXED IND 470NH 65A 0.95MOHM SMD |
560 | 0.98 |
|
Datasheet |
IHLP-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 65 A | 76A | Shielded | 0.95mOhm Max | - | 52.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
1025-52KFIXED IND 22UH 144MA 3.3 OHM TH |
5,383 | 0.43 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 22 µH | ±10% | 144 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
