Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5900-3R9-RCFIXED IND 3.9UH 5.9A 12 MOHM TH |
788 | 0.56 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 5.9 A | 14.4A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-220-RCFIXED IND 22UH 3.8A 30 MOHM TH |
614 | 0.56 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 3.8 A | 5.7A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
CDRH10D60BT150NP-330MCFIXED IND 33UH 2.9A 57 MOHM SMD |
468 | 0.55 |
|
Datasheet |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 2.9 A | 3.35A | Shielded | 57mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.250" (6.35mm) |
|
|
5900-221-RCFIXED IND 220UH 1.5A 185 MOHM TH |
172 | 0.56 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.5 A | 1.8A | Unshielded | 185mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
7447786001FIXED IND 1UH 5A 34 MOHM SMD |
3,083 | 0.53 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±25% | 5 A | 5.5A | Shielded | 34mOhm Max | - | 180MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.201" (5.10mm) |
|
|
7447786004FIXED IND 4.7UH 2.8A 65 MOHM SMD |
2,252 | 0.53 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±25% | 2.8 A | 2.8A | Shielded | 65mOhm Max | - | 72MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.201" (5.10mm) |
|
7443310220FIXED IND 2.2UH 16A 4.3 MOHM SMD |
729 | 0.52 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 16 A | 48A | Shielded | 4.3mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443310100FIXED IND 1UH 21A 2.5 MOHM SMD |
609 | 0.52 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 21 A | 52A | Shielded | 2.5mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
7447471100FIXED IND 10UH 5.1A 22 MOHM TH |
515 | 0.52 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.1 A | 4.2A | Shielded | 22mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
7447786002FIXED IND 2.2UH 3.5A 49 MOHM SMD |
423 | 0.53 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±25% | 3.5 A | 4A | Shielded | 49mOhm Max | - | 115MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.201" (5.10mm) |
|
|
7443310470FIXED IND 4.7UH 11.5A 11MOHM SMD |
410 | 0.52 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 11.5 A | 33A | Shielded | 11mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
UP2B-1R0-RFIXED IND 1UH 9.3A 6.5 MOHM SMD |
358 | 0.48 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 9.3 A | 9.9A | Unshielded | 6.5mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
|
7443320150FIXED IND 1.5UH 19.5A 3.5MOHM SM |
334 | 0.52 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 19.5 A | 27A | Shielded | 3.5mOhm Max | - | 92MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
7449152066FIXED IND 66NH 32A 0.99 MOHM SMD |
292 | 0.53 |
|
Datasheet |
WE-ACHC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 66 nH | ±20% | 32 A | - | Unshielded | 0.99mOhm Max | 245 @ 100MHz | 457MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.472" L x 0.453" W (12.00mm x 11.50mm) | 0.346" (8.80mm) |
|
|
7449152090FIXED IND 90NH 30A 1.21 MOHM SMD |
286 | 0.53 |
|
Datasheet |
WE-ACHC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 90 nH | ±20% | 30 A | - | Unshielded | 1.21mOhm Max | 226 @ 100MHz | 359MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.472" L x 0.453" W (12.00mm x 11.50mm) | 0.409" (10.40mm) |
|
|

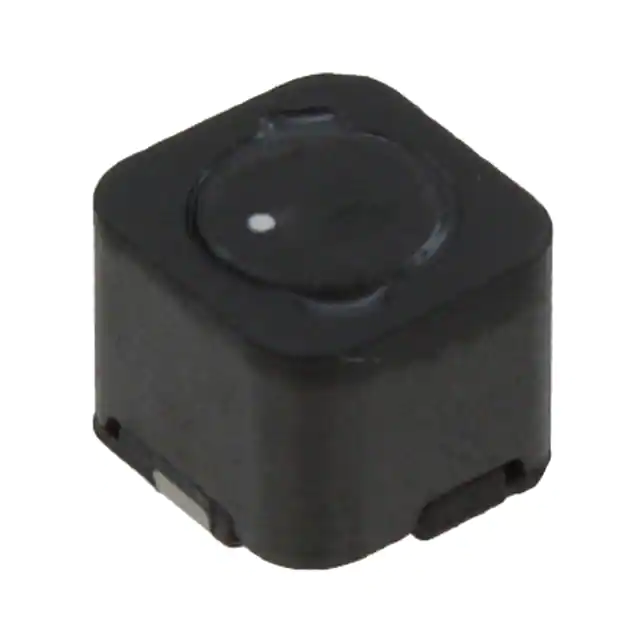

7447786006FIXED IND 6.8UH 2.5A 75 MOHM SMD |
273 | 0.53 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±25% | 2.5 A | 2.3A | Shielded | 75mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.201" (5.10mm) |
|
|
7443320022FIXED IND 220NH 27A 1.5 MOHM SMD |
252 | 0.49 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±20% | 27 A | 60A | Shielded | 1.5mOhm Max | - | 280MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320082FIXED IND 820NH 24A 2.5 MOHM SMD |
198 | 0.49 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 24 A | 36A | Shielded | 2.5mOhm Max | - | 99MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443310150FIXED IND 1.5UH 18.5A 3.5MOHM SM |
195 | 0.49 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 18.5 A | 50A | Shielded | 3.5mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7447471472FIXED IND 4.7MH 250MA 7.7 OHM TH |
137 | 0.52 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±20% | 250 mA | 200mA | Shielded | 7.7Ohm Max | - | 560kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
