Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744776233FIXED IND 330UH 520MA 1.15OHM SM |
489 | 0.49 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 520 mA | 590mA | Unshielded | 1.15Ohm Max | - | 4.1MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|

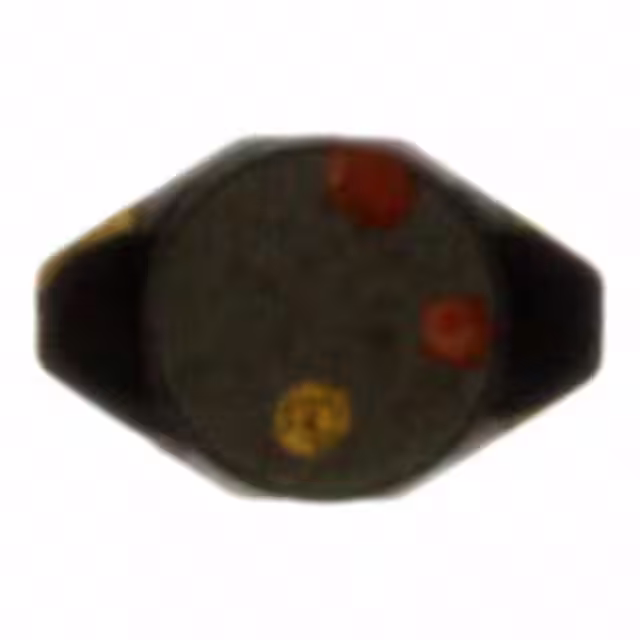

74455033FIXED IND 3.3UH 2A 80 MOHM SMD |
478 | 0.49 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2A | Unshielded | 80mOhm Max | - | 39MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
74455015FIXED IND 1.5UH 2.8A 50 MOHM SMD |
477 | 0.46 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.8 A | 2.6A | Unshielded | 50mOhm Max | - | 62MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

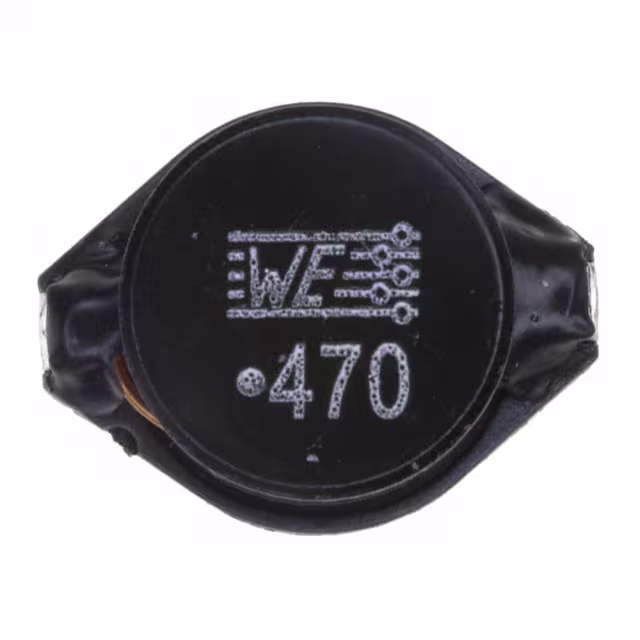

74458147FIXED IND 47UH 2.6A 86 MOHM SMD |
422 | 0.49 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.6 A | 4.5A | Unshielded | 86mOhm Max | - | 8.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
CDEP15D90T150NP-100MC-100FIXED IND 10UH 12.2A 8.9MOHM SMD |
382 | 0.53 |
|
Datasheet |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 12.2 A | 16.2A | Shielded | 8.9mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
78438367033WE-MAIA SMT POWER INDUCTOR |
379 | 0.49 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 3.3 µH | ±20% | 6.2 A | 7.3A | Shielded | 23mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
IHLP5050FDERR68M01FIXED IND 680NH 35A 1.6 MOHM SMD |
365 | 0.50 |
|
Datasheet |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 35 A | 60A | Shielded | 1.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|

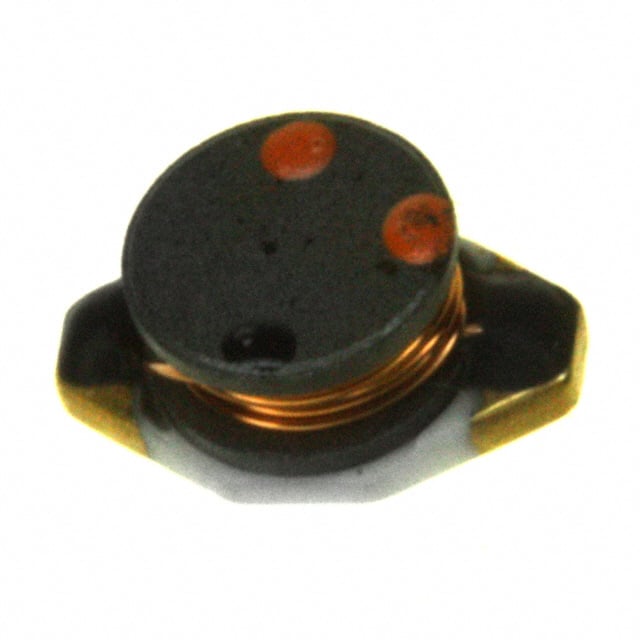

74455133FIXED IND 33UH 600MA 510MOHM SMD |
333 | 0.49 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 600 mA | 580mA | Unshielded | 510mOhm Max | - | 13MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
VCMT136E-330MN5FIXED IND 33UH 5.5A 69 MOHM SMD |
329 | 0.49 |
|
Datasheet |
VCMT136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 33 µH | ±20% | 5.5 A | 4.3A | Unshielded | 69mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
7445820FIXED IND 100UH 1.8A 190MOHM SMD |
320 | 0.49 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.8 A | 3.4A | Unshielded | 190mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
IHLP5050FDER1R8M01FIXED IND 1.8UH 24A 3.2 MOHM SMD |
315 | 0.50 |
|
Datasheet |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±20% | 24 A | 41A | Shielded | 3.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
74457010FIXED IND 1UH 15A 4 MOHM SMD |
290 | 0.46 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±25% | 15 A | 32A | Unshielded | 4mOhm Max | - | 88MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|

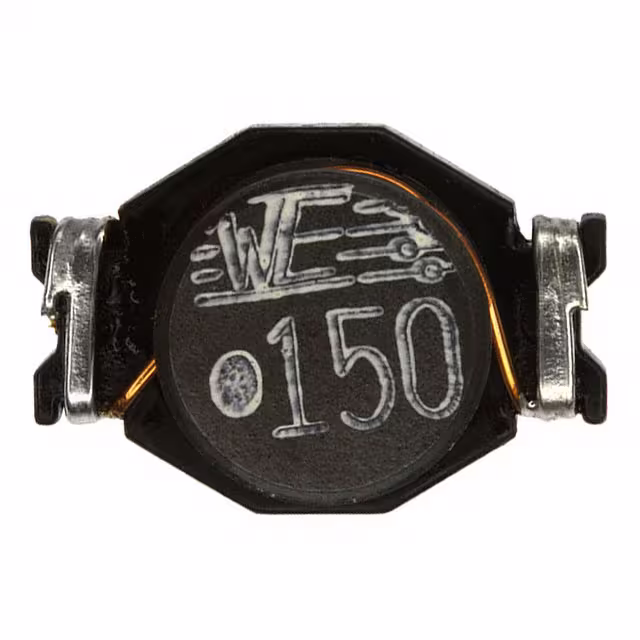

74457115FIXED IND 15UH 5A 35 MOHM SMD |
240 | 0.49 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±15% | 5 A | 9A | Unshielded | 35mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
IHLP5050FDERR15M01FIXED IND 150NH 55A 0.6 MOHM SMD |
231 | 0.50 |
|
Datasheet |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±20% | 55 A | 118A | Shielded | 0.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
MWLA1707S-6R8MTFIXED IND 6.8UH 9.2MOHM 32000MA |
206 | 0.49 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 19 A | 32A | Shielded | 9.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.276" (7.00mm) |
|
78438367068WE-MAIA SMT POWER INDUCTOR |
190 | 0.49 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 6.8 µH | ±20% | 4.3 A | 5.7A | Shielded | 48.3mOhm Max | - | 15.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
|
78438367100WE-MAIA SMT POWER INDUCTOR |
177 | 0.49 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 10 µH | ±20% | 3.3 A | 4.8A | Shielded | 70.2mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|

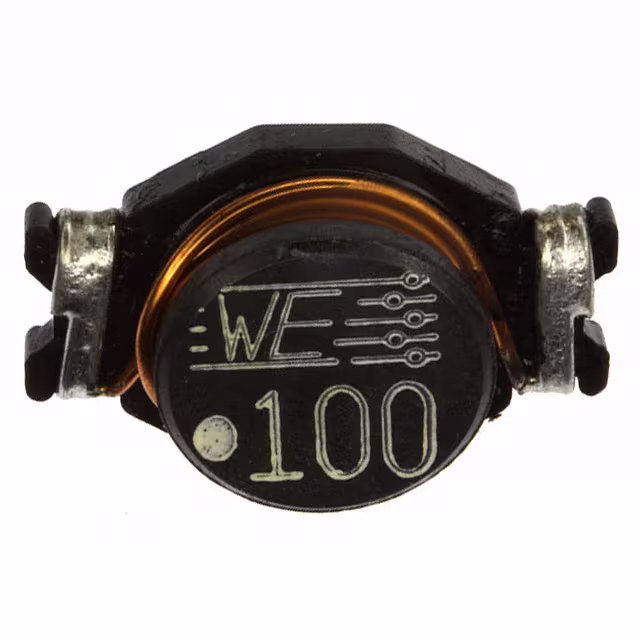

7445710FIXED IND 10UH 6.5A 21 MOHM SMD |
174 | 0.49 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6.5 A | 10A | Unshielded | 21mOhm Max | - | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|

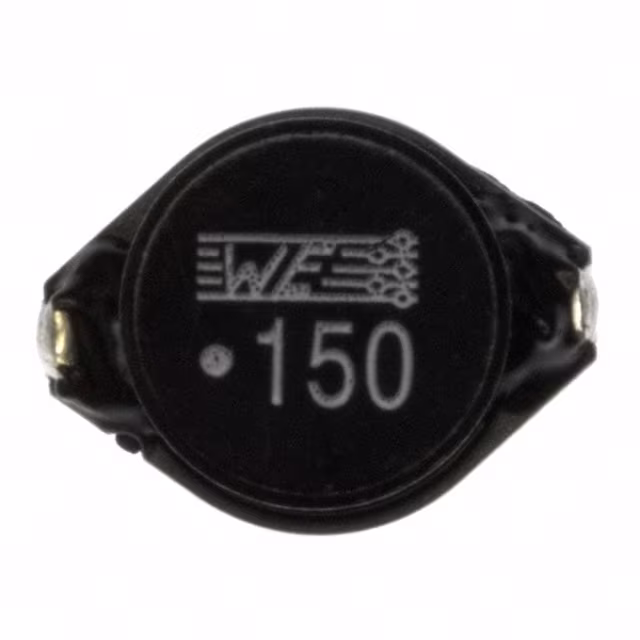

74458115FIXED IND 15UH 4A 36 MOHM SMD |
165 | 0.46 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4 A | 8A | Unshielded | 36mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|

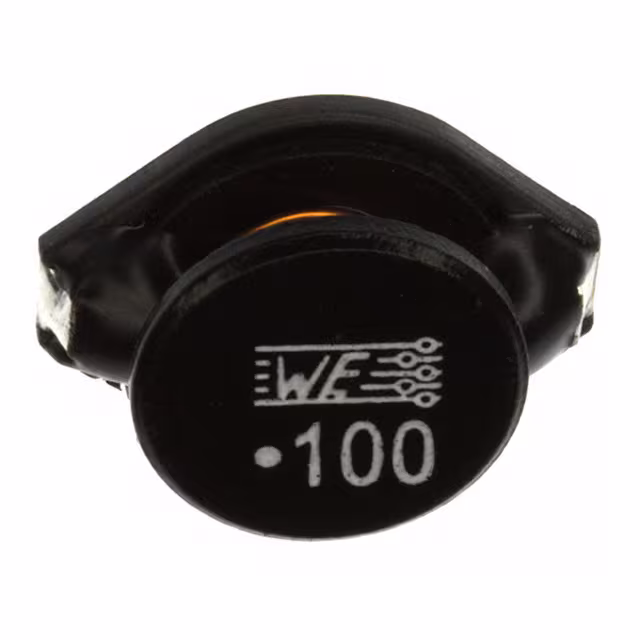

74458010FIXED IND 10UH 4.3A 31 MOHM SMD |
133 | 0.46 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.3 A | 10A | Unshielded | 31mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
