Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

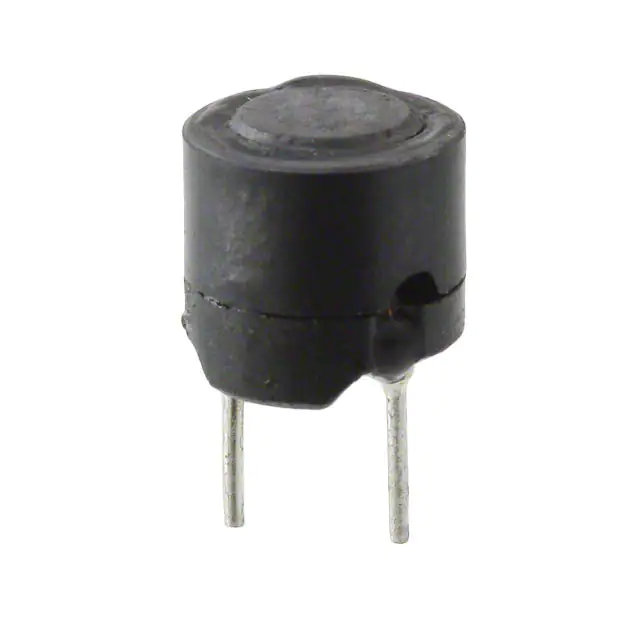

744731332FIXED IND 3.3MH 180MA 8 OHM TH |
178 | 0.48 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 180 mA | 150mA | Shielded | 8Ohm Max | - | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
7443330047FIXED IND 470NH 20.5A 1.85 MOHM |
139 | 0.48 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 20.5 A | 47A | Shielded | 1.85mOhm Max | - | 160MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|
744731680FIXED IND 68UH 1.5A 200 MOHM TH |
137 | 0.48 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.5 A | 1A | Shielded | 200mOhm Max | - | 6.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
744731822FIXED IND 8.2MH 100MA 16 OHM TH |
133 | 0.48 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 100 mA | 50mA | Shielded | 16Ohm Max | - | 600kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
SBCP-11HY470HFIXED IND 47UH 2A 100 MOHM TH |
1,957 | 0.51 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2 A | 4.4A | Unshielded | 100mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
VLBU10060120T-R10LFIXED IND 100NH 83A 0.12MOHM SMD |
525 | 0.59 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 83 A | 137A | Unshielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
MWLA1707S-680MTFIXED IND 68UH 80MOHM 8000MA |
490 | 0.49 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 68 µH | ±20% | 7 A | 8A | Shielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.276" (7.00mm) |
|
IHLP5050FDER1R2M01FIXED IND 1.2UH 30A 2.5 MOHM SMD |
436 | 0.50 |
|
Datasheet |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 30 A | 48A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
1536WFIXED IND 125UH 3.5A 80 MOHM TH |
427 | 0.66 |
|
Datasheet |
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 125 µH | ±20% | 3.5 A | - | Unshielded | 80mOhm | - | 2.65MHz | - | - | 1 kHz | - | Through Hole | - | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - |
|
SBC8-471-112FIXED IND 470UH 1.1A 420 MOHM TH |
249 | 0.58 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 1.1 A | 1.6A | Unshielded | 420mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
LMLP13B3M100DTASFIXED IND 10UH 10A 16.8MOHM SMD |
185 | 0.49 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 10 A | 15.5A | Shielded | 16.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|
4604-RCFIXED IND 1.5UH 1.8A 93 MOHM TH |
2,618 | 0.51 |
|
Datasheet |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | 1.5 µH | ±10% | 1.8 A | - | Unshielded | 93mOhm Max | 58 @ 7.96MHz | 149MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - |
|
FP1007R2-R22-RFIXED IND 215NH 51A 0.48MOHM SMD |
2,394 | 0.39 |
|
Datasheet |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 215 nH | ±10% | 51 A | 50A | Unshielded | 0.48mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.256" (6.50mm) |
|
|
4609-RCFIXED IND 5.5UH 850MA 670MOHM TH |
1,462 | 0.51 |
|
Datasheet |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | 5.5 µH | ±10% | 850 mA | - | Unshielded | 670mOhm Max | 57 @ 7.96MHz | 80MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - |
|
7847709150FIXED IND 15UH 4.6A 36 MOHM SMD |
654 | 0.58 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 15 µH | ±20% | 4.6 A | 5.7A | Shielded | 36mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.406" (10.30mm) |
|
IHLP5050EZER3R0M5AFIXED IND 3UH 17.9A 6.31MOHM SMD |
350 | 0.50 |
|
Datasheet |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3 µH | ±20% | 17.9 A | 18.5A | Shielded | 6.31mOhm Max | - | 20.4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
|
IHLP5050FDERR33M01FIXED IND 330NH 46A 0.9 MOHM SMD |
257 | 0.50 |
|
Datasheet |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 46 A | 65A | Shielded | 0.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
|
IHLP5050FDERR40M01FIXED IND 400NH 44A 1 MOHM SMD |
215 | 0.50 |
|
Datasheet |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 400 nH | ±20% | 44 A | 64A | Shielded | 1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
2111-H-RCFIXED IND 68UH 3.3A 67 MOHM TH |
2,867 | 0.64 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 68 µH | ±15% | 3.3 A | - | Unshielded | 67mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2114-H-RCFIXED IND 150UH 3.4A 62 MOHM TH |
2,594 | 0.64 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 3.4 A | - | Unshielded | 62mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
