Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

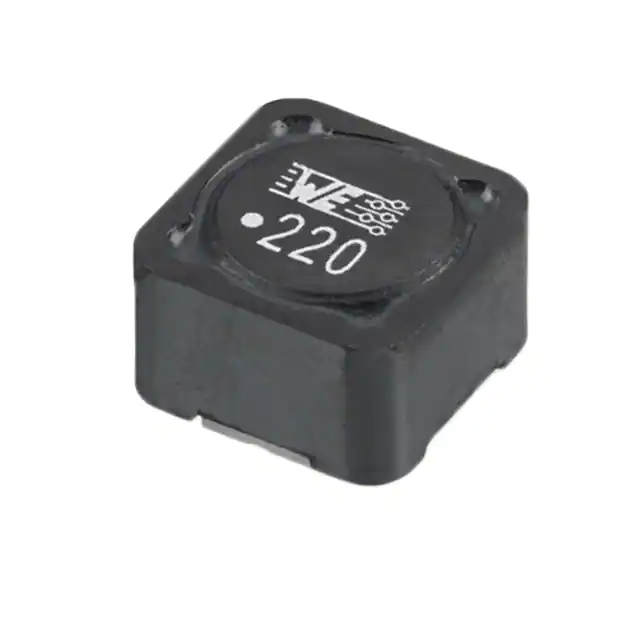

7447715002FIXED IND 2.5UH 6.8A 11 MOHM SMD |
453 | 0.42 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±30% | 6.8 A | 8.5A | Shielded | 11mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
74477126FIXED IND 680UH 550MA 1.2OHM SMD |
453 | 0.45 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 550 mA | 680mA | Shielded | 1.2Ohm Max | - | 2.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
784775122FIXED IND 22UH 1.76A 110MOHM SMD |
452 | 0.45 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.76 A | 1.81A | Unshielded | 110mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744775112FIXED IND 12UH 2.18A 80 MOHM SMD |
370 | 0.45 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 2.18 A | 2.2A | Unshielded | 80mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744771139FIXED IND 39UH 2.49A 68 MOHM SMD |
362 | 0.45 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 2.49 A | 2.74A | Shielded | 68mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
744775318FIXED IND 18MH 80MA 72 OHM SMD |
345 | 0.45 |
|
Datasheet |
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 mH | ±10% | 80 mA | 50mA | Unshielded | 72Ohm Max | - | 400kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.217" (5.50mm) |
|
|
744775133FIXED IND 33UH 1.35A 130MOHM SMD |
339 | 0.45 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.35 A | 1.47A | Unshielded | 130mOhm Max | - | 14.5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
74477128FIXED IND 820UH 510MA 1.34OHM SM |
301 | 0.42 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 510 mA | 600mA | Shielded | 1.34Ohm Max | - | 2.1MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
744771239FIXED IND 390UH 680MA 690MOHM SM |
191 | 0.42 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 680 mA | 850mA | Shielded | 690mOhm Max | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
FP1208R1-R21-RFIXED IND 210NH 50A 0.29MOHM SMD |
162 | 0.44 |
|
Datasheet |
FLAT-PAC, FP1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 210 nH | ±10% | 50 A | 65A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.315" W (12.10mm x 8.00mm) | 0.315" (8.00mm) |
|
74454010FIXED IND 10UH 2A 0.065OHM SMD |
2,741 | 0.45 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 10 µH | ±20% | 2 A | 3.2A | Shielded | 65mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
74454168FIXED IND 68UH 820MA 0.34OHM SMD |
1,515 | 0.45 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 68 µH | ±15% | 820 mA | 1.35A | Shielded | 340mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
74454147FIXED IND 47UH 1A 0.19OHM SMD |
880 | 0.45 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 47 µH | ±15% | 1 A | 1.4A | Shielded | 190mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
P1173.223NLTFIXED IND 22UH 3.8A 42 MOHM SMD |
836 | 0.46 |
|
Datasheet |
P1173NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.8 A | 3.8A | Shielded | 42mOhm Max | - | 12MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
IHLP2525EZER1R5M01FIXED IND 1.5UH 12A 9 MOHM SMD |
485 | 0.46 |
|
Datasheet |
IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 12 A | 12A | Shielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|
CLF12555T-4R7N-DFIXED IND 4.7UH 5.3A 15.2MOHM SM |
232 | 0.47 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.3 A | 9.6A | Shielded | 15.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|

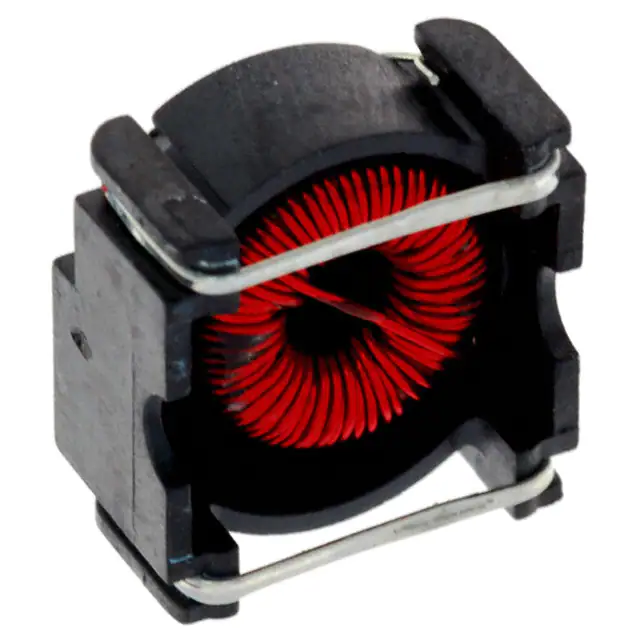

PE-53822SNLFIXED IND 54UH 1A 200 MOHM SMD |
170 | 0.64 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 54 µH | ±20% | 1 A | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
83223CFIXED IND 22UH 500MA 350MOHM SMD |
3,349 | 0.48 |
|
Datasheet |
8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 22 µH | ±20% | 500 mA | 740mA | Unshielded | 350mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
|
|
83103CFIXED IND 10UH 750MA 185MOHM SMD |
2,441 | 0.48 |
|
Datasheet |
8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 10 µH | ±20% | 750 mA | 1.04A | Unshielded | 185mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
|
PE-53630NLFIXED IND 1.01UH 3.4A 11MOHM SMD |
1,964 | 0.43 |
|
Datasheet |
SLIC | Nonstandard | Tube | Active | Toroidal | - | 1.01 µH | - | 3.4 A | - | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
