Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78438356015HTWE-MAIA SMT POWER INDUCTOR |
405 | 0.45 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 1.5 µH | ±20% | 5.5 A | 6.6A | Shielded | 20.7mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
 0.118 Height.jpg)
|
74408941330FIXED IND 33UH 450MA 1.015OHM SM |
321 | 0.45 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 450 mA | 900mA | Shielded | 1.015Ohm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
|
74408941035FIXED IND 3.5UH 1.5A 113MOHM SMD |
301 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.5 µH | ±20% | 1.5 A | 2.8A | Shielded | 113mOhm Max | - | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
74408943010FIXED IND 1UH 3.3A 22 MOHM SMD |
269 | 0.45 |
|
Datasheet |
WE-SPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.3 A | 6.5A | Shielded | 22mOhm Max | - | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.161" (4.10mm) |
|
744750420150FIXED IND 15UH 5.1A 25 MOHM TH |
250 | 0.45 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.1 A | 7.9A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 1280 | 0.504" Dia (12.80mm) | 0.354" (9.00mm) |
|
|
74408942022FIXED IND 2.2UH 2.5A 45 MOHM SMD |
248 | 0.45 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.5 A | 4A | Shielded | 45mOhm Max | - | 54MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
74408943820FIXED IND 82UH 580MA 750MOHM SMD |
175 | 0.45 |
|
Datasheet |
WE-SPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 580 mA | 800mA | Shielded | 750mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.161" (4.10mm) |
|
|
74408943082FIXED IND 8.2UH 1.75A 81MOHM SMD |
174 | 0.45 |
|
Datasheet |
WE-SPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1.75 A | 2.2A | Shielded | 81mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.161" (4.10mm) |
|
|
744750420220FIXED IND 22UH 4.1A 36 MOHM TH |
115 | 0.45 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.1 A | 6.7A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 1280 | 0.504" Dia (12.80mm) | 0.354" (9.00mm) |
|
SCIHP1367-3R3MFIXED IND 3.3UH 15A 6.8 MOHM SMD |
5,949 | 0.46 |
|
Datasheet |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 15 A | 29A | Shielded | 6.8mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
MPLCV0654L4R7FIXED IND 4.7UH 6.3A 20 MOHM SMD |
3,510 | 0.65 |
|
Datasheet |
MPLCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 6.3 A | 10.5A | Shielded | 20mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.264" W (7.90mm x 6.70mm) | 0.213" (5.40mm) |
|

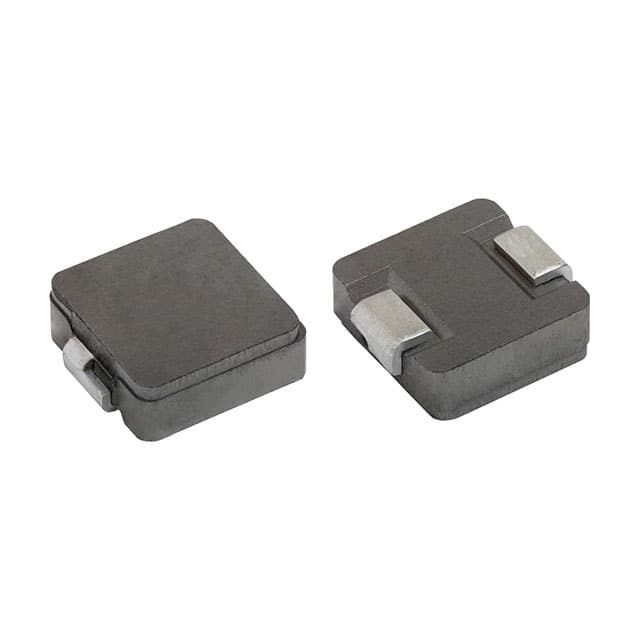

IHSR4040DZERR13M5AIHSR-4040DZ-5A .13 20% ER E3 |
2,825 | 0.46 |
|
Datasheet |
IHSR-4040DZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 130 nH | ±20% | 72 A | 92A | Shielded | 0.58mOhm Max | - | 151MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.157" (4.00mm) |
.jpg)
|
FP2-S047-RFIXED IND 47NH 39A 0.24 MOHM SMD |
1,738 | 0.44 |
|
Datasheet |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 nH | ±15% | 39 A | 42A | Unshielded | 0.24mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.118" (3.00mm) |
|
7447713101FIXED IND 100UH 900MA 478MOHM SM |
1,415 | 0.45 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 900 mA | 1.4A | Shielded | 478mOhm Max | - | 7.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
IHLE4040DDER470M5AIHLE-4040DD-5A 47 20% ER E3 |
1,385 | 0.46 |
|
Datasheet |
IHLE-4040DD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 47 µH | ±20% | 3.1 A | 4.1A | Shielded | 178mOhm Max | - | 5.22MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|
|
7447713100FIXED IND 10UH 2.6A 62 MOHM SMD |
1,132 | 0.45 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.6 A | 4.1A | Shielded | 62mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
|
7447713082FIXED IND 8.2UH 3A 49 MOHM SMD |
1,060 | 0.45 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 3 A | 4.7A | Shielded | 49mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
744373460068FIXED IND 680NH 11A 0.0055OHM SM |
1,058 | 0.45 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 680 nH | ±20% | 11 A | 31.6A | Shielded | 5.5mOhm Max | - | 72MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
744373460022FIXED IND 220NH 15A 0.0028OHM SM |
1,041 | 0.42 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±30% | 15 A | 54.3A | Shielded | 2.8mOhm Max | - | 149MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
IHLE4040DDEW470M5AFIXED IND 47UH 3.1A 0.178OHM SMD |
1,000 | 0.46 |
|
Datasheet |
IHLE-4040DDEW-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 47 µH | ±20% | 3.1 A | 4.1A | Shielded | 178mOhm Max | - | 5.22MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
