Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447773047FIXED IND 4.7UH 3.6A 26 MOHM SMD |
966 | 0.43 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.6 A | 5.5A | Shielded | 26mOhm Max | - | 35.5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
744071047FIXED IND 4.7UH 4.8A 22 MOHM SMD |
911 | 0.43 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.8 A | 4.3A | Shielded | 22mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
744071022FIXED IND 2.2UH 5.4A 13 MOHM SMD |
746 | 0.43 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5.4 A | 6.3A | Shielded | 13mOhm Max | - | 62MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
7447773062FIXED IND 6.2UH 3.2A 30 MOHM SMD |
693 | 0.40 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.2 µH | ±20% | 3.2 A | 4.8A | Shielded | 30mOhm Max | - | 31MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
|
744071056FIXED IND 5.6UH 4A 25 MOHM SMD |
583 | 0.43 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 4 A | 4A | Shielded | 25mOhm Max | - | 31MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
744071220FIXED IND 22UH 2.3A 80 MOHM SMD |
571 | 0.43 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 2.3 A | 1.9A | Shielded | 80mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
7447773681FIXED IND 680UH 360MA 2.3OHM SMD |
561 | 0.40 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 360 mA | 460mA | Shielded | 2.3Ohm Max | - | 2.3MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447773102FIXED IND 1MH 300MA 3.3 OHM SMD |
412 | 0.43 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 300 mA | 380mA | Shielded | 3.3Ohm Max | - | 1.9MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
|
744071150FIXED IND 15UH 2.8A 55 MOHM SMD |
368 | 0.43 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2.8 A | 2.3A | Shielded | 55mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
744071039FIXED IND 3.9UH 4.9A 17 MOHM SMD |
265 | 0.43 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 4.9 A | 4.5A | Shielded | 17mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
SD6030-220-RFIXED IND 20.4UH 1.57A 122 MOHM |
4,644 | 0.40 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 20.4 µH | ±30% | 1.57 A | 900mA | Shielded | 122mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
1025R-10KFIXED IND 390NH 710MA 300MOHM TH |
4,089 | 0.41 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Phenolic | 390 nH | ±10% | 710 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 365MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-14KFIXED IND 560NH 550MA 500MOHM TH |
3,961 | 0.41 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Phenolic | 560 nH | ±10% | 550 mA | - | Unshielded | 500mOhm Max | 30 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

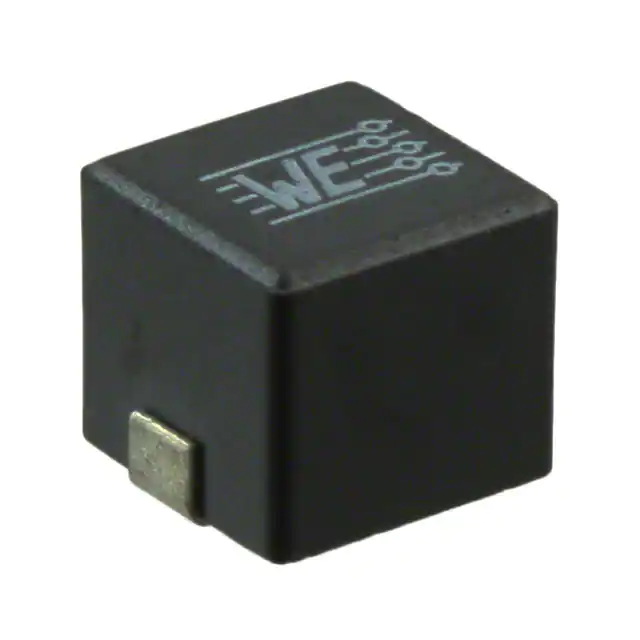

7443340068FIXED IND 680NH 19A 3.1 MOHM SMD |
3,569 | 0.43 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 19 A | 23.5A | Shielded | 3.1mOhm Max | - | 181MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
HCM1305-1R0-RFIXED IND 1UH 29A 2.42 MOHM SMD |
1,732 | 0.42 |
|
Datasheet |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 29 A | 50A | Shielded | 2.42mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
HCM1305-1R5-RFIXED IND 1.5UH 23A 3.16MOHM SMD |
1,270 | 0.42 |
|
Datasheet |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 23 A | 48A | Shielded | 3.16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1305-R22-RFIXED IND 220NH 51A 0.72MOHM SMD |
604 | 0.42 |
|
Datasheet |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±20% | 51 A | 110A | Shielded | 0.72mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
7443340047FIXED IND 470NH 19A 3.1 MOHM SMD |
212 | 0.43 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 19 A | 32A | Shielded | 3.1mOhm Max | - | 232MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
|
HCM1305-4R7-RFIXED IND 4.7UH 12A 12.7 MOHM |
200 | 0.42 |
|
Datasheet |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 12 A | 27A | Shielded | 12.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1305-R82-RFIXED IND 820NH 31A 1.61MOHM SMD |
144 | 0.42 |
|
Datasheet |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 820 nH | ±20% | 31 A | 53A | Shielded | 1.61mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
