Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPLC0730L4R7FIXED IND 4.7UH 5A 41 MOHM SMD |
3,145 | 0.44 |
|
Datasheet |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 5 A | 5.6A | Shielded | 41mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.118" (3.00mm) |
|
PA4343.822ANLTFIXED IND 8.2UH 12.5A 13.8 MOHM |
1,993 | 0.44 |
|
Datasheet |
PA4343.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 12.5 A | 17A | Shielded | 13.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
1.5mm.jpg)
|
78438335150FIXED IND 15UH 650MA 830MOHM SMD |
1,305 | 0.40 |
|
Datasheet |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 15 µH | ±30% | 650 mA | 1.71A | Shielded | 830mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
PA4343.332ANLTFIXED IND 3.3UH 19A 6.2 MOHM SMD |
1,261 | 0.44 |
|
Datasheet |
PA4343.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 19 A | 22.5A | Shielded | 6.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
.8mm.jpg)
|
78438322010FIXED IND 1UH 1.75A 133 MOHM SMD |
1,230 | 0.40 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1 µH | ±30% | 1.75 A | 3.35A | Shielded | 133mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2508 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
PE-53634NLTFIXED IND 50UH 2.6A 133 MOHM SMD |
1,125 | 0.57 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 50 µH | - | 2.6 A | - | Unshielded | 133mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
ETQ-P6M150KLCFIXED IND 14UH 11.2A 28 MOHM |
864 | 0.47 |
|
Datasheet |
PCC-M1060ML | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Metal Composite | 14 µH | ±20% | 7.9 A | 11.2A | Shielded | 30.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.236" (6.00mm) |
|

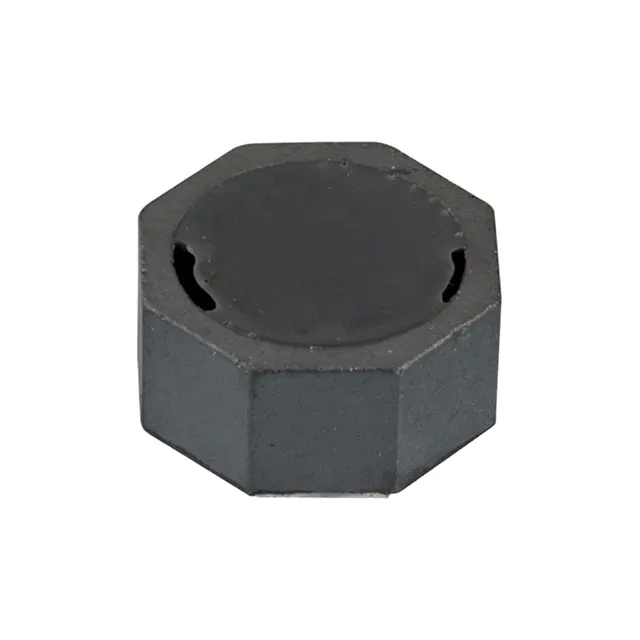

744071221FIXED IND 220UH 720MA 610MOHM SM |
774 | 0.42 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 720 mA | 600mA | Shielded | 610mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.181" (4.60mm) |
|
|
78438335330FIXED IND 33UH 500MA 1.33OHM SMD |
172 | 0.42 |
|
Datasheet |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 33 µH | ±30% | 500 mA | 1.3A | Shielded | 1.33Ohm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
HPL505028F080MRD3PFIXED IND 80NH 34A 880 MOHM SMD |
4,857 | 0.62 |
|
Datasheet |
HPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 80 nH | ±20% | 34 A | 36A | Unshielded | 0.88mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
SD52-2R2-RFIXED IND 2.2UH 1.98A 38.5 MOHM |
3,306 | 0.52 |
|
Datasheet |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.98 A | 2.3A | Shielded | 38.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
HCM1A1105V2-470-RFIXED IND 47UH 3A 117 MOHM SMD |
964 | 0.38 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 47 µH | ±20% | 3 A | 3A | Shielded | 117mOhm Max | - | 3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
|
HCM1A1105V2-100-RFIXED IND 10UH 6.2A 27 MOHM SMD |
682 | 0.19 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 6.2 A | 7A | Shielded | 27mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
HCM1305-R56-RFIXED IND 560NH 36A 1.33MOHM SMD |
322 | 0.42 |
|
Datasheet |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 560 nH | ±20% | 36 A | 55A | Shielded | 1.33mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
SRP7030CA-1R5MFIXED IND 1.5UH 15.3A 0.00825OHM |
6,501 | 0.44 |
|
Datasheet |
SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 1.5 µH | ±20% | 15.3 A | 25A | Shielded | 8.25mOhm Max | - | 31MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
7447773331FIXED IND 330UH 530MA 1.085 OHM |
3,405 | 0.43 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 530 mA | 660mA | Shielded | 1.085Ohm Max | - | 3.6MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|

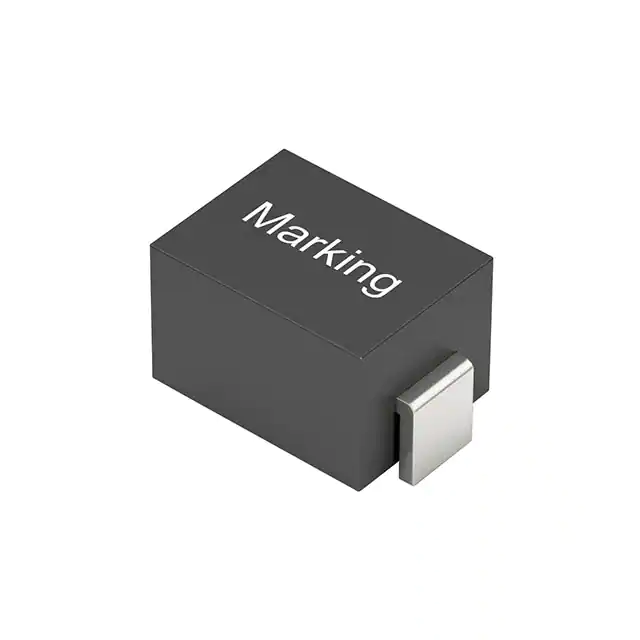

744340300025FIXED IND 25NH 27A 0.00027OHM SM |
2,275 | 0.43 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 25 nH | ±15% | 27 A | 51A | Shielded | 0.27mOhm | - | 180MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.189" L x 0.122" W (4.80mm x 3.10mm) | 0.118" (3.00mm) |
|
|
744340300030FIXED IND 30NH 27A 0.00027OHM SM |
1,915 | 0.43 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 30 nH | ±15% | 27 A | 50.6A | Shielded | 0.27mOhm | - | 170MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.189" L x 0.122" W (4.80mm x 3.10mm) | 0.118" (3.00mm) |
|
|
SRP7030CA-1R0MFIXED IND 1UH 21.8A 0.005OHM SMD |
1,845 | 0.44 |
|
Datasheet |
SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 1 µH | ±20% | 21.8 A | 30A | Shielded | 5mOhm Max | - | 35MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
7447773033FIXED IND 3.3UH 4.3A 21 MOHM SMD |
1,673 | 0.43 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.3 A | 6.6A | Shielded | 21mOhm Max | - | 51MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
