Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1038WA-330MIND,11X10X3.8MM,33UH20%,4.7A,SHD |
279 | 0.33 |
|
Datasheet |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 33 µH | ±20% | 4.7 A | 4.8A | Shielded | 102mOhm Max | 20 @ 100kHz | 6MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|

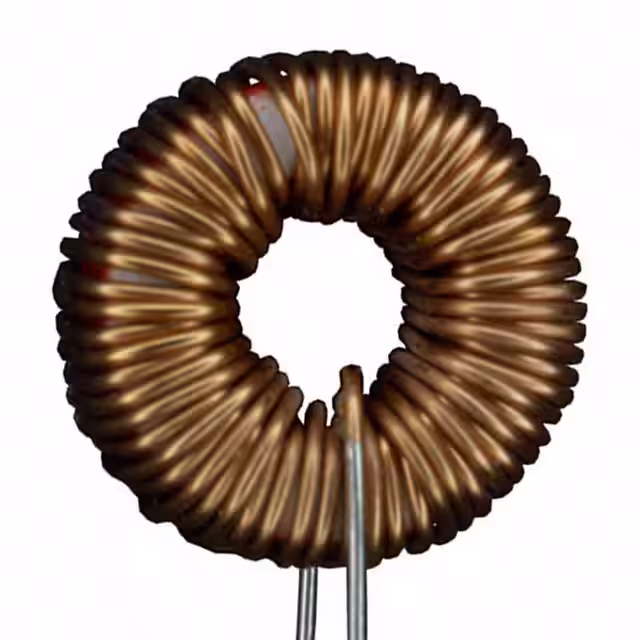

7447028FIXED IND 150UH 1A 130 MOHM TH |
230 | 0.39 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 150 µH | ±20% | 1 A | - | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.630" Dia x 0.295" W (16.00mm x 7.50mm) | - |
|
|
SRP1038WA-470MIND,11X10X3.8MM,47UH20%,3.6A,SHD |
214 | 0.33 |
|
Datasheet |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 47 µH | ±20% | 3.6 A | 4A | Shielded | 165mOhm Max | 20 @ 100kHz | 5MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
4611-RCFIXED IND 8.2UH 600MA 1.2 OHM TH |
4,967 | 0.51 |
|
Datasheet |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | 8.2 µH | ±10% | 600 mA | - | Unshielded | 1.2Ohm Max | 57 @ 7.96MHz | 65MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - |
|
|
4608-RCFIXED IND 3.9UH 1A 450 MOHM TH |
3,089 | 0.51 |
|
Datasheet |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | 3.9 µH | ±10% | 1 A | - | Unshielded | 450mOhm Max | 60 @ 7.96MHz | 93MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - |
|
HCMA1305-R22-RFIXED IND 220NH 51A 0.72MOHM SMD |
1,780 | 0.32 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±20% | 51 A | 110A | Shielded | 0.72mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
UP1B-470-RFIXED IND 47UH 720MA 474MOHM SMD |
650 | 0.36 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 720 mA | 870mA | Unshielded | 474mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
HCMA1305-150-RFIXED IND 15UH 7.7A 33.4MOHM SMD |
602 | 0.38 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±20% | 7.7 A | 13A | Shielded | 33.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
PA5003.331NLTFIXED IND 330NH 19.2A 3.52 MOHM |
13,232 | 0.40 |
|
Datasheet |
PA5003.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 330 nH | ±20% | 19.2 A | 28A | Shielded | 3.52mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
MPI4020V2-4R7-RFIXED IND 4.7UH 2.7A 118MOHM SMD |
6,862 | 0.31 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 2.7 A | 3.2A | Shielded | 118mOhm Max | - | 24MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|
744787680FIXED IND 68UH 1.12A 290MOHM SMD |
6,576 | 0.39 |
|
Datasheet |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.12 A | 1A | Shielded | 290mOhm Max | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
ADM32FSC-100MINDUCTORS FOR POWER OVER COAXIAL |
5,386 | 0.40 |
|
Datasheet |
ADM32FSC | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 880 mA | 1.06A | Shielded | 420mOhm Max | - | 52MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | Horizontal, 4 PC Pad | 0.154" L x 0.098" W (3.90mm x 2.50mm) | 0.098" (2.50mm) |
|
|
744787151FIXED IND 150UH 710MA 719MOHM SM |
4,215 | 0.39 |
|
Datasheet |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 710 mA | 700mA | Shielded | 719mOhm Max | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
|
PA5003.471NLTFIXED IND 470NH 18.4A 4.13 MOHM |
3,978 | 0.40 |
|
Datasheet |
PA5003.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 470 nH | ±20% | 18.4 A | 26A | Shielded | 4.13mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
PA4343.102NLTFIXED IND 1UH 30A 2.3 MOHM SMD |
1,927 | 0.41 |
|
Datasheet |
PA4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 30 A | 48A | Shielded | 2.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|

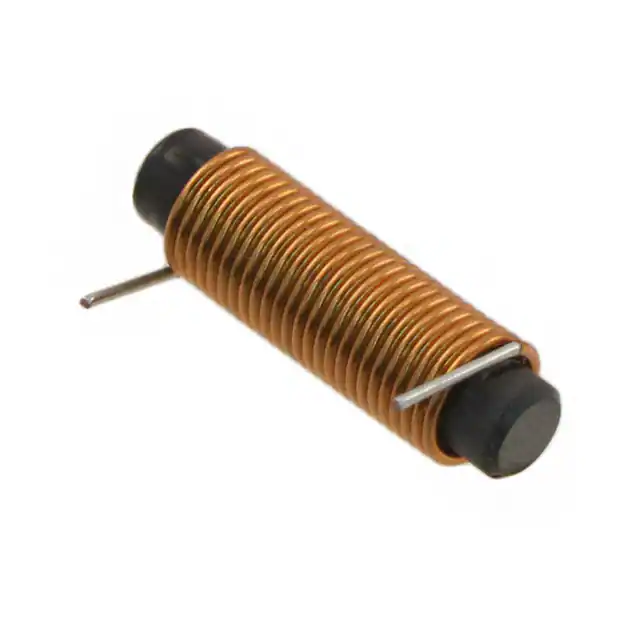

744711003FIXED IND 10UH 2.5A 33 MOHM TH |
1,149 | 0.39 |
|
Datasheet |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±25% | 2.5 A | - | Unshielded | 33mOhm | - | 45MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.205" Dia x 0.728" L (5.20mm x 18.50mm) | - |
|
|
744787820FIXED IND 82UH 1.04A 328MOHM SMD |
1,046 | 0.37 |
|
Datasheet |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 1.04 A | 900mA | Shielded | 328mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
|
744787181FIXED IND 180UH 680MA 794MOHM SM |
1,012 | 0.39 |
|
Datasheet |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 680 mA | 620mA | Shielded | 794mOhm Max | - | 3.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
|
HCMA1305-8R2-RFIXED IND 8.2UH 9.5A 20.1MOHM SM |
610 | 0.38 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±20% | 9.5 A | 18A | Shielded | 20.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
744787221FIXED IND 220UH 670MA 876MOHM SM |
568 | 0.39 |
|
Datasheet |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 670 mA | 580mA | Shielded | 876mOhm Max | - | 3.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
