Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Height-1,00.jpg)
|

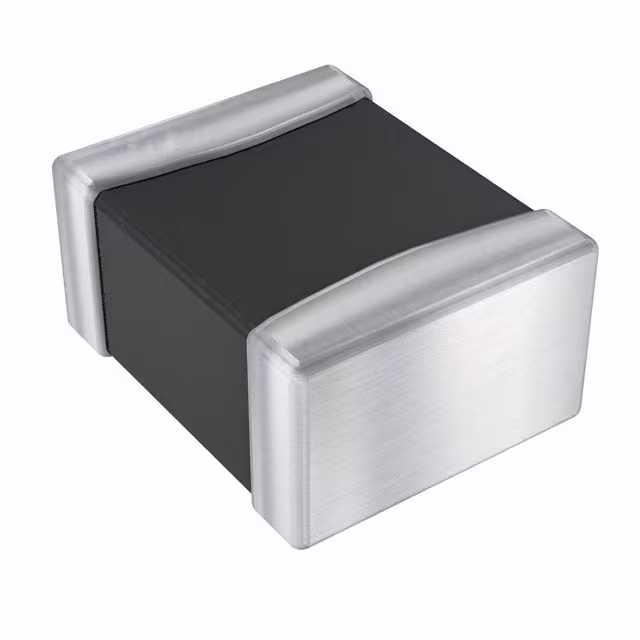

CPI0806J4R7R-10FIXED IND 4.7UH 1.1A 300MOHM SMD Laird-Signal Integrity Products |
12,515 | 0.11 |
|
Datasheet |
CPI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 µH | ±20% | 1.1 A | - | Unshielded | 300mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
MGV3225126R8M-10HIGH CURRENT MOLDED SMT POWER IN Laird-Signal Integrity Products |
14,873 | 0.13 |
|
Datasheet |
MGV322512 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 1.2 A | 2.1A | Shielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
MGV322512R68M-10HIGH CURRENT MOLDED SMT POWER IN Laird-Signal Integrity Products |
14,921 | 0.13 |
|
Datasheet |
MGV322512 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±20% | 4.7 A | 5.8A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
MGV3225122R2M-10HIGH CURRENT MOLDED SMT POWER IN Laird-Signal Integrity Products |
14,820 | 0.13 |
|
Datasheet |
MGV322512 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 2.7 A | 3.5A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
MGV3225124R7M-10HIGH CURRENT MOLDED SMT POWER IN Laird-Signal Integrity Products |
14,677 | 0.13 |
|
Datasheet |
MGV322512 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 1.4 A | 2.4A | Shielded | 168mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
MGV3225121R0M-10HIGH CURRENT MOLDED SMT POWER IN Laird-Signal Integrity Products |
11,769 | 0.13 |
|
Datasheet |
MGV322512 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 4.4 A | 5A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
MGV322512R47M-10HIGH CURRENT MOLDED SMT POWER IN Laird-Signal Integrity Products |
10,289 | 0.13 |
|
Datasheet |
MGV322512 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±20% | 5.2 A | 7A | Shielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
MGA10046R8M-10FIXED IND 6.8UH 6A 25 MOHM SMD Laird-Signal Integrity Products |
4,000 | 0.28 |
|
- |
MGA | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 6.8 µH | ±20% | 6 A | 10A | Unshielded | 25mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.457" L x 0.398" W (11.60mm x 10.10mm) | 0.157" (4.00mm) |
|
|
MGA06052R2M-10FIXED IND 2.2UH 8A 12.5 MOHM SMD Laird-Signal Integrity Products |
1,983 | 0.22 |
|
- |
MGA | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 2.2 µH | ±20% | 8 A | 12A | Unshielded | 12.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
MGA0605R56M-10FIXED IND 560NH 20A 3.3 MOHM SMD Laird-Signal Integrity Products |
800 | 0.22 |
|
- |
MGA | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 560 nH | ±20% | 20 A | 20A | Unshielded | 3.3mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
