Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS60281R0N-10FIXED IND 1UH 5.2A 10 MOHM SMD Laird-Signal Integrity Products |
3,748 | 0.39 |
|
Datasheet |
TYS6028 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 5.2 A | 5.75A | Shielded | 10mOhm | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
TYS6028680M-10FIXED IND 68UH 860MA 360MOHM SMD Laird-Signal Integrity Products |
2,121 | 0.15 |
|
Datasheet |
TYS6028 | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 860 mA | 800mA | Shielded | 360mOhm | - | 7.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
TYS6020220M-10FIXED IND 22UH 1A 204 MOHM SMD Laird-Signal Integrity Products |
4,474 | 0.16 |
|
Datasheet |
TYS6020 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1 A | 1.05A | Shielded | 204mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
-Height-1,00.jpg)
|

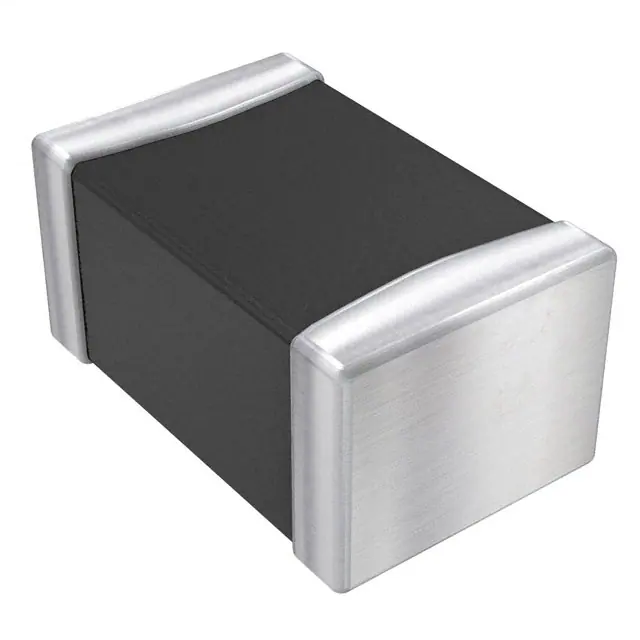

CPI0805E4R7R-10FIXED IND 4.7UH 500MA 300MOHM SM Laird-Signal Integrity Products |
19,910 | 0.17 |
|
Datasheet |
CPI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 µH | ±20% | 500 mA | - | Unshielded | 300mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
TYS252012L220M-10FIXED IND 22UH 380MA 1.824OHM SM Laird-Signal Integrity Products |
9,691 | 0.43 |
|
Datasheet |
TYS252012L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 380 mA | 530mA | Shielded | 1.824Ohm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
TYS8040330M-10FIXED IND 33UH 1.8A 97 MOHM SMD Laird-Signal Integrity Products |
4,166 | 0.22 |
|
Datasheet |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 1.8 A | 2.05A | Shielded | 97mOhm Max | - | 7.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
TYS80406R8M-10FIXED IND 6.8UH 3.6A 24 MOHM SMD Laird-Signal Integrity Products |
3,865 | 0.55 |
|
Datasheet |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 3.6 A | 4.55A | Shielded | 24mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
TYS80403R3N-10FIXED IND 3.3UH 4.4A 17 MOHM SMD Laird-Signal Integrity Products |
3,339 | 0.55 |
|
Datasheet |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 4.4 A | 6.5A | Shielded | 17mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
TYS80402R2N-10FIXED IND 2.2UH 5.15A 12MOHM SMD Laird-Signal Integrity Products |
3,000 | 0.22 |
|
Datasheet |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 5.15 A | 7.1A | Shielded | 12mOhm Max | - | 41MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
TYS80404R7N-10FIXED IND 4.7UH 4.1A 19 MOHM SMD Laird-Signal Integrity Products |
2,945 | 0.22 |
|
Datasheet |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 4.1 A | 5.9A | Shielded | 19mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
