Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

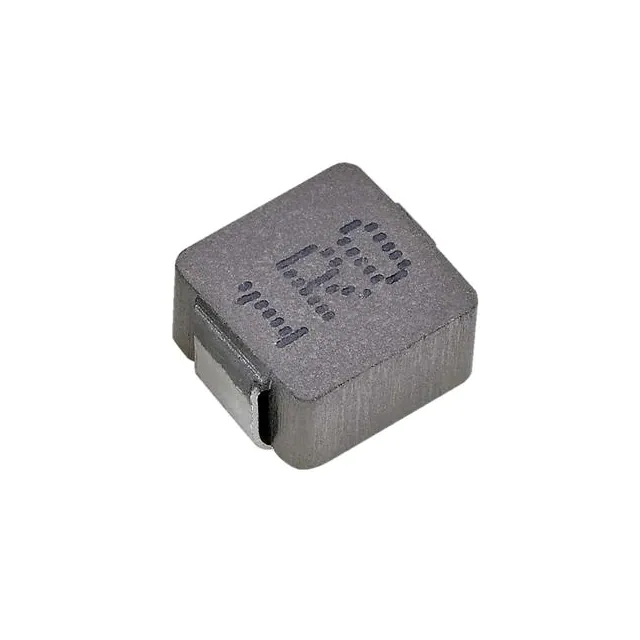

AIP0530GX-1R0MPBDGPOWER INDUCTOR 5.7X5.4X3 1.0UH 2 INPAQ Technology Co., Ltd |
3,930 | 0.53 |
|
Datasheet |
AIP0530GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 10.5 A | 14A | Shielded | 8.5mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
|
AIP0530GX-3R3MPBDGPOWER INDUCTOR 5.7X5.4X3 3.3UH 2 INPAQ Technology Co., Ltd |
3,790 | 0.53 |
|
Datasheet |
AIP0530GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 7.7 A | 8.7A | Shielded | 23mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
|
AIP0630GX-3R3MPBDGPOWER INDUCTOR 7.7X6.5X3 3.3UH 2 INPAQ Technology Co., Ltd |
1,933 | 0.66 |
|
Datasheet |
AIP0630GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 8 A | 11A | Shielded | 19.2mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
AIP0630GX-2R2MPBDGPOWER INDUCTOR 7.7X6.5X3 2.2UH 2 INPAQ Technology Co., Ltd |
1,880 | 0.66 |
|
Datasheet |
AIP0630GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 9.9 A | 14.3A | Shielded | 13.1mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
AIP0630GX-1R0MPBDGPOWER INDUCTOR 7.7X6.5X3 1.0UH 2 INPAQ Technology Co., Ltd |
1,754 | 0.66 |
|
Datasheet |
AIP0630GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 17.1 A | 20.7A | Shielded | 5.95mOhm Max | - | 48MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
AIP0630GX-4R7MPBDGPOWER INDUCTOR 7.7X6.5X3 4.7UH 2 INPAQ Technology Co., Ltd |
1,288 | 0.66 |
|
Datasheet |
AIP0630GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 6.7 A | 11.3A | Shielded | 29.3mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
AIP0530GX-4R7MPBDGPOWER INDUCTOR 5.7X5.3X3 4.7UH 2 INPAQ Technology Co., Ltd |
992 | 0.53 |
|
Datasheet |
AIP0530GX | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 5.6 A | 6.8A | Shielded | 35.5mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
MCI1608HQ2N2SHBPR5MCI-HQ,1608,2.2NH,0.3,DCR0.10,30 INPAQ Technology Co., Ltd |
1,000 | - |
|
Datasheet |
MCI HQ | 0603 (1608 Metric) | Active | Multilayer | Ceramic | 2.2 nH | ±0.3nH | 1 A | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
