Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

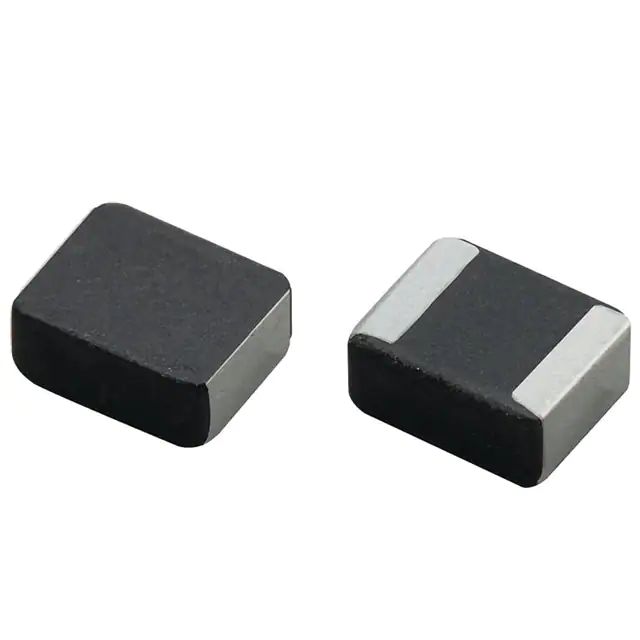

WIP322512A-6R8MLDGPOWER INDUCTOR 3225 6.8UH 20% DC INPAQ Technology Co., Ltd |
13,758 | - |
|
Datasheet |
WIP322512A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 6.8 µH | ±20% | 1.2 A | 2.1A | Shielded | 210mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
WIP322512A-1R0MLDGPOWER INDUCTOR 3225 1.0UH 20% DC INPAQ Technology Co., Ltd |
12,097 | 0.17 |
|
Datasheet |
WIP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 4.4 A | 5A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
WIP252012S-1R5MLDGPOWER INDUCTOR 2520 1.5UH 20% DC INPAQ Technology Co., Ltd |
14,400 | - |
|
Datasheet |
WIP252012S L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 2.5 A | 3.5A | Shielded | 63mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
WCI4532CPR22GDGCHIP IND 4532,220NH,G,80Q,0.94A, INPAQ Technology Co., Ltd |
2,875 | - |
|
Datasheet |
WCI4532CP | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 220 nH | ±2% | 940 mA | - | Unshielded | 105mOhm Max | 80 @ 50MHz | 700MHz | - | -25°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.195" L x 0.150" W (4.95mm x 3.81mm) | 0.135" (3.43mm) |
|
|
WCI4532CPR15GDGCHIP IND 4532,150NH,G,75Q,1.15A, INPAQ Technology Co., Ltd |
2,863 | - |
|
Datasheet |
WCI4532CP | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 150 nH | ±2% | 1.15 A | - | Unshielded | 110mOhm Max | 75 @ 50MHz | 860MHz | - | -25°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.195" L x 0.150" W (4.95mm x 3.81mm) | 0.135" (3.43mm) |
|
|
WCI4532CPR18GDGCHIP IND 4532,180NH,G,80Q,1.15A, INPAQ Technology Co., Ltd |
2,774 | - |
|
Datasheet |
WCI4532CP | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 180 nH | ±2% | 1.15 A | - | Unshielded | 110mOhm Max | 80 @ 50MHz | 850MHz | - | -25°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.195" L x 0.150" W (4.95mm x 3.81mm) | 0.135" (3.43mm) |
|
|
WCI4532CP1R2GDGCHIP IND 4532,1200NH,G,62Q,0.48A INPAQ Technology Co., Ltd |
2,750 | - |
|
Datasheet |
WCI4532CP | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.2 µH | ±2% | 480 mA | - | Unshielded | 1.2Ohm Max | 62 @ 50MHz | 230MHz | - | -25°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.195" L x 0.150" W (4.95mm x 3.81mm) | 0.135" (3.43mm) |
|
|
WCI4532CPR33GDGCHIP IND 4532,330NH,G,80Q,0.85A, INPAQ Technology Co., Ltd |
1,840 | - |
|
Datasheet |
WCI4532CP | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 330 nH | ±2% | 850 mA | - | Unshielded | 135mOhm Max | 80 @ 50MHz | 600MHz | - | -25°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.195" L x 0.150" W (4.95mm x 3.81mm) | 0.135" (3.43mm) |
|
AIP0630GX-6R8MPBDGPOWER INDUCTOR 7.7X6.5X3 6.8uh 2 INPAQ Technology Co., Ltd |
2,000 | 0.66 |
|
Datasheet |
AIP0630GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 5.2 A | 9.7A | Shielded | 44.5mOhm Max | - | 16.5MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
AIP0530GX-2R2MPBDGPOWER INDUCTOR 5.7X5.4X3 2.2UH 2 INPAQ Technology Co., Ltd |
3,936 | 0.53 |
|
Datasheet |
AIP0530GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 9.2 A | 9.2A | Shielded | 14.5mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
