Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA5448.103NLTFIXED IND 10UH 5.7A 58.7MOHM SMD |
1,461 | 0.10 |
|
Datasheet |
PA5448.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 5.7 A | 5.9A | Shielded | 58.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.118" (3.00mm) |
|
B82442T1124K000FIXED IND 120UH 440MA 1.29OHM SM |
1,080 | 0.12 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 440 mA | 900mA | Unshielded | 1.29Ohm Max | 20 @ 796kHz | 5.3MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
9230-24-RCFIXED IND 1.5UH 745MA 220MOHM TH |
1,000 | 0.14 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | 1.5 µH | ±10% | 745 mA | - | Unshielded | 220mOhm Max | 28 @ 7.9MHz | 140MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
BMMA001010402R2MX1INDUCTOR POWER |
978 | 0.10 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 12 A | 27A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
BMMA00101040100MX1INDUCTOR POWER |
930 | 0.10 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 6 A | 6A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
SRR0905-221KFIXED IND 220UH 470MA 780MOHM SM |
792 | 0.11 |
|
Datasheet |
SRR0905 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 470 mA | - | Shielded | 780mOhm Max | 27 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.390" Dia (9.90mm) | 0.189" (4.80mm) |
|
IHLP3232DZER5R6M5AFIXED IND 5.6UH 6.9A 31.67 MOHM |
697 | 0.17 |
|
Datasheet |
IHLP-3232DZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 6.9 A | 9A | Shielded | 31.67mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.322" L x 0.322" W (8.18mm x 8.18mm) | 0.157" (4.00mm) |
|
PM4341.103NLTFIXED IND 10UH 3.5A 85 MOHM SMD |
394 | 0.23 |
|
Datasheet |
PM4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 3.5 A | 6A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
B82442T1225K000FIXED IND 2.2MH 100MA 22.5OHM SM |
255 | 0.12 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 100 mA | 205mA | Unshielded | 22.5Ohm Max | 30 @ 252kHz | 1.2MHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

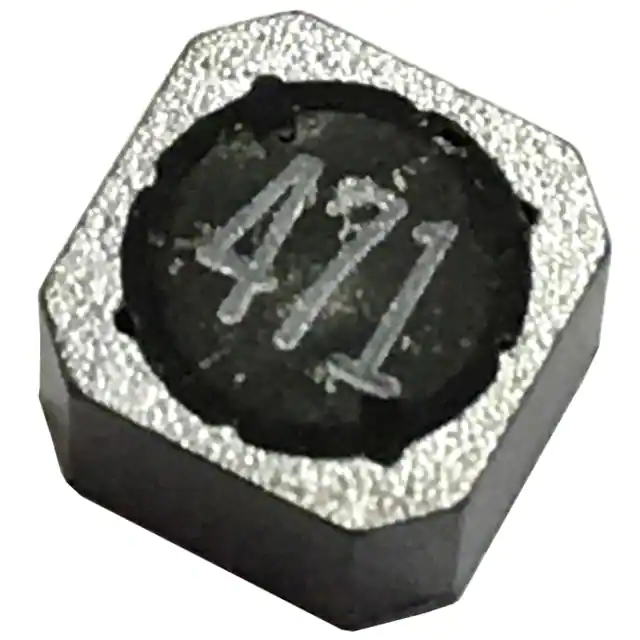

BPXX00050530222M00INDUCTOR POWER |
3,414 | 0.10 |
|
Datasheet |
BPXX | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 mH | ±20% | 150 mA | 80mA | Shielded | 11Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
PA4345.561NLTIND MOLDED POWDER 6.0X5. NPB |
3,000 | 0.10 |
|
Datasheet |
PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 10.7 A | 15A | Shielded | 11.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|
SRU8028A-6R8YFIXED IND 6.8UH 2.8A 45 MOHM SMD |
2,990 | 0.11 |
|
Datasheet |
SRU8028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.8 A | 2.5A | Shielded | 45mOhm Max | 13 @ 7.96MHz | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
|
BPXX00040418100M00INDUCTOR POWER |
1,999 | 0.10 |
|
Datasheet |
BPXX | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.15 A | 1.1A | Shielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRP6030WA-150MIND POWER HC 15UH 3.7A SHLD |
1,136 | - |
|
Datasheet |
SRP6030WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 3.7 A | 4A | Shielded | 110mOhm Max | 20 @ 100kHz | 11MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PM4341.252NLTFIXED IND 2.5UH 7A 22 MOHM SMD |
993 | 0.10 |
|
Datasheet |
PM4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.5 µH | ±20% | 7 A | 13A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
SRP6030WA-R47MIND POWER HC 0.47UH 19A SHLD |
985 | - |
|
Datasheet |
SRP6030WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 19 A | 19A | Shielded | 3.74mOhm Max | 15 @ 100kHz | 66MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PM4341.222NLTFIXED IND 2.2UH 8A 20 MOHM SMD |
977 | 0.10 |
|
Datasheet |
PM4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
SRP6030WA-6R8MIND POWER HC 6.8UH 5.2A SHLD |
972 | - |
|
Datasheet |
SRP6030WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 5.2 A | 6.1A | Shielded | 46.2mOhm Max | 20 @ 100kHz | 17MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6030WA-4R7MIND POWER HC 4.7UH 6.4A SHLD |
741 | - |
|
Datasheet |
SRP6030WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 6.4 A | 7.2A | Shielded | 32mOhm Max | 20 @ 100kHz | 20MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6030WA-1R5MIND POWER HC 1.5UH 11.5A SHLD |
532 | - |
|
Datasheet |
SRP6030WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 11.5 A | 13A | Shielded | 11.7mOhm Max | 15 @ 100kHz | 40MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
