Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWCS001610086N8J00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 700 mA | - | Unshielded | 110mOhm Max | 27 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
BWCM001107053N6CL8INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
BWCM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.6 nH | ±0.2nH | 1.95 A | - | Unshielded | 30mOhm Max | 30 @ 250MHz | 10GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.028" W (1.10mm x 0.70mm) | 0.024" (0.60mm) |
|
|
AWCS001610088N2J00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±5% | 700 mA | - | Unshielded | 109mOhm Max | 28 @ 250MHz | 4.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
AWCS0016100812NG00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±2% | 700 mA | - | Unshielded | 130mOhm Max | 35 @ 250MHz | 4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
AWCS001207076N8J00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
AWCS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 760 mA | - | Unshielded | 83mOhm Max | 20 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
AWCS0016100815NJ00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 700 mA | - | Unshielded | 170mOhm Max | 35 @ 250MHz | 4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|

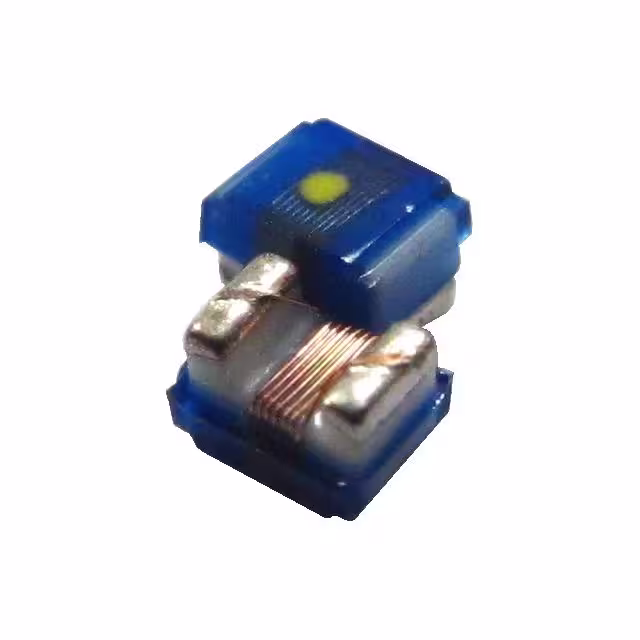

AWCS001207079N0J00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
AWCS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 9 nH | ±5% | 680 mA | - | Unshielded | 100mOhm Max | 22 @ 250MHz | 4.16GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
AWCS0016100810NJ00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 700 mA | - | Unshielded | 130mOhm Max | 31 @ 250MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
AWCS0016100822NJ00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 700 mA | - | Unshielded | 190mOhm Max | 38 @ 250MHz | 3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
AWCS0016100827NJ00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 600 mA | - | Unshielded | 220mOhm Max | 40 @ 250MHz | 2.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
AWCS0016100833NJ00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 600 mA | - | Unshielded | 220mOhm Max | 40 @ 250MHz | 2.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
AWCS0016100818NJ00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±5% | 700 mA | - | Unshielded | 170mOhm Max | 35 @ 250MHz | 3.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
AIMC-Q0603-1N5S-TIND 1.5NH 1A 100MOHM |
4,000 | - |
|
Datasheet |
AIMC-Q0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.5 nH | ±0.3nH | 1 A | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
AIMC-Q0603-2N7S-TIND 2.7NH 1A 130MOHM |
4,000 | - |
|
Datasheet |
AIMC-Q0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.7 nH | ±0.3nH | 1 A | - | Unshielded | 130mOhm Max | 10 @ 100MHz | 7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
AIMC-Q0603-1N8S-TIND 1.8NH 1A 100MOHM |
4,000 | - |
|
Datasheet |
AIMC-Q0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.8 nH | ±0.3nH | 1 A | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
AIMC-Q0603-5N6S-TIND 5.6NH 0.7A 230MOHM |
4,000 | - |
|
Datasheet |
AIMC-Q0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 5.6 nH | ±0.3nH | 700 mA | - | Unshielded | 230mOhm Max | 10 @ 100MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
AIMC-Q0603-3N3S-TIND 3.3NH 1A 130MOHM |
3,994 | - |
|
Datasheet |
AIMC-Q0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 nH | ±0.3nH | 1 A | - | Unshielded | 130mOhm Max | 10 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
AWCS001610083N6J00INDUCTOR RF |
3,990 | 0.01 |
|
Datasheet |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.6 nH | ±5% | 700 mA | - | Unshielded | 63mOhm Max | 22 @ 250MHz | 5.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
AIMC-Q0603-1N0S-TIND 1NH 1A 50MOHM |
3,990 | - |
|
Datasheet |
AIMC-Q0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1 nH | ±0.3nH | 1 A | - | Unshielded | 50mOhm Max | 8 @ 100MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
AWCS0016100868NJ00INDUCTOR RF |
3,986 | 0.01 |
|
Datasheet |
AWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 600 mA | - | Unshielded | 340mOhm Max | 37 @ 200MHz | 1.7GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
