Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
36550603S3N9T3655 0603 3N9 +/- 0.3NH T&R |
8,000 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 500 mA | - | Unshielded | 160mOhm Max | 10 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
36550603J8N2T3655 0603 8N2 5% T&R |
8,000 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 8.2 nH | ±5% | 500 mA | - | Unshielded | 350mOhm Max | 10 @ 100MHz | 4.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
36550603J15NT3655 0603 15N 5% T&R |
8,000 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±5% | 300 mA | - | Unshielded | 500mOhm Max | 12 @ 100MHz | 2.3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
36550603J18NT3655 0603 18N 5% T&R |
8,000 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 18 nH | ±5% | 300 mA | - | Unshielded | 550mOhm Max | 12 @ 100MHz | 2.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
36550603J68NT3655 0603 68N 5% T&R |
8,000 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 68 nH | ±5% | 300 mA | - | Unshielded | 850mOhm Max | 12 @ 100MHz | 900MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
36550603S3N3T3655 0603 3N3 +/- 0.3NH T&R |
8,000 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 nH | ±0.3nH | 500 mA | - | Unshielded | 150mOhm Max | 10 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
36550603S2N2T3655 0603 2N2 +/- 0.3NH T&R |
8,000 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.2 nH | ±0.3nH | 500 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
36550603J22NT3655 0603 22N 5% T&R |
8,000 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 22 nH | ±5% | 300 mA | - | Unshielded | 600mOhm Max | 12 @ 100MHz | 2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
36550603J7N5T3655 0603 7N5 5% T&R |
8,000 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 7.5 nH | ±5% | 500 mA | - | Unshielded | 350mOhm Max | 10 @ 100MHz | 4.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
36550603J12NT3655 0603 12N 5% T&R |
8,000 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 12 nH | ±5% | 300 mA | - | Unshielded | 450mOhm Max | 12 @ 100MHz | 3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
36550603S2N7T3655 0603 2N7 +/- 0.3NH T&R |
8,000 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.7 nH | ±0.3nH | 500 mA | - | Unshielded | 120mOhm Max | 10 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
36550603J82NT3655 0603 82N 5% T&R |
7,970 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 82 nH | ±5% | 300 mA | - | Unshielded | 1Ohm Max | 8 @ 100MHz | 800MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
36550603J10NT3655 0603 10N 5% T&R |
7,950 | - |
|
Datasheet |
3655 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±5% | 300 mA | - | Unshielded | 400mOhm Max | 12 @ 100MHz | 3.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
.jpg)
|
MLF1608E120KTD00FIXED IND 12UH 10MA 1.8 OHM SMD |
7,900 | 0.01 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 12 µH | ±10% | 10 mA | - | Shielded | 1.8Ohm Max | 30 @ 2MHz | 25MHz | - | -40°C ~ 85°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLF1608DR82KTA00FIXED IND 820NH 70MA 1.4 OHM SMD |
7,080 | 0.01 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 820 nH | ±10% | 70 mA | - | Shielded | 1.4Ohm Max | 15 @ 25MHz | 130MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW15AN4N0C10DFIXED IND 4NH 800MA 0.051OHM SMD |
6,322 | 0.01 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4 nH | ±0.2nH | 800 mA | - | Unshielded | 51mOhm Max | 30 @ 250MHz | 6.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
.jpg)
|
LQP02TQ1N0B02DFIXED IND 1NH 580MA 150 MOHM SMD |
4,975 | 0.01 |
|
Datasheet |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 1 nH | ±0.1nH | 580 mA | - | Unshielded | 150mOhm Max | 10 @ 500MHz | 16.6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|
CWF2414-4R7KIND,2.2X1.4X1.3MM,4.7UH10%,0.84A |
4,000 | 0.04 |
|
Datasheet |
CWF2414 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±10% | 840 mA | 520mA | Unshielded | 430mOhm | 14 @ 7.9MHz | 51MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.055" (1.40mm) |
|

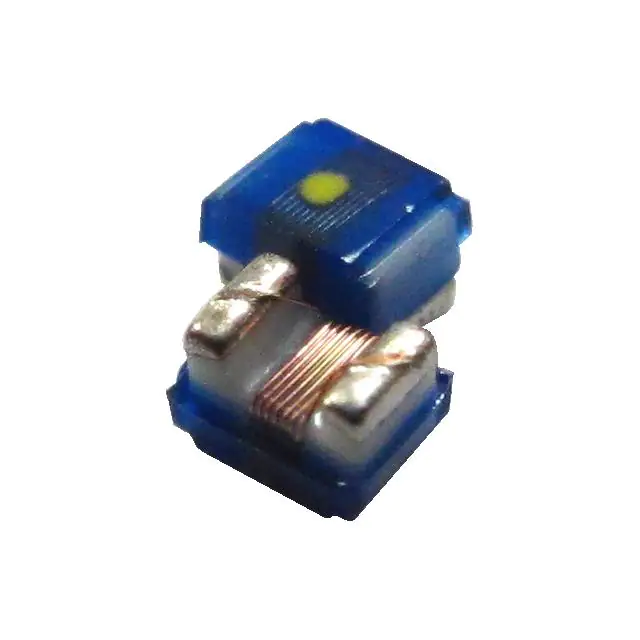

AWCS0012070733NJ00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
AWCS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 400 mA | - | Unshielded | 400mOhm Max | 24 @ 250MHz | 2.35GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
AWCS0012070727NJ00INDUCTOR RF |
4,000 | 0.01 |
|
Datasheet |
AWCS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 400 mA | - | Unshielded | 300mOhm Max | 24 @ 250MHz | 2.48GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
