FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

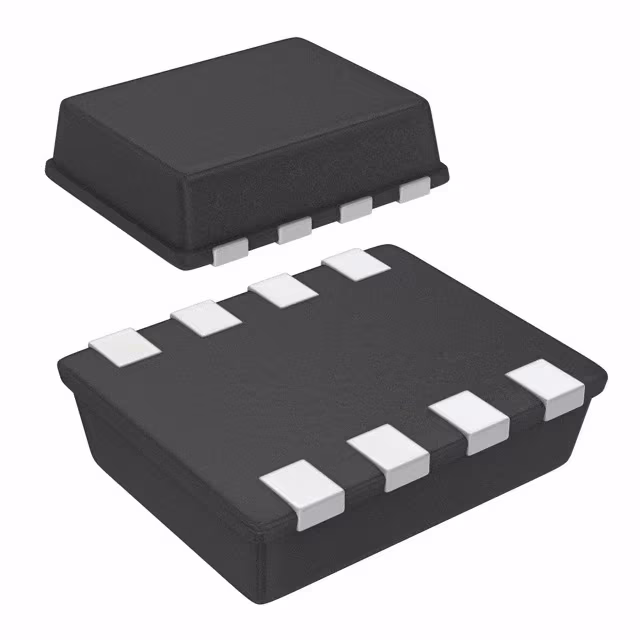

TPCP8103-H(TE85LFMMOSFET P-CH 40V 4.8A PS-8 Toshiba Semiconductor and Storage |
8,833 | - |
|
Datasheet |
U-MOSIII-H | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 4.8A (Ta) | 4.5V, 10V | 40mOhm @ 2.4A, 10V | 2V @ 1mA | 19 nC @ 10 V | ±20V | 800 pF @ 10 V | - | 840mW (Ta) | 150°C (TJ) | - | - | Surface Mount | PS-8 (2.9x2.4) |
|
SSM6K411TU(TE85L,FMOSFET N-CH 20V 10A UF6 Toshiba Semiconductor and Storage |
5,684 | - |
|
- |
U-MOSIV | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 10A (Ta) | 2.5V, 4.5V | 12mOhm @ 7A, 4.5V | 1.2V @ 1mA | 9.4 nC @ 4.5 V | ±12V | 710 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | UF6 |
|
TPCP8005-H(TE85L,FMOSFET N-CH 30V 11A PS-8 Toshiba Semiconductor and Storage |
9,259 | - |
|
Datasheet |
U-MOSV-H | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 12.9mOhm @ 5.5A, 10V | 2.5V @ 1mA | 20 nC @ 10 V | ±20V | 2150 pF @ 10 V | - | 840mW (Ta) | 150°C (TJ) | - | - | Surface Mount | PS-8 (2.9x2.4) |
|
SSM6J206FE(TE85L,FMOSFET P-CH 20V 2A ES6 Toshiba Semiconductor and Storage |
7,748 | - |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Ta) | 1.8V, 4V | 130mOhm @ 1A, 4V | 1V @ 1mA | - | ±8V | 335 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | - | - | Surface Mount | ES6 |
|
|
TPCP8004(TE85L,F)MOSFET N-CH 30V 8.3A PS-8 Toshiba Semiconductor and Storage |
6,807 | - |
|
Datasheet |
U-MOSIV | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 8.3A (Ta) | 4.5V, 10V | 8.5mOhm @ 4.2A, 10V | 2.5V @ 1mA | 26 nC @ 10 V | ±20V | 1270 pF @ 10 V | - | 840mW (Ta) | 150°C (TJ) | - | - | Surface Mount | PS-8 (2.9x2.4) |
|
TK50P03M1(T6RSS-Q)MOSFET N-CH 30V 50A DP Toshiba Semiconductor and Storage |
2,681 | - |
|
- |
U-MOSVI-H | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Ta) | 4.5V, 10V | 7.5mOhm @ 25A, 10V | 2.3V @ 200µA | 25.3 nC @ 10 V | ±20V | 1700 pF @ 10 V | - | 47W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
2SK2231(TE16R1,NQ)MOSFET N-CH 60V 5A PW-MOLD Toshiba Semiconductor and Storage |
7,096 | - |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 5A (Ta) | 4V, 10V | 160mOhm @ 2.5A, 10V | 2V @ 1mA | 12 nC @ 10 V | ±20V | 370 pF @ 10 V | - | 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | PW-MOLD |
|
|
TK50P04M1(T6RSS-Q)MOSFET N-CH 40V 50A DP Toshiba Semiconductor and Storage |
3,893 | - |
|
Datasheet |
U-MOSVI-H | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Ta) | 4.5V, 10V | 8.7mOhm @ 25A, 10V | 2.3V @ 500µA | 38 nC @ 10 V | ±20V | 2600 pF @ 10 V | - | 60W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
2SK3798(STA4,Q,M)POWER MOSFET TRANSISTOR TO-220(S Toshiba Semiconductor and Storage |
2,046 | 0.24 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 900 V | 4A (Ta) | 10V | 3.5Ohm @ 2A, 10V | 4V @ 1mA | 26 nC @ 10 V | ±30V | 800 pF @ 25 V | - | 40W (Tc) | 150°C | - | - | Through Hole | TO-220SIS |
|
TK8A45DA(STA4,Q,M)MOSFET N-CH 450V 7.5A TO220SIS Toshiba Semiconductor and Storage |
5,706 | 0.29 |
|
Datasheet |
π-MOSVII | TO-220-3 Full Pack | Tube | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 450 V | 7.5A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Through Hole | TO-220SIS |
