FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFH14N80PMOSFET N-CH 800V 14A TO247AD Littelfuse Inc. |
628 | 1.57 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 14A (Tc) | 10V | 720mOhm @ 500mA, 10V | 5.5V @ 4mA | 61 nC @ 10 V | ±30V | 3900 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
IXFH26N50P3MOSFET N-CH 500V 26A TO247AD Littelfuse Inc. |
392 | 1.57 |
|
Datasheet |
HiPerFET™, Polar3™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | 5V @ 4mA | 42 nC @ 10 V | ±30V | 2220 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
IXFH10N100PMOSFET N-CH 1000V 10A TO247AD Littelfuse Inc. |
580 | 1.58 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 10A (Tc) | 10V | 1.4Ohm @ 5A, 10V | 6.5V @ 1mA | 56 nC @ 10 V | ±30V | 3030 pF @ 25 V | - | 380W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
.jpg)
|
IXTH44P15TMOSFET P-CH 150V 44A TO247 Littelfuse Inc. |
285 | 1.59 |
|
Datasheet |
TrenchP™ | TO-247-3 | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 150 V | 44A (Tc) | 10V | 65mOhm @ 500mA, 10V | 4V @ 250µA | 175 nC @ 10 V | ±15V | 13400 pF @ 25 V | - | 298W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXFH230N075T2MOSFET N-CH 75V 230A TO247AD Littelfuse Inc. |
195 | 1.62 |
|
Datasheet |
HiPerFET™, TrenchT2™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 230A (Tc) | 10V | 4.2mOhm @ 50A, 10V | 4V @ 250µA | 178 nC @ 10 V | ±20V | 10500 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|

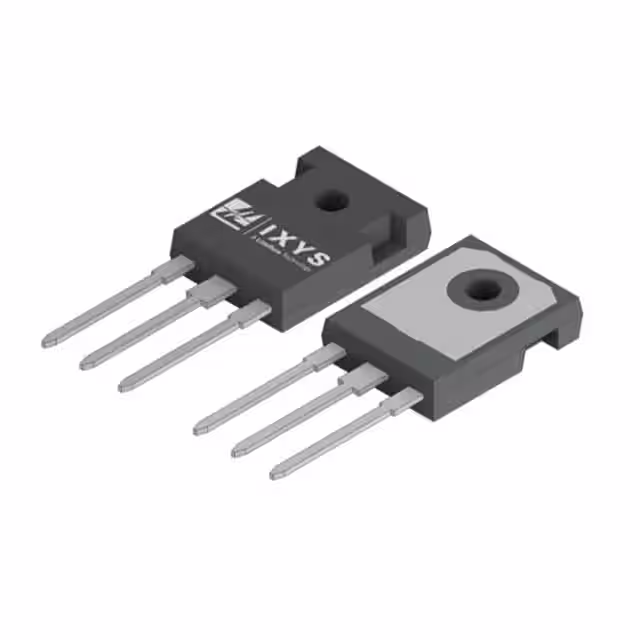

LSIC1MO170E0750SICFET N-CH 1700V 750OHM TO247-3 Littelfuse Inc. |
1,433 | 1.62 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1700 V | 6.2A (Tc) | 20V | 1Ohm @ 2A, 20V | 4V @ 1mA | 13 nC @ 20 V | +22V, -6V | 200 pF @ 1000 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AD |
|
IXTP120N20X4MOSFET Littelfuse Inc. |
600 | 1.68 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 120A (Tc) | 10V | 9.5mOhm @ 60A, 10V | 4.5V @ 250µA | 108 nC @ 10 V | ±20V | 6100 pF @ 25 V | - | 417W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 (IXTP) |
|
|
IXTH52P10PMOSFET P-CH 100V 52A TO247 Littelfuse Inc. |
356 | 1.66 |
|
Datasheet |
PolarP™ | TO-247-3 | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 52A (Tc) | 10V | 50mOhm @ 52A, 10V | 4.5V @ 250µA | 60 nC @ 10 V | ±20V | 2845 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXFH34N65X2MOSFET N-CH 650V 34A TO247 Littelfuse Inc. |
356 | 1.66 |
|
Datasheet |
HiPerFET™, Ultra X2 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 34A (Tc) | 10V | 105mOhm @ 17A, 10V | 5.5V @ 2.5mA | 56 nC @ 10 V | ±30V | 3330 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
IXFH36N60X3MOSFET ULTRA JCT 600V 36A TO247 Littelfuse Inc. |
128 | 1.67 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 36A (Tc) | 10V | 90mOhm @ 18A, 10V | 5V @ 2.5mA | 29 nC @ 10 V | ±20V | 2030 pF @ 25 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
