FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFP26N30X3MOSFET N-CH 300V 26A TO220AB Littelfuse Inc. |
461 | 0.92 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 26A (Tc) | 10V | 66mOhm @ 13A, 10V | 4.5V @ 500µA | 22 nC @ 10 V | ±20V | 1465 pF @ 25 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IXTP16N50PMOSFET N-CH 500V 16A TO220AB Littelfuse Inc. |
255 | 0.94 |
|
Datasheet |
Polar | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 400mOhm @ 8A, 10V | 5.5V @ 250µA | 43 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IXTP36N30PMOSFET N-CH 300V 36A TO220AB Littelfuse Inc. |
2,358 | 0.97 |
|
Datasheet |
PolarHT™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 36A (Tc) | 10V | 110mOhm @ 18A, 10V | 5.5V @ 250µA | 70 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IXTP42N25PMOSFET N-CH 250V 42A TO220AB Littelfuse Inc. |
730 | 0.97 |
|
Datasheet |
Polar | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 42A (Tc) | 10V | 84mOhm @ 500mA, 10V | 5.5V @ 250µA | 70 nC @ 10 V | ±20V | 2300 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IXFA26N30X3MOSFET N-CH 300V 26A TO263AA Littelfuse Inc. |
276 | 0.97 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 26A (Tc) | 10V | 66mOhm @ 13A, 10V | 4.5V @ 500µA | 22 nC @ 10 V | ±20V | 1465 pF @ 25 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA (IXFA) |
|
|
IXTP160N10TMOSFET N-CH 100V 160A TO220AB Littelfuse Inc. |
1,853 | 0.99 |
|
Datasheet |
Trench | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 160A (Tc) | 10V | 7mOhm @ 25A, 10V | 4.5V @ 250µA | 132 nC @ 10 V | ±30V | 6600 pF @ 25 V | - | 430W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IXTP50N25TMOSFET N-CH 250V 50A TO220AB Littelfuse Inc. |
518 | 1.08 |
|
Datasheet |
Trench | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 50A (Tc) | 10V | 50mOhm @ 25A, 10V | 5V @ 1mA | 78 nC @ 10 V | ±30V | 4000 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IXTQ50N20PMOSFET N-CH 200V 50A TO3P Littelfuse Inc. |
354 | 1.09 |
|
Datasheet |
Polar | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 50A (Tc) | 10V | 60mOhm @ 50A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±20V | 2720 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-3P |
|

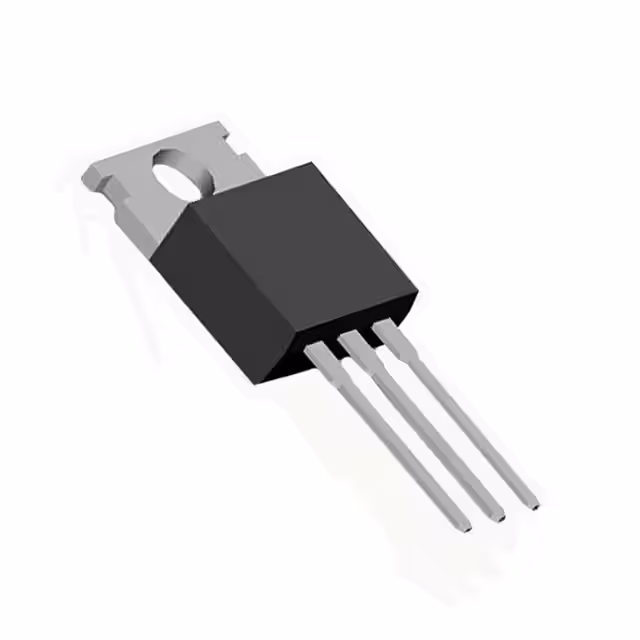

IXTP14N60X2MOSFET N-CH 600V 14A TO220 Littelfuse Inc. |
312 | 1.10 |
|
Datasheet |
Ultra X2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 14A (Tc) | 10V | 250mOhm @ 7A, 10V | 4.5V @ 250µA | 16.7 nC @ 10 V | ±30V | 740 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
IXFA130N10T2MOSFET N-CH 100V 130A TO263 Littelfuse Inc. |
251 | 1.10 |
|
Datasheet |
HiPerFET™, TrenchT2™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 130A (Tc) | 10V | 9.1mOhm @ 65A, 10V | 4.5V @ 1mA | 130 nC @ 10 V | ±20V | 6600 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA (IXFA) |
