FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJQ4411P_R2_0000120V P-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
4,931 | 0.14 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 13A (Ta), 60A (Tc) | 1.8V, 4.5V | 8mOhm @ 8A, 4.5V | 1V @ 250µA | 46.8 nC @ 4.5 V | ±12V | 4659 pF @ 15 V | - | 2W (Ta), 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333-8 |
|
|
PJQ4444P_R2_0000140V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
3,177 | 0.14 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 14A (Ta), 70A (Tc) | 4.5V, 10V | 5.5mOhm @ 20A, 10V | 2.5V @ 250µA | 25 nC @ 4.5 V | ±20V | 1258 pF @ 25 V | - | 2W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333-8 |
|
|
PJQ4401P_R2_0000130V P-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
1,482 | 0.14 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta), 50A (Tc) | 4.5V, 10V | 8.5mOhm @ 10A, 10V | 2.5V @ 250µA | 27 nC @ 4.5 V | ±20V | 3228 pF @ 15 V | - | 2W (Ta), 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333-8 |
|
PJQ2463A_R1_0000160V P-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
1,105 | 0.11 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 3.2A (Ta) | 4.5V, 10V | 105mOhm @ 3A, 10V | 2.5V @ 250µA | 10 nC @ 10 V | ±20V | 785 pF @ 30 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020B-6 |
|
|
PJQ4402P-AU_R2_000A130V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
4,661 | 0.14 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 70A (Tc) | 4.5V, 10V | 3.8mOhm @ 10A, 10V | 2.5V @ 250µA | 23 nC @ 4.5 V | ±20V | 2436 pF @ 25 V | - | 2W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN3333-8 |
|

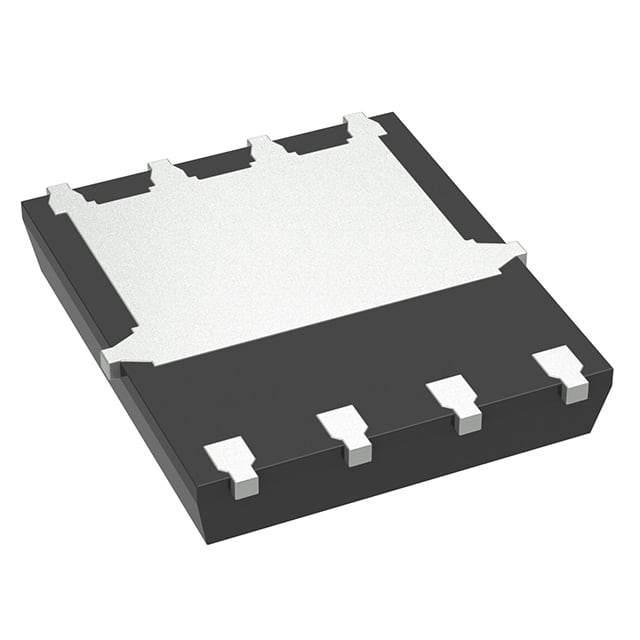

PJQ5424_R2_0000130V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
2,180 | 0.15 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13.5A (Ta), 100A (Tc) | 4.5V, 10V | 3.8mOhm @ 20A, 10V | 2.5V @ 250µA | 24 nC @ 4.5 V | ±20V | 2238 pF @ 25 V | - | 2W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN5060-8 |
|
PJD25N10A_L2_00001100V N-CHANNEL ENHANCEMENT MODE Panjit International Inc. |
2,603 | 0.16 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.4A (Ta), 25A (Tc) | 4.5V, 10V | 50mOhm @ 15A, 10V | 2.5V @ 250µA | 61 nC @ 10 V | ±20V | 3601 pF @ 15 V | - | 2W (Ta), 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
PJQ4464AP-AU_R2_000A160V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
3,149 | 0.17 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.3A (Ta), 33A (Tc) | 4.5V, 10V | 17mOhm @ 16A, 10V | 2.5V @ 250µA | 13.5 nC @ 4.5 V | ±20V | 1574 pF @ 25 V | - | 2.4W (Ta), 48W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN3333-8 |
|
|
PJD40N04-AU_L2_000A140V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
2,941 | 0.17 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 10A (Ta), 40A (Tc) | 4.5V, 10V | 12mOhm @ 20A, 10V | 2.5V @ 250µA | 10 nC @ 4.5 V | ±20V | 1040 pF @ 20 V | - | 2.4W (Ta), 43.2W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
|
PJD16P04-AU_L2_000A140V P-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
2,591 | 0.17 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 5A (Ta), 16A (Tc) | 4.5V, 10V | 45mOhm @ 10A, 10V | 2.5V @ 250µA | 8.3 nC @ 4.5 V | ±20V | 929 pF @ 15 V | - | 2W (Ta), 22W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
