FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJL9408_R2_0000130V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
2,384 | 0.10 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Ta) | 4.5V, 10V | 18mOhm @ 8A, 10V | 2.5V @ 250µA | 4.3 nC @ 4.5 V | ±20V | 392 pF @ 25 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|

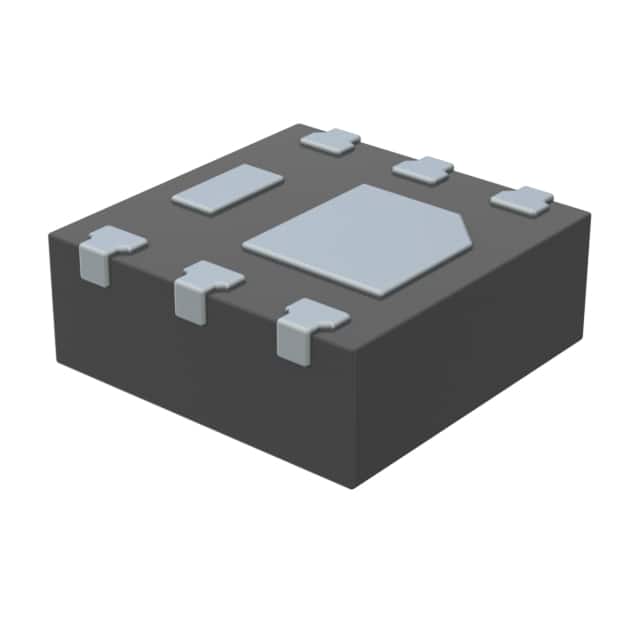

PJQ2409_R1_00001DFN2020B-6L, MOSFET Panjit International Inc. |
2,942 | 0.11 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 6.5A (Ta) | 4.5V, 10V | 30mOhm @ 4A, 10V | 2.5V @ 250µA | 7.8 nC @ 4.5 V | ±20V | 870 pF @ 15 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020B-6 |
|
PJQ4408P_R2_0000130V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
4,869 | 0.11 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta), 42A (Tc) | 4.5V, 10V | 9mOhm @ 16A, 10V | 2.5V @ 250µA | 7.1 nC @ 4.5 V | ±20V | 763 pF @ 25 V | - | 2W (Ta), 35W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333-8 |
|
|
PJQ4408P-AU_R2_000A130V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
4,800 | 0.12 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta), 42A (Tc) | 4.5V, 10V | 9mOhm @ 16A, 10V | 2.5V @ 250µA | 7.1 nC @ 4.5 V | ±20V | 763 pF @ 25 V | - | 2W (Ta), 35W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN3333-8 |
|
|
PJQ4404P_R2_0000130V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
4,998 | 0.12 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta), 60A (Tc) | 4.5V, 10V | 6mOhm @ 10A, 10V | 2.5V @ 250µA | 12 nC @ 4.5 V | ±20V | 1323 pF @ 25 V | - | 2W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333-8 |
|
|
PJQ4448P-AU_R2_000A140V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
4,790 | 0.12 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 10A (Ta), 42A (Tc) | 4.5V, 10V | 11mOhm @ 8A, 10V | 2.5V @ 250µA | 10 nC @ 4.5 V | ±20V | 1040 pF @ 20 V | - | 2.4W (Ta), 42W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN3333-8 |
|
|
PJL9414_R2_0000130V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
2,317 | 0.12 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta) | 4.5V, 10V | 6mOhm @ 10A, 10V | 2.5V @ 250µA | 12 nC @ 4.5 V | ±20V | 1323 pF @ 25 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
PJD14P06A_L2_0000160V P-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
2,865 | 0.13 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 3.2A (Ta), 14A (Tc) | 4.5V, 10V | 110mOhm @ 6A, 10V | 2.5V @ 250µA | 10 nC @ 10 V | ±20V | 785 pF @ 30 V | - | 3.2W (Ta), 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
PJD35N06A_L2_0000160V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
2,564 | 0.13 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 4.7A (Ta), 35A (Tc) | 4.5V, 10V | 21mOhm @ 20A, 10V | 2.5V @ 250µA | 28 nC @ 10 V | ±20V | 1680 pF @ 20 V | - | 1.1W (Ta), 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
PJL9436A_R2_0000160V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
2,370 | 0.13 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.5A (Ta) | 4.5V, 10V | 21mOhm @ 7.5A, 10V | 2.5V @ 250µA | 28 nC @ 10 V | ±20V | 1680 pF @ 20 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
